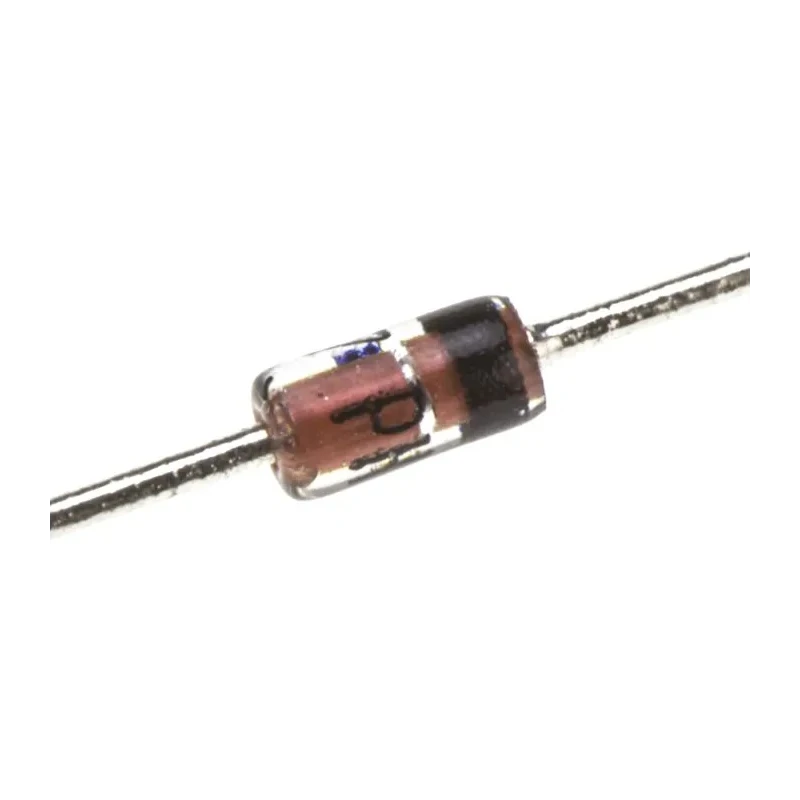

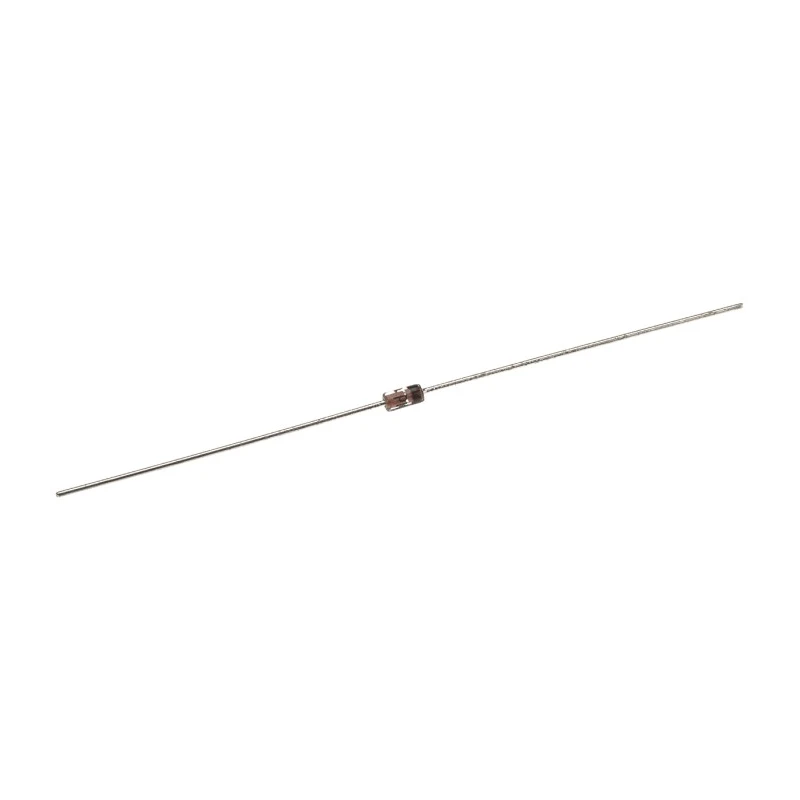

Nexperia 4.7 V 500 mW Through Hole 2-Pin SOD-27 Zener Diode BZX79-C4V7,113

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 4.7 V 500 mW Through Hole 2-Pin SOD-27 Zener Diode BZX79-C4V7,113

Name: Nexperia 4.7 V 500 mW Through Hole 2-Pin SOD-27 Zener Diode BZX79-C4V7,113
Brand: Nexperia
SKU: 196832
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.85mm
Length	4.25mm
Model	BZX79-C4V7,113
Mount Type	Through Hole
Series	BZX79
Maximum Operating Temperature	200°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	3μA
Nominal Zener Voltage Vz	4.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	80Ω
Typical Voltage Temperature Coefficient	-1.4mV/°C
onsemi 1, 4.7 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand	onsemi

Key Features

This diode has a nominal Zener voltage of 4.7 V with a tolerance of ±5%.
It supports a maximum power dissipation of 500 mW.
The diode features a maximum reverse leakage current of 3 μA ensuring minimal leakage.
The maximum Zener impedance is 80 ohms providing voltage regulation capability.
The operating temperature ranges from -65°C to 200°C suitable for harsh conditions.
It has a test current of 5 mA and typical voltage temperature coefficient of -1.4 mV/°C.
Constructed in a compact SOD-27 package with dimensions of 1.85 mm height and 4.25 mm length.
Designed for industrial and electronic circuit voltage regulation applications.

Product Description

Nexperia BZX79-C4V7,113 is a 4.7 V Zener Diode designed for voltage regulation in electronic circuits. It is housed in a through hole 2-pin SOD-27 package with a maximum power dissipation of 500 mW, making it suitable for low-power regulation tasks.

The diode features a nominal Zener voltage of 4.7 V with a tolerance of 5%, and a test current rating of 5 mA. It delivers reliable voltage regulation with a maximum Zener impedance of 80 ohms and a maximum reverse leakage current of just 3 μA, making it efficient in maintaining voltage stability.

Operating temperature range is from -65°C to 200°C, allowing use in harsh environmental conditions typical in industrial and laboratory settings. Its typical voltage temperature coefficient is -1.4 mV/°C, indicating predictable voltage changes with temperature shifts.

The compact SOD-27 package has a height of 1.85 mm and length of 4.25 mm, allowing flexible PCB mounting options. This diode is ideal for use in power supply circuits, voltage reference designs, and other electronic applications requiring a stable voltage regulator.

Nominal 4.7 V Zener voltage with ±5% tolerance. Maximum power dissipation: 500 mW. Maximum reverse leakage current: 3 μA. Maximum Zener impedance: 80 Ω. Operating temperature range: -65°C to 200°C. Test current: 5 mA. Voltage temperature coefficient: -1.4 mV/°C.

Compact SOD-27 2-pin through hole package.

This product is extensively used in semiconductor electronics, including industrial and laboratory voltage regulation applications. Its reliable performance guarantees stable voltage under variable thermal conditions, fitting well in construction of power supply units, test equipment, and automation electronics.
