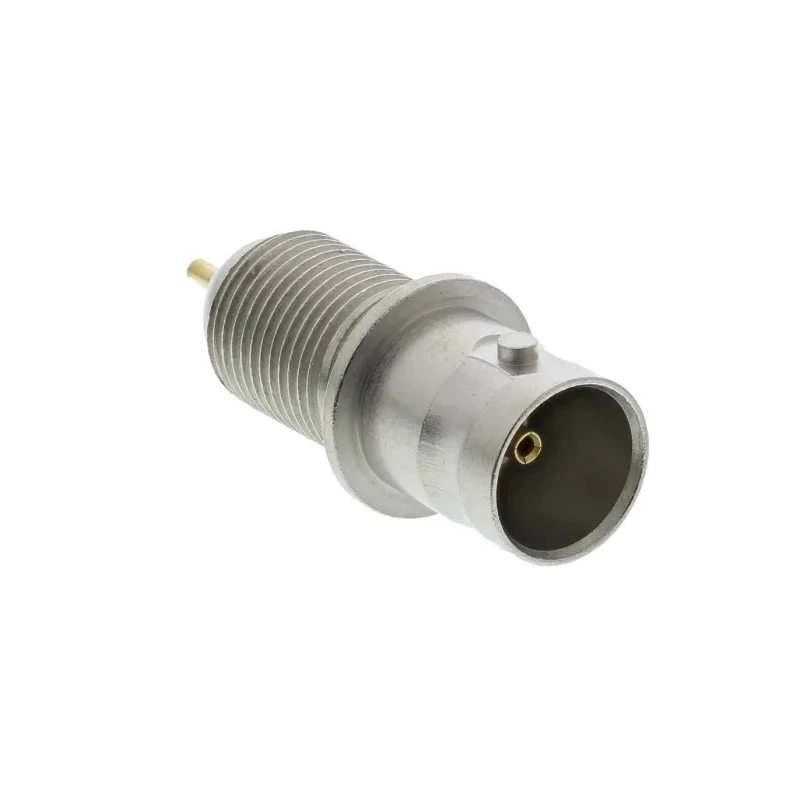

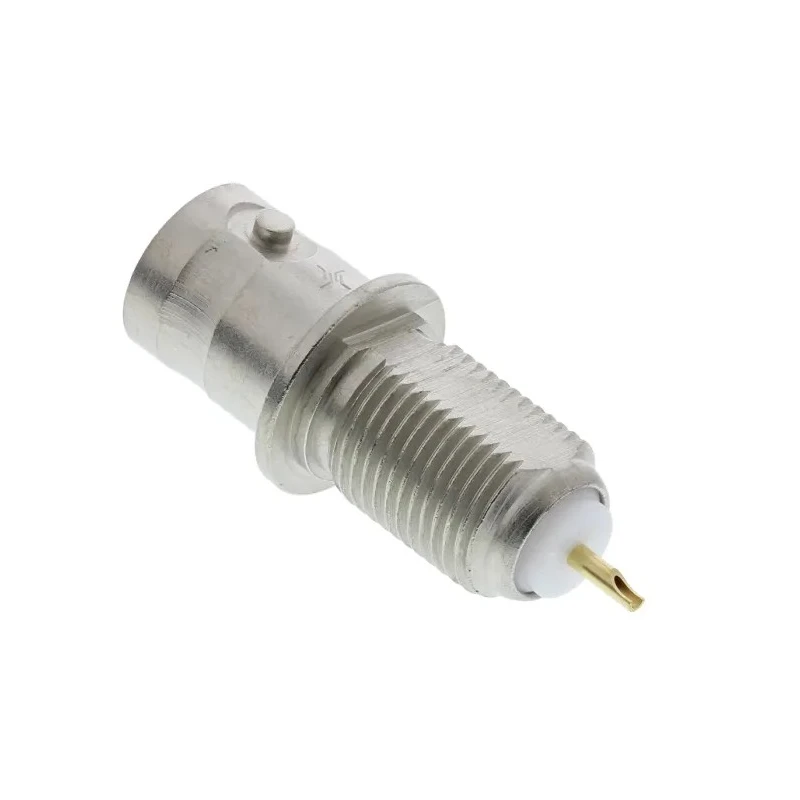

Telegartner BNC Series Coaxial Connector Panel Mount Female 75 Ω Straight Body Solder J01003A1286
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01003A1286 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Operates reliably up to 4 GHz frequency.
- Features gold-plated beryllium copper female contacts for excellent conductivity.
- Incorporates nickel-plated body for enhanced durability.
- IP54 rated between mated plug and jack to resist dust and water ingress.
- Temperature operating range from -65°C to 165°C.
- Utilizes PTFE insulator for stable electrical performance.
- Designed with simple quarter-turn bayonet coupling mechanism.
- Compatible with standard size bulkhead mounting installation.
Product Description
Telegartner J01003A1286 BNC Series Coaxial Connector is a high-quality panel mount female coaxial connector with 75 Ω impedance and a straight solder termination body, suitable for a wide range of electronic applications.
This connector features gold-plated beryllium copper female contacts and a robust nickel-plated body, ensuring excellent electrical conductivity and mechanical durability. The PTFE insulator provides stable signal isolation. Designed to operate confidently at frequencies up to 4 GHz and temperatures from -65°C to 165°C, it meets rigorous industrial standards.
The simple quarter-turn bayonet coupling mechanism allows for quick and reliable connection and disconnection, while the IP54 rating between mated plug and jack offers protection against dust and water, increasing operational reliability in demanding environments.
Its standard size and bulkhead mount design facilitate easy integration into various panels and equipment for signal, data, and video transmission, widely used in industrial, telecommunications, laboratory, and electronic manufacturing sectors.
Operates reliably up to 4 GHz frequency. Gold-plated beryllium copper female contacts ensure low contact resistance. Nickel-plated body enhances corrosion resistance and mechanical strength. PTFE insulator maintains signal integrity across temperature variations.
Quarter-turn bayonet coupling enables quick connect/disconnect. IP54 dust and water ingress rating between mated components. Standard bulkhead mounting for secure panel integration. Wide temperature range (-65°C to 165°C) supports harsh environments.
Applications include signal, data, and video transmission systems. Manufactured in Germany ensuring premium quality and reliability.
This product is an essential connector solution for electronic component assemblies requiring reliable high-frequency performance and robust mechanical properties. Browse related Coaxial Connectors and accessories on EnvMart for your professional electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telegartner BNC Series Coaxial Connector operates reliably at frequencies up to 4 GHz.
This connector features a solder termination type for secure and reliable connections.
The impedance of this connector is 75 Ω, making it suitable for various electronic applications.
It operates within a temperature range of -65°C to 165°C, allowing it to function in harsh environments.
The connector features gold-plated beryllium copper female contacts and a nickel-plated body for enhanced durability and conductivity.
This model is designed for panel mount installation, facilitating easy integration into various panels and equipment.
It utilizes a PTFE insulator, which provides stable electrical performance and signal integrity.
The connector features female contacts, designed for compatibility with male counterparts.
Yes, it has an IP54 rating between mated plug and jack, providing resistance against dust and water ingress.
This connector is designed with a simple quarter-turn bayonet coupling mechanism for quick and reliable connection and disconnection.
This product is manufactured in Germany, ensuring premium quality and reliability.
It is suitable for signal, data, and video transmission systems across various industrial and telecommunications applications.
