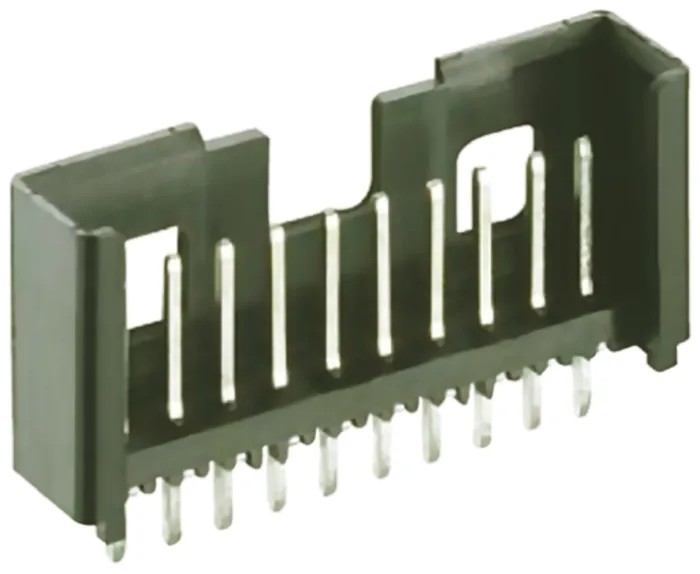

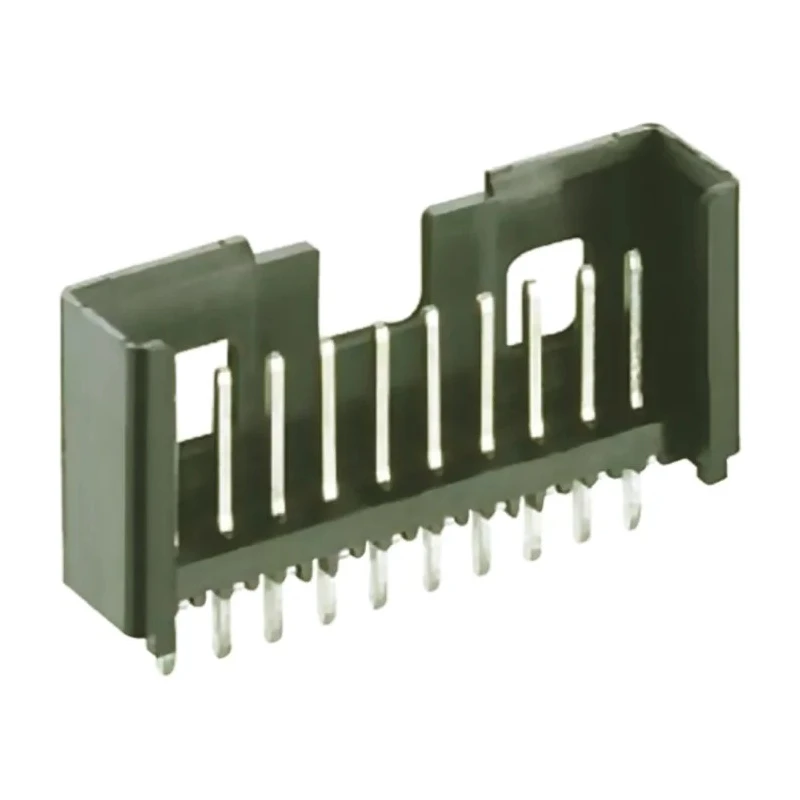

Lumberg Minimodul Series Straight Through Hole PCB Header, 14 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSF/O 14

Lumberg 2,5 MSF/O 14 Minimodul Series Straight Through Hole PCB Header is a reliable and high-performance connector designed for wire-to-board applications requiring precise spacing and secure connections. Featuring 14 male contacts arranged in a single row with a 2.5 mm pitch, this shrouded header ensures electrical safety and mechanical protection.

The header is manufactured using a glass filled polyamide housing for exceptional durability and resistance to mechanical stress. The brass contacts are plated with tin to deliver consistent conductivity and resist corrosion over extended operating periods. Its solder termination ensures strong attachment to printed circuit boards.

Engineered to operate in temperature ranges from -40°C up to 120°C, this connector is suitable for a variety of industrial and electronic assembly uses. It supports a current rating of 5 amperes and a voltage limit of 160 volts, making it ideal for moderate-power applications.

Compliance with international standards such as DIN EN 60664, IEC 60664, IEC 60335-1, and IEC 60695-2-11 guarantees this product meets rigorous safety and performance benchmarks required in electronics manufacturing, laboratory equipment, and industrial control systems.

This Minimodul Vertical Header mates perfectly with the 3114 Series crimp contact housings, facilitating easy harnessing of single leads and flat cables with established crimp technology. The design accommodates low to medium volume production environments where signal and low load current connections are crucial.

Constructed with glass filled polyamide housing for durability. Features brass contacts plated with tin for reliable electrical connections. Designed for operating temperatures ranging from -40°C to 120°C. Supports a current rating of 5 A and voltage of 160 V for moderate load applications.

Shrouded and male contact gender for enhanced safety and compatibility. Single row layout with 14 contacts spaced at 2.5 mm pitch. Solder termination type suitable for secure PCB mounting. Conforms to DIN EN 60664/IEC 60664, IEC 60335-1, IEC 60695-2-11 standards for safety and quality.

This PCB Header is widely used in electronics manufacturing, industrial control, power supply connections, and communication equipment. Its design supports efficient assembly processes and reliable long-term operation.
