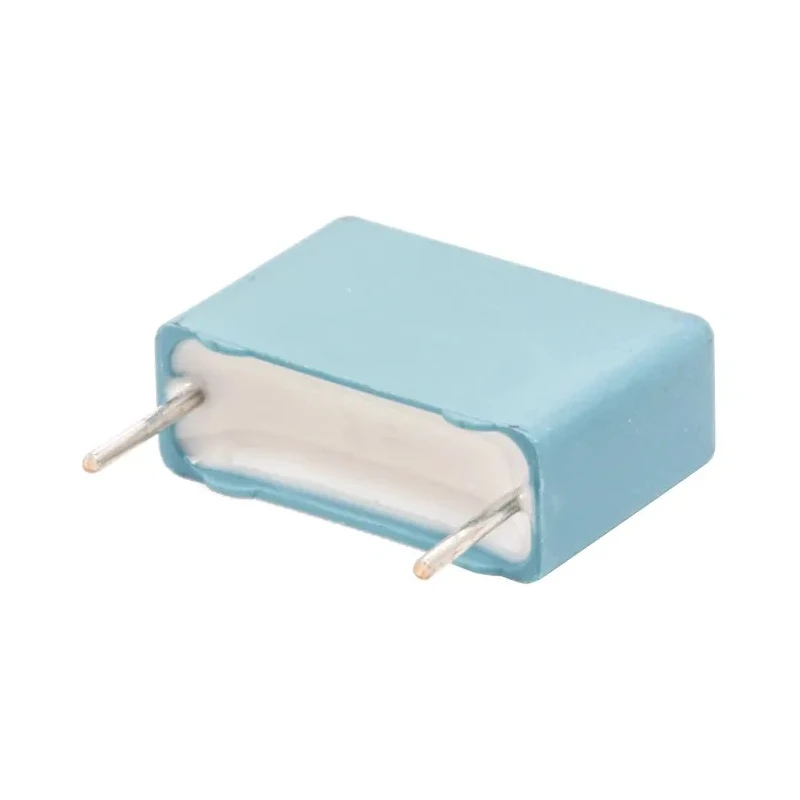

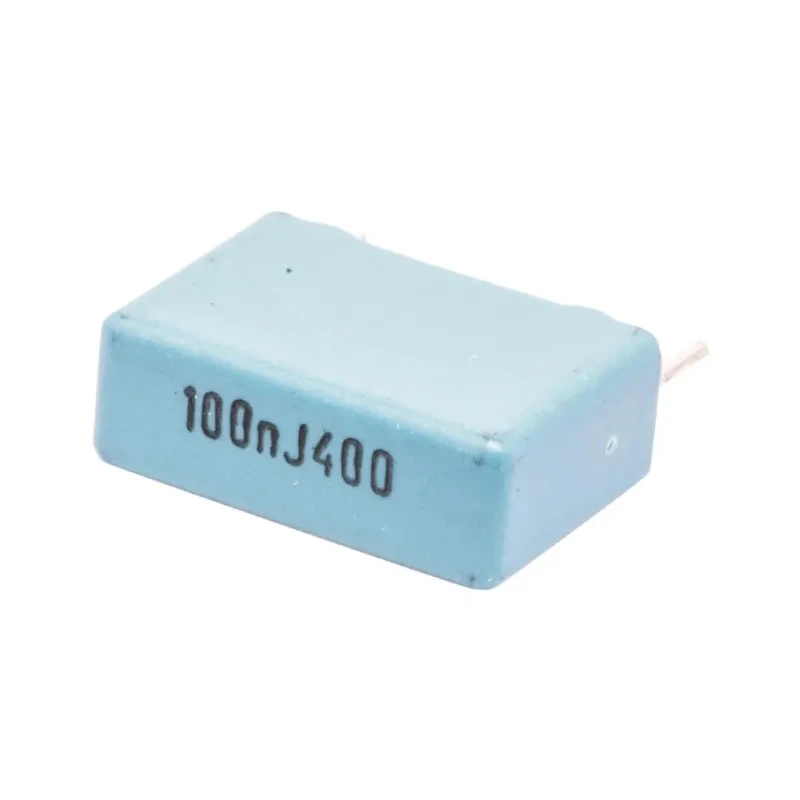

KEMET Film Capacitor Through Hole Radial 100 nF ±5% 400 V dc 180 V ac PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor Through Hole Radial 100 nF ±5% 400 V dc 180 V ac PHE450

Name: KEMET Film Capacitor Through Hole Radial 100 nF ±5% 400 V dc 180 V ac PHE450
Brand: KEMET
SKU: 196784
Price: 1.02 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	12.5mm
Length	18mm
Model	PHE450
Packaging	Tape & Reel
Width	6.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	400V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm
Capacitor, polypropylene, pulse, 400Vdc, 0.1uFBrand	Evox-Rifa

Key Features

Constructed as double metallized polypropylene film pulse capacitor for high current stress applications.
Encapsulated in self-extinguishing resin meeting UL 94 V-0 standards for safety.
Lead pitch is 15 mm with radial leads 0.8 mm in diameter and 6 mm in length.
Capable of operating within temperature range from -55°C to 105°C.
Typical applications include protection circuits in switch mode power supplies and television deflection circuits.
RoHS compliant, ensuring environmentally safe manufacturing standards.
Provided in tape and reel packaging to support automated assembly processes.
Designed for pulse and snubber circuit uses with very low dissipation factor of 0.0003%.

Product Description

KEMET PHE450 film capacitor (Model: PHE450) is a metallized polypropylene film capacitor featuring a capacitance of 100 nF with ±5% tolerance, rated for 400 V dc and 180 V ac. This through hole radial lead component is designed to withstand high current stresses typical in snubber circuits, pulse circuits, and protection circuits found in switch mode power supplies and television deflection circuits.

The capacitor is encapsulated in a self-extinguishing resin conforming to UL 94 V-0 requirements, providing enhanced safety and reliability. The radial leads have a pitch of 15 mm, diameter 0.8 mm, and length of 6 mm, facilitating through-hole mounting on printed circuit boards.

Operating temperature ranges from -55°C to a maximum of 105°C, making it suitable for demanding industrial and consumer electronics applications. The device exhibits a very low dissipation factor of 0.0003%, minimizing energy loss during operation. It is RoHS compliant, ensuring adherence to environmental directives.

Packaging is supplied on tape and reel, supporting automated manufacturing and assembly lines. Dimensions measure approximately 18 mm in length, 6.5 mm in width, and 12.5 mm in height.

Typical use cases include pulse circuits, snubber circuits, and protection circuits in power electronics and television circuitry. The PHE450 series capacitors are optimized for applications requiring high current pulse handling capability.

Constructed as double metallized polypropylene film pulse capacitor for high current stress applications. Encapsulated in self-extinguishing material meeting UL94V-0 standards. Rated voltage from 250 V dc up to 3000 V dc and 180 to 1000 V ac.

Radial lead mounting with 15 mm lead pitch. Operating temperature from -55°C to 105°C. Low dissipation factor of 0.0003% improves efficiency and reduces losses. Compliant with RoHS environmental standards. Supplied in tape and reel packaging for ease of assembly.

Used in industrial, electronic components manufacturing, power supplies, and HVAC electronics. Explore the extensive range of Film Capacitors at EnvMart for industrial and electronic circuit applications.
