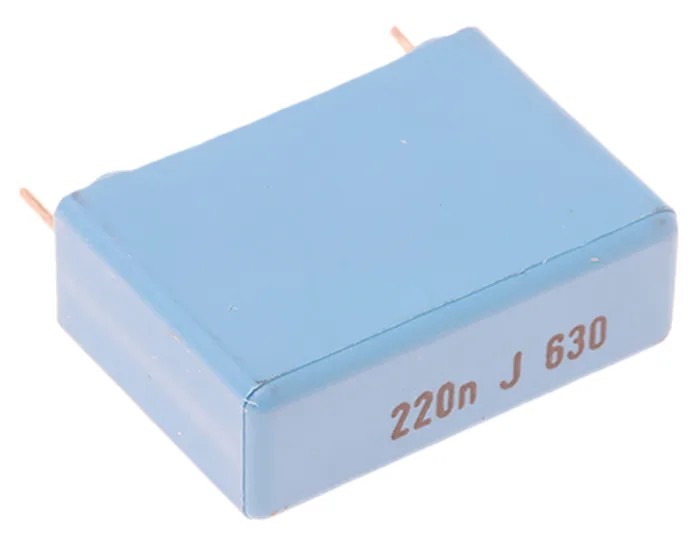

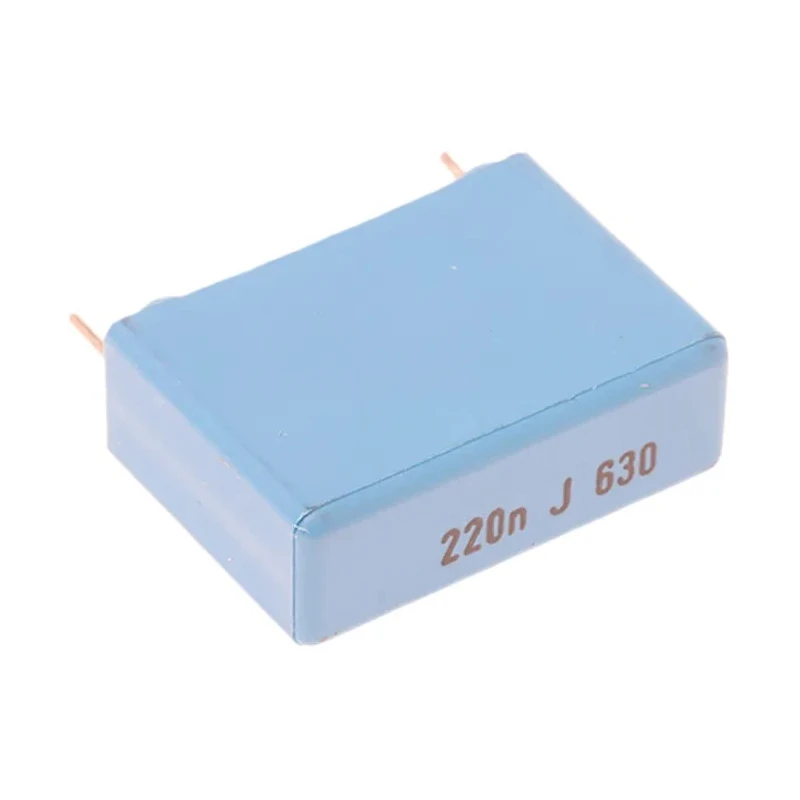

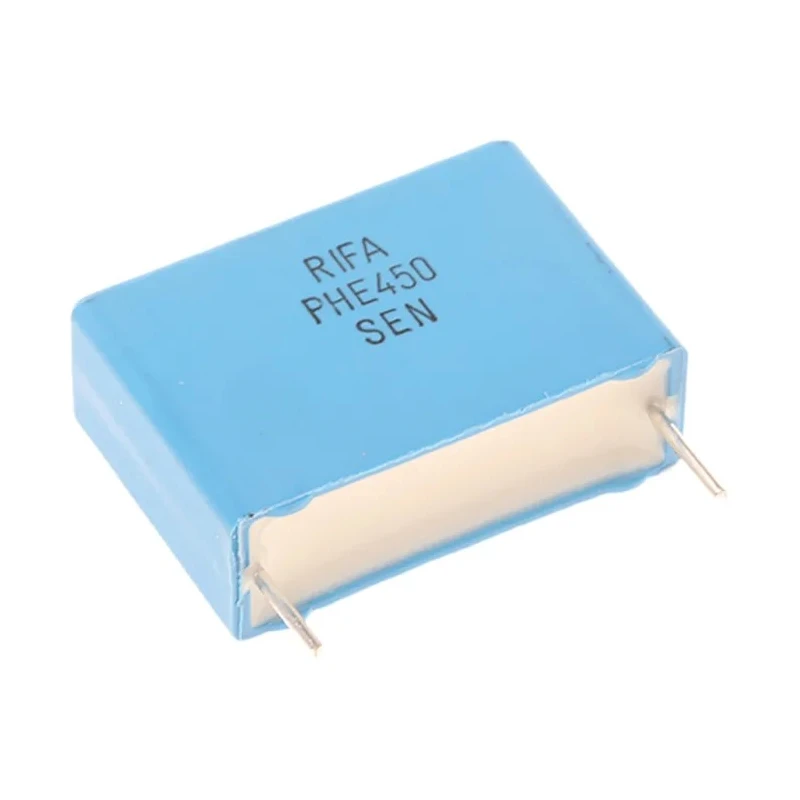

KEMET PHE450 Film Capacitor ±5% 220 nF 630 V DC 180 V AC Through Hole Radial 105°C PHE450
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 18.5mm |
| Length | 26mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Encapsulated in self-extinguishing UL 94 V-0 compliant resin for enhanced safety.
- Constructed with double metallized polypropylene film suitable for high current stress applications.
- Rated for operation from -55°C up to 105°C, ensuring durable performance in demanding environments.
- Features radial terminal type with a pin count of 2 and lead pitch of 22.5 mm.
- Ideal for protection circuits in switch-mode power supplies and deflection circuits in televisions.
- Available in tape & reel packaging for automated assembly efficiency.
Product Description
KEMET PHE450 Film Capacitor PHE450 is a metallized polypropylene capacitor designed for industrial and electronic applications requiring high reliability and performance. It features a capacitance of 220 nF with a tight tolerance of ±5%, operating at a rated DC voltage of 630 V and an AC voltage of 180 V.
Encapsulated in a self-extinguishing resin box that meets UL 94 V-0 standards, this capacitor is constructed for safety and endurance under high current stress conditions. The double metallized polypropylene film construction provides excellent pulse capabilities, making it suitable for use in snubber, pulse, and protection circuits often found in switch-mode power supplies and TV deflection circuits.
The capacitor uses through-hole mounting with radial leads that have a 22.5 mm pitch and 0.8 mm diameter, facilitating easy PCB assembly and mechanical stability. Its temperature range spans from -55°C to 105°C, making it suitable for operation in challenging environments.
Additional features include a low dissipation factor of 0.0003% for minimized losses, and its packaging in tape & reel format supports automated production lines. Encapsulation in UL 94 V-0 compliant self-extinguishing resin ensures safety and durability.
Double metallized polypropylene film structure offers superb pulse handling capabilities. Designed for industrial applications including power supplies, audio-visual equipment, and other high-stress electronic circuits. Rated for 630 V DC and 180 V AC operation with ±5% capacitance tolerance.
Radial through-hole mounting with 2 pins on 22.5 mm spaced leads. Operating temperature range from -55°C to 105°C supports diverse environments.
This capacitor is categorized under Film Capacitors in the Electronics Components category, engineered for demanding industrial and commercial electronic applications. It is an essential component for engineers and manufacturing requiring high-performance Film Capacitors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 220 nF with a tolerance of ±5%.
It is rated for a DC voltage of 630 V and an AC voltage of 180 V.
The operating temperature range is from -55°C to 105°C.
This model features through-hole mounting with radial leads.
The dimensions are 26 mm in length, 9 mm in width, and 18.5 mm in height.
The lead pitch for the radial terminals is 22.5 mm.
The dissipation factor is 0.0003%, which helps minimize losses.
It is available in tape & reel packaging, which supports automated assembly.
This model complies with RoHS standards.
It is commonly used in protection circuits for switch-mode power supplies and deflection circuits in televisions.
The capacitor has a pin count of 2.
It is constructed with double metallized polypropylene film, suitable for high current stress applications.
