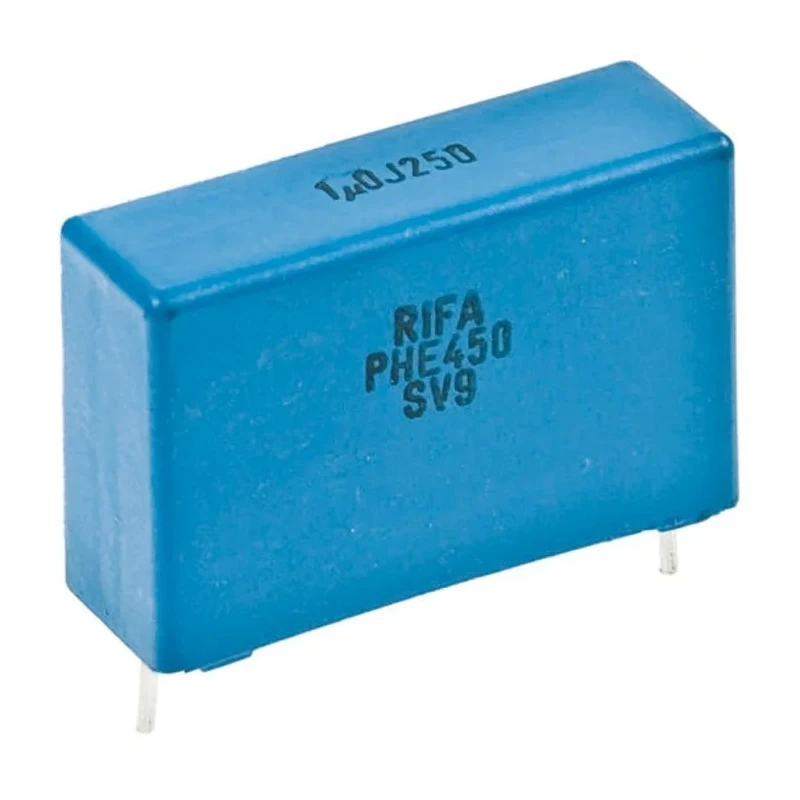

KEMET PHE450 Film Capacitor ±5% 47nF 400V dc 180V ac Through Hole Radial PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET PHE450 Film Capacitor ±5% 47nF 400V dc 180V ac Through Hole Radial PHE450

Name: KEMET PHE450 Film Capacitor ±5% 47nF 400V dc 180V ac Through Hole Radial PHE450
Brand: KEMET
SKU: 196776
Price: 0.6 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Finland
Brand	KEMET
Height	10.5mm
Length	18mm
Model	PHE450
Packaging	Tape & Reel
Width	5.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	47nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	400V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

Constructed with double metallized polypropylene film ensuring high pulse performance.
Features radial terminal type with 15mm lead pitch for through-hole PCB mounting.
Encapsulated in self-extinguishing resin material compliant with UL 94 V-0 standards.
Rated operating temperature range from -55°C to 105°C, suitable for harsh environments.
Capacitance tolerance of ±5% provides reliable and stable performance.
Ideal for use in snubber circuits, pulse protection, and switch mode power supplies.
Leads measure 6mm in length with 0.8mm diameter for robust electrical connection.
Comes in tape and reel packaging to facilitate automated PCB assembly.

Product Description

The KEMET PHE450 Film Capacitor, model PHE450, is a high-quality metallized polypropylene capacitor designed for demanding electronic applications requiring stable capacitance and high reliability. With a capacitance of 47nF and tolerance of ±5%, this capacitor operates at a rated DC voltage of 400 V and an AC voltage of 180 V, making it suitable for circuits experiencing pulse and snubber stresses.

Its through-hole radial mounting style with a 15mm lead pitch and terminal diameter of 0.8mm ensures secure PCB mounting and durable electrical connections. Encapsulated in a self-extinguishing box made of UL 94 V-0 compliant material, it provides excellent safety and enhances durability in industrial environments.

The capacitor supports a wide operating temperature range from -55°C to 105°C, making it reliable in diverse working conditions found in power supplies, televisions, and industrial electronic devices. The dissipation factor is very low at 0.0003%, ensuring minimal energy loss.

This product is packaged in tape and reel format, aiding efficient automated assembly processes. The compact physical dimensions (length 18mm, width 5.5mm, height 10.5mm) allow integration in space-constrained designs. Manufactured in Finland, the KEMET PHE450 complies with RoHS standards for environmental safety.

Double metallized polypropylene film pulse capacitor construction for durability and performance. Rated for DC voltages from 250 V to 3000 V and AC voltages from 180 V to 1000 V across the series. Encapsulation in UL 94 V-0 self-extinguishing resin for enhanced safety.

Suitable for high current stress applications such as protection circuits in switched-mode power supplies and deflection circuits in televisions. Offers ±5% capacitance tolerance with other tolerances available upon request.

Radial lead design with lead spacing from 7.5 mm to 37.5 mm to fit various PCB layouts.
