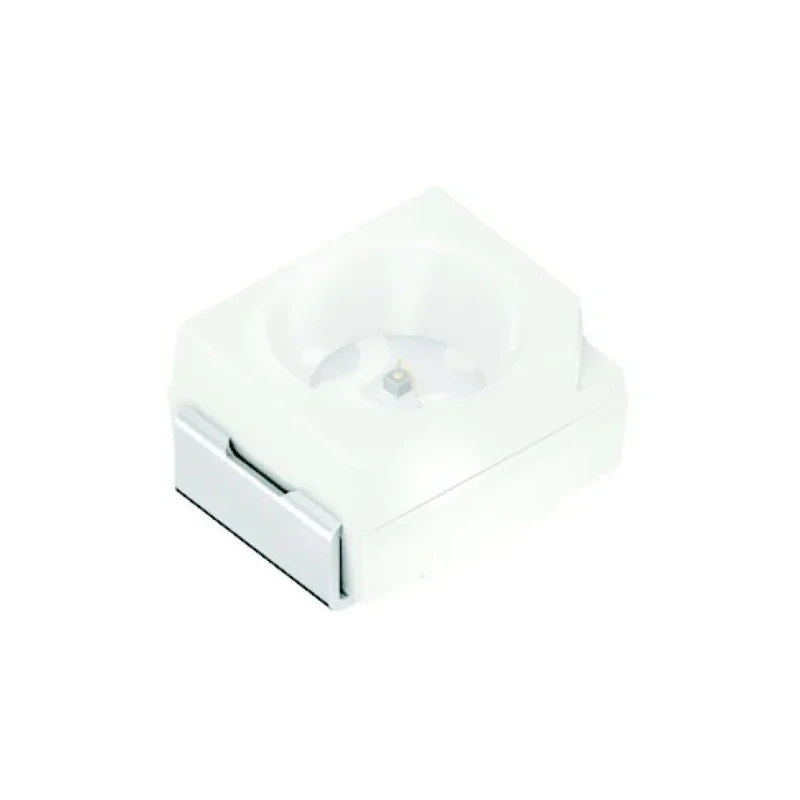

ams OSRAM TOPLED 860 nm IR LED PLCC 2 Surface Mount Package SFH 4253-R

The ams OSRAM SFH 4253-R is a high-performance IR LED from the TOPLED series featuring a peak wavelength of 860 nm. Packaged in a PLCC 2 surface mount package with dimensions of 3.4 x 3 x 2.1 mm, it is intended for efficient SMT mounting in electronic assemblies.

This IR LED emits infrared light with a radiant flux of 40 mW and a radiant intensity of 13 mW/sr, producing a homogeneous radiation pattern with a 60° angle of half intensity through a round lens. The packaging in tape and reel format facilitates automated insertion and assembly.

Designed to meet IEC 62471 photobiological safety standards and automotive AEC-Q101 qualification, this device is reliable for demanding industrial and automotive environments.

Typical applications include sensor technologies, miniature photointerrupters, control and drive circuits, automotive ambient detection, alarm and safety systems including CCTV, and other optoelectronic devices requiring precise IR emission.

The TOPLED series from OSRAM Opto Semiconductors is known for its compact size, reliable performance, and ease of integration into modern electronics manufacturing processes, making the SFH 4253-R a suitable component for various industrial and commercial IR LED uses.

The IR LED features a radiant flux of 40 mW and radiant intensity of 13 mW/sr. Compact 3.4 x 3 x 2.1 mm PLCC 2 surface mount package. 60° angle of half intensity for homogeneous radiation pattern. Meets IEC 62471 and automotive AEC-Q101 standards.

Packaged in tape and reel suitable for automated assembly. Applications include sensor and automotive control systems, safety equipment, and miniature photointerrupters. For additional related components and specifications, explore the Electronics & Electricals category on EnvMart.
