| Country of Origin | Thailand |
|---|---|
| Brand | ROHM |
| Height | 0.5mm |
| Length | 2mm |
| Model | RF05VAM1STR |
| Width | 1.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TUMD2M |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 6A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |

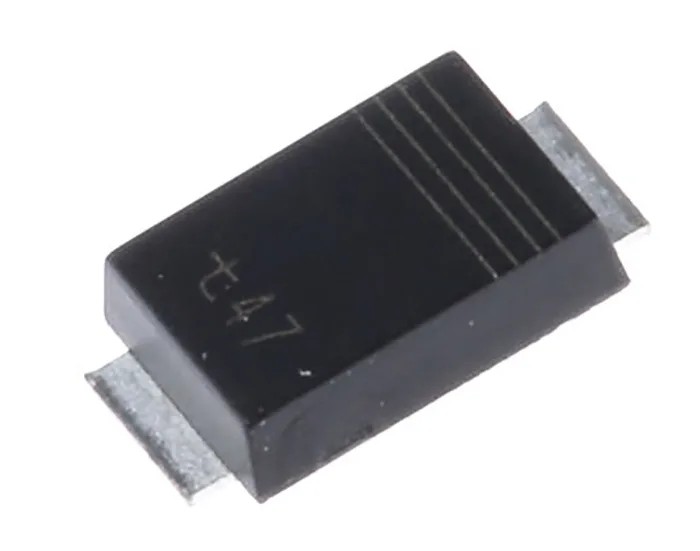

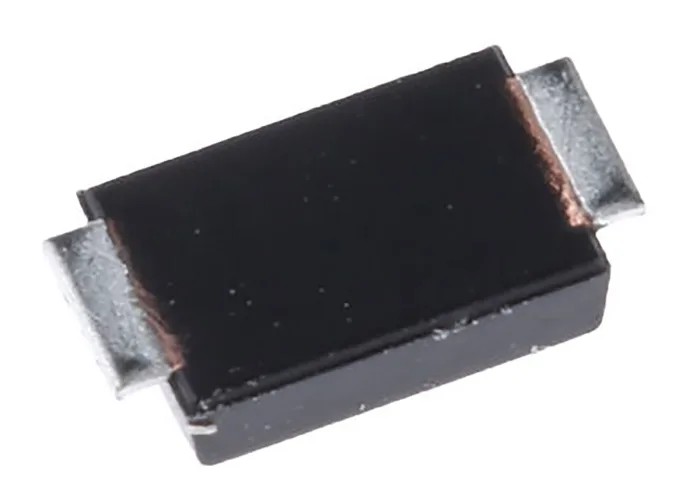

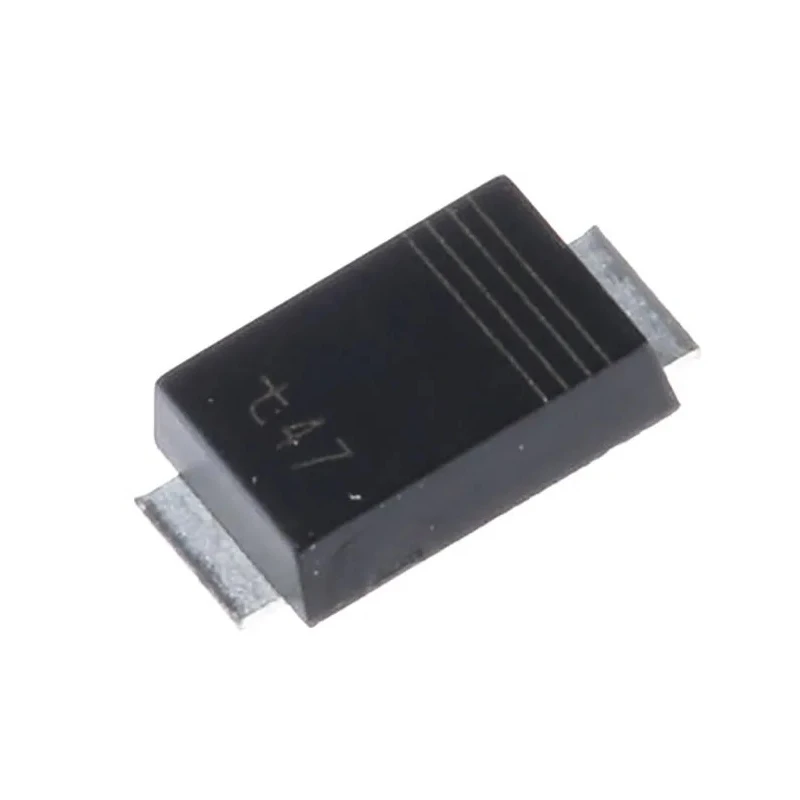

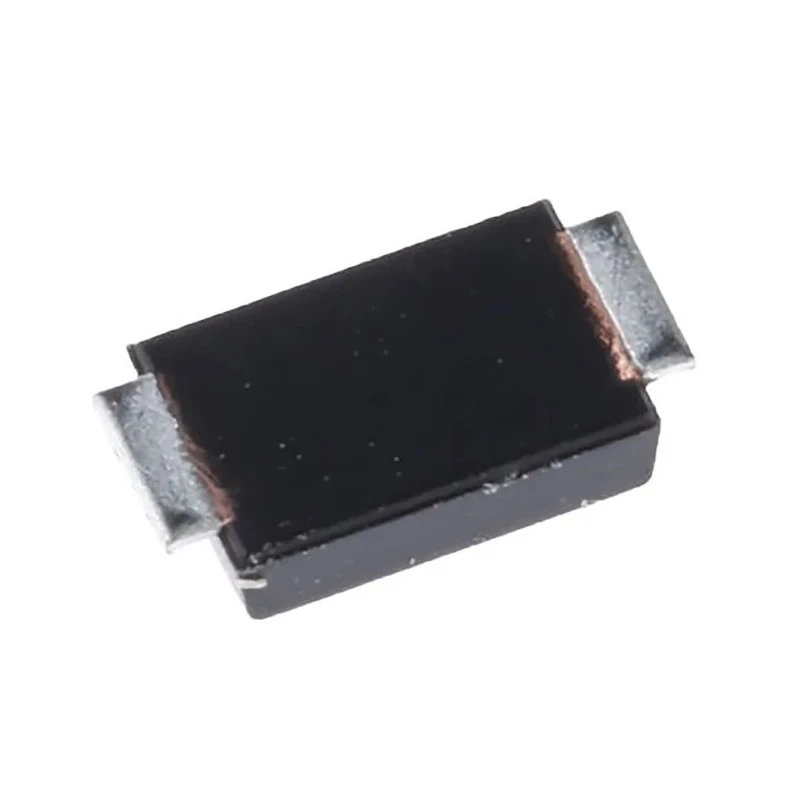

ROHM RF05VAM1STR is a high-performance general purpose Schottky diode designed for surface mounting on PCBs, providing 100 V peak reverse voltage and continuous forward current of 500 mA. Its 2-pin TUMD2M package offers compact size and efficient integration into electronic circuits.
Its peak non-repetitive forward surge current of 6 A and peak reverse current of 10 μA make it ideal for applications requiring fast recovery and low leakage currents. With a maximum forward voltage of 980 mV and extremely fast recovery time of 25 ns, this diode ensures minimal power dissipation and enhanced switching speed.
The compact physical dimensions (2 mm length, 1.4 mm width, and 0.5 mm height) allow for dense PCB layouts in consumer electronics, power supplies, and industrial assemblies. It reliably operates up to a maximum temperature of 150°C, ensuring durability in demanding environments.
Common applications include power rectification, voltage clamping, and reverse polarity protection in various industrial, consumer electronics, and automation devices. Its surface mount design facilitates automated assembly processes, improving production efficiency.
Fast recovery 2-pin Schottky diode for efficient power management. Compact surface mount TUMD2M packaging for space-saving PCB design. Supports peak forward surge currents of up to 6 A for transient conditions. Operates reliably up to 150°C ensuring thermal stability.
Low forward voltage drop reduces energy losses in circuits. Quick 25 ns reverse recovery time enhances switching speed. Manufactured in Thailand under recognized quality standards.
This ROHM diode model RF05VAM1STR is categorized under Schottky Diodes & Rectifiers, widely used in electronic components for power and signal rectification applications. Browse the Electroincs & Electricals category for more semiconductor devices and Schottky diodes at EnvMart.
