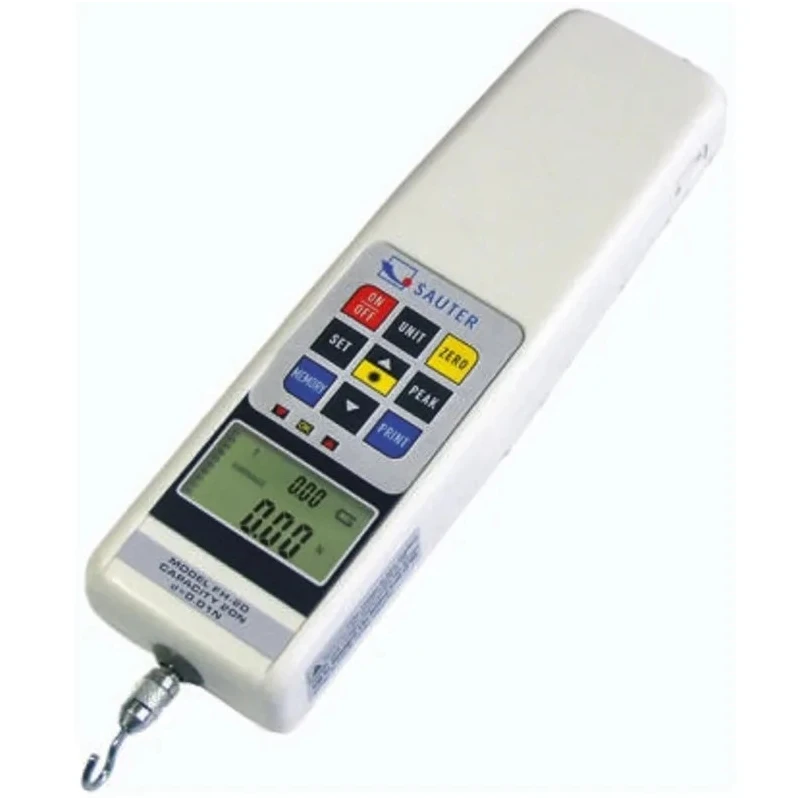

Sauter Digital Force Gauge 2000 Hz RS232, 0.1 N Resolution, FH 200

The Sauter FH 200 digital force gauge combines robust measuring performance with advanced data output, making it suitable for precision force measurements in industrial, laboratory, quality control, and research environments. This instrument operates at a 2000 Hz sampling frequency, providing fast and reliable readings for both compressive and tractive forces. With a resolution of 0.1 N and measurement accuracy of ±0.5%, it ensures reliable results for demanding applications.

The unit features a rotatable digital display that allows users to view readings in Newtons, kilograms, and pounds. Its RS232 interface supports easy connectivity for data logging and statistical analysis. The FH 200 supports memory spaces for peak value entry and provides peak hold as well as track functions for capturing maximum and real-time force values. The device also includes a mini-statistics package and an integrated limit value function, enhancing quality control capabilities.

Ergonomically designed, the FH 200 is battery powered and supports up to 12 hours of operation, enabling portable use across different measurement settings. The instrument comes supplied with a mains adapter, hook, pressure plate, and pressure peaks, along with six standard accessories packaged in a sturdy transport case. For force measurements above 1000 N, external force transducers are provided, while models below 1 kN are directly equipped with standard accessories.

The FH 200 complies with ISO standards and operates comfortably within the temperature range of 10°C to 30°C. Its compact size (238 mm length, 63 mm width, 36 mm height) and moderate weight (640 g) allow for convenient handling and installation on compatible test stands. The plug type is EU Type C for worldwide compatibility.

Applications include product acceptance testing, industrial manufacturing quality control, laboratory research, material testing, and routine inspection tasks. Supplied in a transport case, the Sauter FH 200 is ready for demanding technical environments.

Measures tractive and compressive forces with high accuracy for diverse industrial needs. Digital display rotates 180°, displaying results in N, kg, and lb. Peak hold and track functions capture maximum and continuous force readings.

RS232 output supports seamless data transfer and analysis. Limit value and statistics package integrated for quality assurance. Long battery life (12 hours), suitable for portable field and lab operation. Complete accessory package and robust transport case included.
