ROHM 30 V 500 mA Schottky Barrier Diode Surface Mount SOD-323 2-Pin RB551VM-30TE-17

ROHM RB551VM-30TE-17 Schottky Barrier Diode is a high-performance semiconductor device designed for efficient power rectification and fast switching applications in industrial, commercial, and consumer electronic circuits. With a maximum continuous forward current of 500 mA and peak reverse repetitive voltage of 30 V, this diode delivers reliable performance in compact surface mount form factor.

The diode's low maximum forward voltage of 470 mV reduces conduction losses, enhancing overall system efficiency. Its fast peak reverse recovery time of 6.9 nanoseconds supports high-speed switching required in power converters, solar inverters, and switch-mode power supplies.

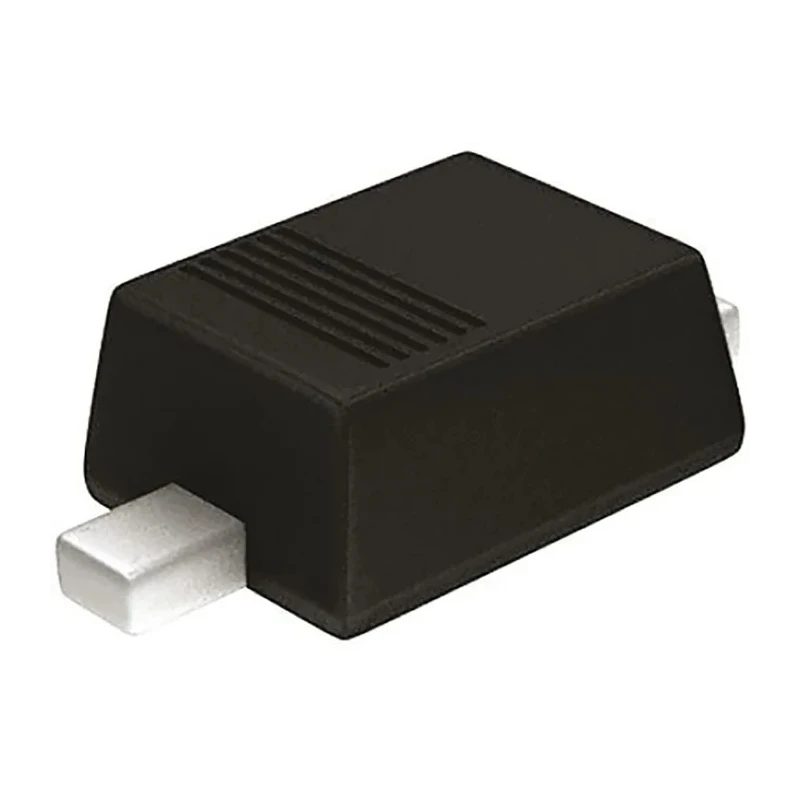

Encased in a 2-pin SOD-323 surface mount package measuring just 1.7 mm by 1.25 mm by 0.7 mm, the RB551VM-30TE-17 saves valuable PCB space and is suitable for automated assembly processes. The device operates reliably across an industrial temperature range from -55°C to 125°C, ensuring robustness in harsh operating conditions.

Other notable features include a peak reverse current rating of 100 mA and RoHS compliance, supporting environmentally responsible designs. Its single diode configuration makes integration into existing designs straightforward.

This diode is ideal for applications in power management circuits, voltage clamping, DC power supplies, and signal rectification in telecommunications, automotive electronics, and consumer devices.

The diode is designed for surface mounting with a SOD-323 package type. Maximum continuous forward current of 500 mA supports moderate current applications. Peak reverse repetitive voltage rated at 30 V ensures durability against voltage spikes.

Low forward voltage drop of 470 mV minimizes power loss during conduction. Peak reverse current of 100 mA maintains low leakage for efficient operation. Fast peak reverse recovery time of 6.9 ns enhances switching performance.

Operating temperature range from -55°C to 125°C suits industrial and commercial environments. Compact dimensions: length 1.7 mm, width 1.25 mm, and height 0.7 mm for space-saving PCB designs.
