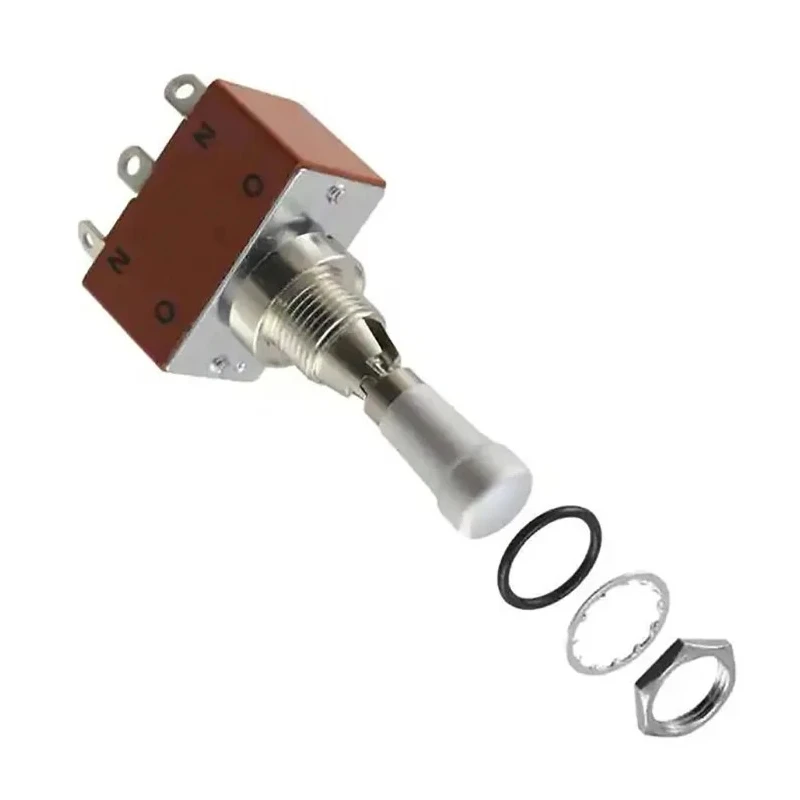

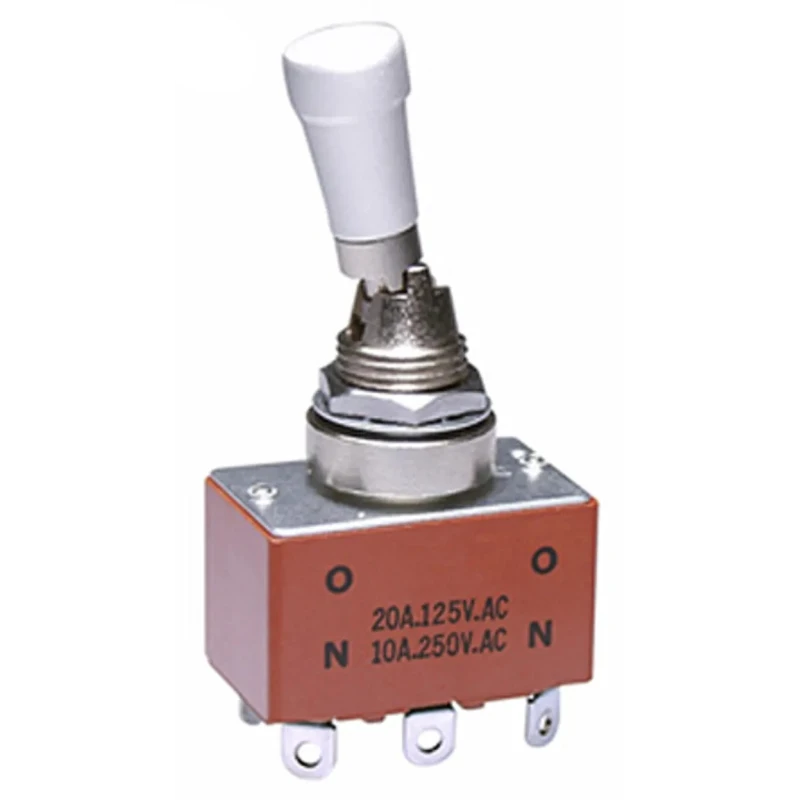

NKK Switches Panel Mount Toggle Switch On-Off-(On) DPDT Solder Terminal 30 V dc 125 V ac S6AL

NKK Switches S6AL is a high-quality panel mount toggle switch with a DPDT (Double Pole Double Throw) configuration and On-Off-(On) switching operation. It is designed for use in medium capacity electrical applications with a robust current rating of 20A at 125 VAC and 30 V DC. The switch is equipped with solder terminals for reliable circuit connections.

The actuator is made from chrome plated brass, providing durability and a premium tactile feel. Its IP67 rating ensures superior protection against dust and water ingress, making it suitable for harsh environments including industrial automation, electrical assemblies, and instrumentation panels.

Its compact dimension with a 12.2 mm diameter panel cutout and overall height and length of 69.1 mm and 31.2 mm respectively, facilitates easy integration in control panels and equipment enclosures.

The switch operates reliably within a wide temperature range from -10°C to 70°C and offers a mechanical lifespan of up to 50,000 operations, making it ideal for demanding commercial and industrial use.

The switch’s panel mount design makes installation straightforward and secure. Its robust mechanical structure with high torque bushings and zinc plated steel covers ensures prolonged operational stability. Meets key certifications including UL, cULus, and CSA, confirming compliance with rigorous safety standards.

Suitable for industrial, HVAC, laboratory, manufacturing, and electrical control applications requiring reliable switching solutions.

Made in Japan, this toggle switch is part of NKK’s S Series, known for quality and endurance. The product is well suited for integration in electrical control systems demanding dependable switching with a compact form factor.
