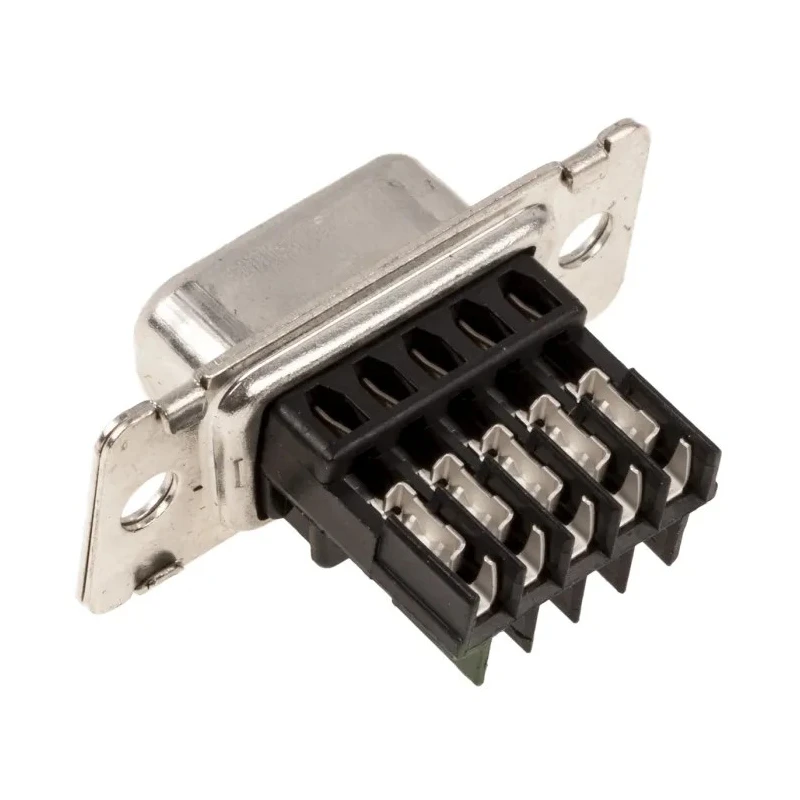

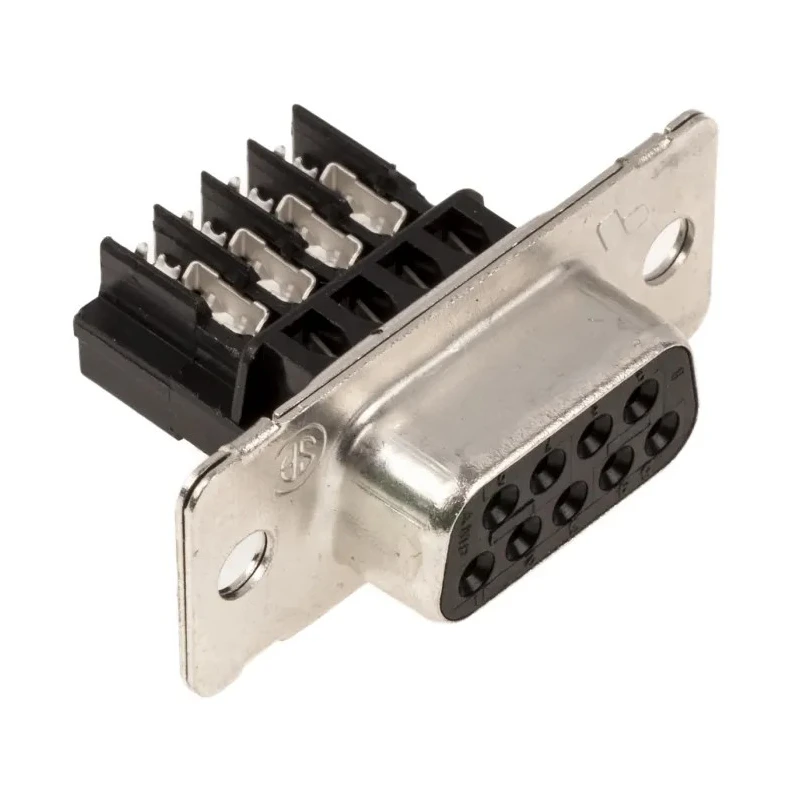

TE Connectivity Amplimite HDE-20 9 Way Straight 2.743 mm Pitch Cable D-Sub Connector Female 1-745491-7

TE Connectivity 1-745491-7 Amplimite HDE-20 9 Way Straight 2.743 mm Pitch Cable D-Sub Connector Female is engineered for reliable signal transmission in industrial, electronic, and commercial applications. This connector belongs to the Amplimite HDE-20 series and features a metal shell design with a black thermoplastic insert rated 94V-0, ensuring flame resistance and durability.

Designed for cable mount, the connector's IDC termination type facilitates quick assembly to discrete wire and jacketed cable types. The steel housing provides mechanical protection while the phosphor bronze contacts plated with gold on the mating ends ensure low contact resistance and high reliability in harsh environments.

Operating voltage is rated at 250 V with a current capacity of 3.7 A per contact, suitable for various signal and power applications. The contact pitch of 2.743 mm aligns with industry standards for D-Sub connectors, guaranteeing compatibility with mating components.

This connector supports operation in extreme temperatures ranging from -55°C to 105°C, making it ideal for applications requiring thermal resilience. Although it does not have specific standards listed, it meets safety and operational requirements expected for the Amplimite HDE-20 series.

Accessories such as cable clamps, screw locks, retaining hardware, and specialized tooling are recommended for assembly and are available separately. The connector is commonly used in electronic component assemblies, power connectors, instrumentation, manufacturing, and other industrial applications where reliable data and power connectivity are required.

This D-Sub connector integrates 9 female contacts with gold plating for enhanced conductivity. Suitable for cable mount with IDC termination facilitating easy installation. Steel housing provides robust mechanical protection in harsh environments.

Rated for 250 V and 3.7 A with operation from -55°C to 105°C. Conforms to the Amplimite HDE-20 series pitch and design standards. Compatible with various assembly accessories and tooling for secure mounting. Ideal for industrial, electronic, manufacturing, and power distribution uses.
