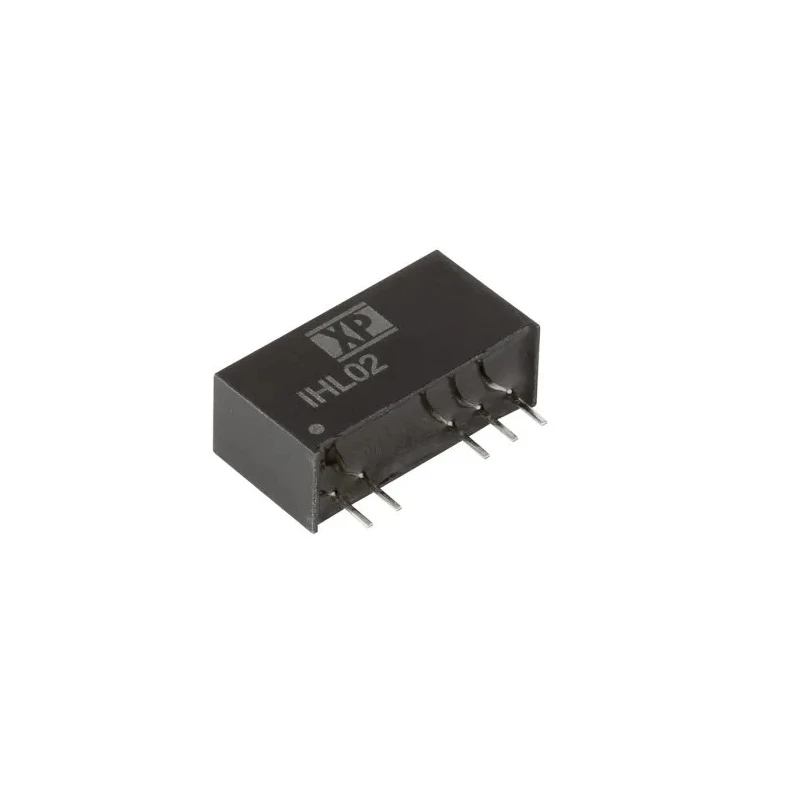

XP Power Isolated DC/DC Converter 15V DC Output 70mA, 16.5V DC Max Input, 2W SIP7 Through Hole IHL02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IHL02 DC/DC Converter, 15V dc/ 70 mA, 16 |
| Brand | XP Power |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | IHL02 |
| Depth | 10mm |
| Width | 7.2mm |
| Mount Type | Through Hole |
| Series | IHL02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3300000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 16.5V dc |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 70mA |
| Isolation Voltage | 5.2kV dc |
Key Features
- The converter offers high isolation voltage of 5200 V DC for enhanced safety.
- It operates efficiently with a 77% efficiency rating for power saving.
- MTBF is rated at 3,300,000 hours, ensuring reliable long-term performance.
- The device supports a wide operating temperature range from -40°C up to +85°C.
- Compact SIP7 package type with 7 pins and through hole mount style.
- The converter has dual outputs and is designed for isolated power applications.
- Suitable for integration in industrial and electronic power supply systems.
- The length, width, and depth of the unit are 19.5 mm, 7.2 mm, and 10 mm respectively.
Product Description
XP Power IHL02 DC/DC Converter model IHL02 delivers 15V DC output voltage at 70mA current with a maximum input voltage of 16.5V and minimum input voltage of 13.5V. This compact converter supports dual outputs and is housed in an industry-standard SIP7 through hole package, making it adaptable for both new designs and retrofits.
Designed to provide high isolation with 5200 V DC isolation voltage, the device ensures safe electrical separation between input and output, suitable for applications in industrial electronics, telecommunication, and power supply modules. It operates efficiently with an efficiency rating of 77% and has a reliable MTBF of 3.3 million hours.
The unit supports a wide -40°C to +85°C operating temperature range, ensuring stable performance in harsh environments. The SIP7 package with 7 pins allows easy through-hole mounting on typical PCBs.
Its compact dimensions of 19.5 mm length, 7.2 mm width, and 10 mm depth allow space-saving integration. This DC/DC converter is ideal for applications requiring isolated power conversion and dual output capability, including MOSFET and IGBT drive circuits.
The converter features high isolation voltage of 5200 V DC for enhanced device and operator safety. It offers dual output options enabling versatile deployment across varied single-phase environments. High efficiency of 77% reduces energy loss and heat dissipation.
The product is manufactured under stringent quality controls, originating from Taiwan, Province Of China. Its MTBF of 3,300,000 hours guarantees excellent operational reliability. The device is packaged in a space-efficient SIP7 form factor enabling easy PCB mounting.
Through hole mount style ensures sturdy physical and electrical connection for rugged applications.
This XP Power IHL02 DC/DC Converter serves industrial, telecommunications, laboratory, and embedded system sectors for DC voltage conversion needs. It supports applications that require precise isolated voltage supply and compact package design.
Explore more XP Power DC/DC Converters and related power supply solutions on EnvMart for reliable and high-quality electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 15V DC output voltage with a current of 70mA.
The maximum input voltage for this converter is 16.5V DC.
It operates with an efficiency rating of 77%.
The device features a high isolation voltage of 5200 V DC.
The dimensions of the converter are 19.5 mm in length, 7.2 mm in width, and 10 mm in depth.
It supports a wide operating temperature range from -40°C to +85°C.
This unit has dual outputs, allowing for versatile deployment.
The mean time between failures (MTBF) is rated at 3,300,000 hours.
It features a through hole mount style, suitable for standard PCB installation.
This converter is suitable for industrial electronics, telecommunications, and power supply modules.
The minimum input voltage required for operation is 13.5V DC.
The product is manufactured in Taiwan, Province Of China.
