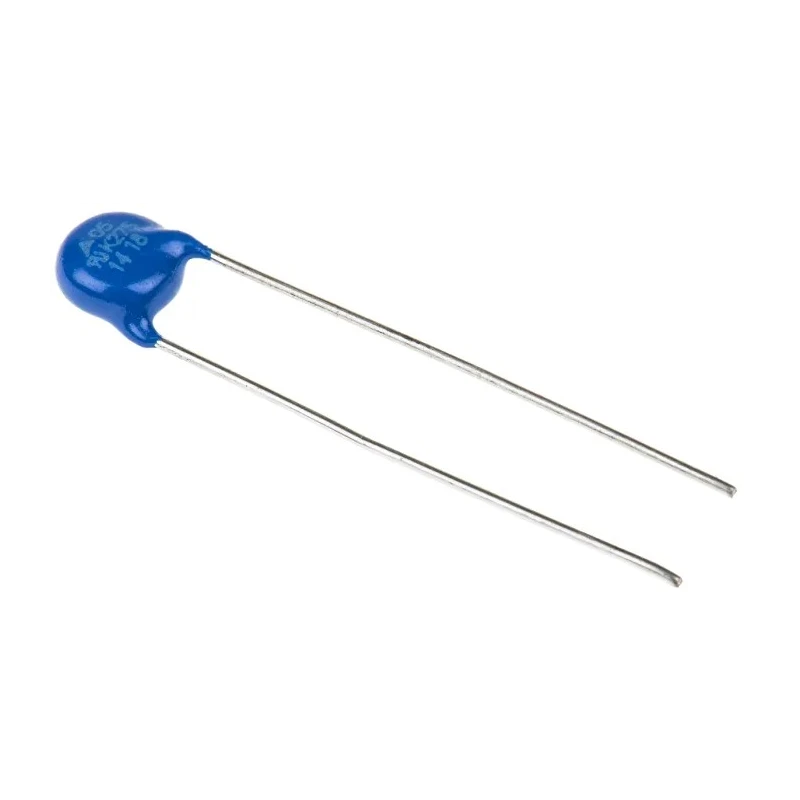

TDK Standard Metal Oxide Varistor 60pF Capacitance 5A Clamping Voltage 2970V B72205S0271K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 60pF Capacitance 5A Clamping Voltage 2970V B72205S0271K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	7mm
Brand	TDK
Material	Metal
THICKNESS	4.3mm
Length	33.5mm
Model	B72205S0271K101
Depth	4.3mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	60pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	VDE, UL, CQC, IEC, CSA
Pin Count	2
Lead Pitch	5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	5A
Maximum Surge Current	400A
Varistor Voltage	430 V
Panasonic, V Surge Absorber 5 A, Clamping 745 VBrand	Panasonic

Key Features

This varistor is designed with a metal oxide construction ensuring reliable electrical characteristics.
It features a lead mount type with epoxy coating for enhanced durability.
Rated at 430 V varistor voltage with maximum AC voltage of 1100V and maximum DC voltage of 1465V.
The varistor supports maximum surge current of 400A and energy rating of 1 Joule.
Operational temperature range spans from -40°C to 85°C for industrial environments.
Complies with standards VDE, UL, CQC, IEC, and CSA ensuring safety and reliability.
Equipped with 2 pins and 5 mm lead pitch for easy PCB mounting.

Product Description

TDK B72205S0271K101 is a Standard Metal Oxide Varistor engineered for effective surge protection in electronic and electrical applications. With a capacitance of 60pF and a clamping current of 5A, it protects circuits against voltage spikes by clamping transient voltages up to 2970V.

The varistor features a robust metal oxide ceramic body coated with epoxy resin and tinned copper wire leads, combining durability and excellent electrical performance. It is designed for lead mount applications where compact size and reliable operation are essential.

Operating conditions include a varistor voltage of 430 V, maximum AC voltage of 1100 V, and maximum DC voltage of 1465 V, making it suitable for use in power supply circuits, surge protectors, and consumer electronics. It can withstand surge currents up to 400A and an energy absorption rating of 1 Joule, providing protection against transient surges and spikes.

The varistor diameter measures 7 mm with length 33.5 mm and thickness 4.3 mm, enabling fitment in space-constrained assemblies. It performs reliably across industrial temperature ranges from -40°C to +85°C, suitable for a wide variety of environmental conditions.

Certified with international standards including VDE, UL, CQC, IEC, and CSA, this component ensures compliance with safety regulations and industry requirements. The device has 2 pins spaced on a 5 mm lead pitch for straightforward PCB integration.

Ideal for industrial, commercial, and consumer electronics manufacturing, this TDK Metal Oxide Varistor serves well in power protection circuits to enhance device longevity and operational stability.

This varistor is designed with a metal oxide construction ensuring reliable electrical characteristics. It features a lead mount type with epoxy coating for enhanced durability. Rated at 430 V varistor voltage with maximum AC voltage of 1100V and maximum DC voltage of 1465V.

The varistor supports maximum surge current of 400A and energy rating of 1 Joule. Dimensions include a 7 mm diameter, 33.5 mm length, and 4.3 mm thickness for compact use. Operational temperature range spans from -40°C to 85°C for industrial environments.

Complies with standards VDE, UL, CQC, IEC, and CSA ensuring safety and reliability. Equipped with 2 pins and 5 mm lead pitch for easy PCB mounting. Explore similar high-quality surge protection components and Varistors on EnvMart for your industrial and electronic assembly needs.
