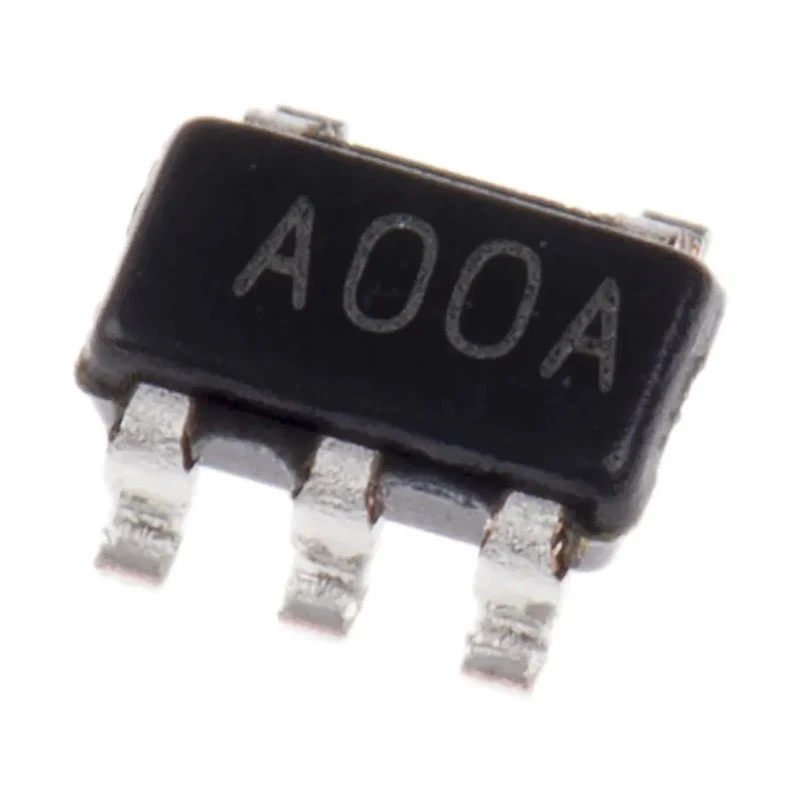

Texas Instruments Operational Amplifier Surface Mount SOT-23 Package 5-Pin 5-15.5V 1MHz Gain Bandwidth LMC7101AIM5/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.02mm |
| Length | 2.92mm |
| Model | LMC7101AIM5/NOPB |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | LMC7101 |
| Output Current | 16mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15.5V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 64 pA |
| Vos - Input Offset Voltage | 0.11 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 32 pA |
Key Features
- Low input offset voltage of 0.11 mV for precision signal amplification.
- Wide supply voltage range from 5 V to 15.5 V suitable for diverse applications.
- Single channel operational amplifier with a 5-pin package design.
- High slew rate of 1 V/μs enables fast response times.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Low input bias current of 64 pA and input offset current of 32 pA increases accuracy.
- Built to automotive standard AEC-Q100 ensuring durability under automotive conditions.
Product Description
Texas Instruments LMC7101AIM5/NOPB is a high-performance operational amplifier designed for surface mounting applications. It operates with a low input offset voltage of 0.11 mV and a gain bandwidth product of 1 MHz, making it ideal for precision amplifier circuits requiring dependable performance. The device operates over a wide supply voltage range of 5 V to 15.5 V, accommodating many industrial and automotive electronics setups.
This single-channel amplifier comes in a compact 5-pin SOT-23 package, with physical dimensions of 2.92 mm length, 1.6 mm width, and 1.02 mm height, facilitating space-saving designs on printed circuit boards.
Its input bias current is 64 pA, with an input offset current of just 32 pA, ensuring minimal error in signal conditioning applications. The device supports a high slew rate of 1 V/μs, enabling quick response to signal changes. It is rated for operating temperatures from -40°C up to 85°C, suitable for both industrial and automotive environmental conditions.
The LMC7101AIM5/NOPB meets automotive standard AEC-Q100, guaranteeing reliability under harsh automotive stresses. Typical applications include industrial automation, signal conditioning, sensor interfaces, and automotive electronics where precise low noise amplification is required.
Low input offset voltage of 0.11 mV ensures accuracy. Wide supply voltage range of 5 V to 15.5 V for flexible power options. Compact 5-pin SOT-23 package for surface mount design. High slew rate of 1 V/μs for fast signal response.
Low input bias and offset currents enhance signal fidelity. Operating temperature range from -40°C to 85°C supports harsh environments. Automotive standard AEC-Q100 qualified for vehicle electronics.
Explore more advanced semiconductor devices and Operational Amplifiers in the Electronics & Electricals category at EnvMart to support your industrial, automotive, and laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, making it suitable for precision amplifier circuits.
The input offset voltage of this model is 0.11 mV, ensuring high accuracy in signal amplification.
It operates within a temperature range of -40°C to 85°C, suitable for both industrial and automotive environments.
The supply voltage range for this amplifier is from 5 V to 15.5 V, allowing for flexible power options in various applications.
The SOT-23 package has dimensions of 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height.
The input bias current is 64 pA, which helps in maintaining signal fidelity during amplification.
This model is a single-channel operational amplifier, designed for specific amplification tasks.
The slew rate of this operational amplifier is 1 V/μs, enabling fast response times to signal changes.
The input offset current is 32 pA, contributing to the accuracy of signal conditioning applications.
The maximum output current of this operational amplifier is 16 mA, suitable for various applications.
This operational amplifier is suitable for applications such as industrial automation, signal conditioning, sensor interfaces, and automotive electronics.
