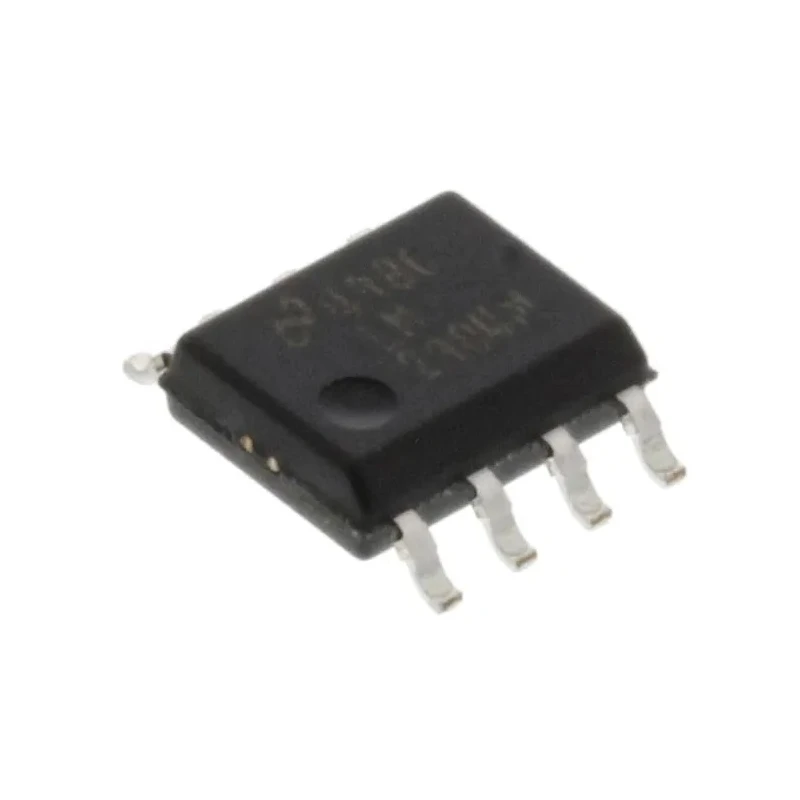

Texas Instruments Operational Amplifier 1 MHz 8-Pin 26V SOIC LM2904M/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM2904M/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM2904-N |
| Output Current | 40mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 0.1V/μs |
| Input Offset Current | 200 nA |
Key Features
- Features a gain bandwidth product of 1 MHz suitable for general purpose amplification.
- Operates from a minimum supply voltage of 5V up to a maximum of 26V.
- Includes low input bias and offset currents ensuring precision operation.
- Support operating temperature range from -40°C to +85°C for robust applications.
- Compact SOIC surface mount package with dimensions 4.9mm length by 3.9mm width.
- Maximum output current rating of 40mA supports standard load conditions.
- Inputs include offset voltage of 10 mV and input offset current of 200 nA for accuracy.
- Suitable for industrial, laboratory, and electronic design applications.
Product Description
Texas Instruments LM2904M/NOPB operational amplifier is a dual channel device designed for general purpose amplification applications requiring a 1 MHz gain bandwidth product. This device comes in a compact 8-pin SOIC surface mount package measuring 4.9 mm by 3.9 mm with a height of 1.45 mm, supporting an operating voltage range from 5 V to 26 V. It features low input bias current of 500 nA and a low input offset current of 200 nA, providing high precision in signal processing tasks.
The LM2904M/NOPB also maintains a low input offset voltage of 10 mV and a slew rate of 0.1 V/μs, suitable for many analog signal conditioning circuits. Designed for operation in a wide temperature range from -40°C to +85°C, it ensures reliable performance in both industrial and laboratory environments.
This operational amplifier supports output current up to 40 mA, making it capable of driving standard loads effectively. Its surface mount SOIC package type facilitates easy PCB integration in compact electronic assemblies.
Typical applications for this amplifier include general purpose analog signal amplification, filtering, voltage follower circuits, instrumentation, and other electronic designs requiring a versatile dual operational amplifier.
Gain bandwidth product of 1 MHz for effective amplification. Supply voltage range from 5 V to 26 V. Low input bias and offset currents for precision. Operating temperature range from -40°C to +85°C. Compact 8-pin SOIC surface mount package.
Output current up to 40 mA. Slew rate of 0.1 V/μs for smooth signal response. Dual channel configuration for flexible applications. Low power consumption compatible with single supply use. Ideal for industrial, laboratory, and electronic design solutions.
Choose Texas Instruments LM2904M/NOPB for dependable, cost-effective general purpose operational amplification. Explore more Operational Amplifiers and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM2904M/NOPB features a gain bandwidth product of 1 MHz, suitable for general purpose amplification applications.
It operates from a minimum supply voltage of 5V up to a maximum of 26V.
The maximum output current rating is 40 mA, which supports standard load conditions effectively.
This operational amplifier comes in a compact 8-pin SOIC package with dimensions of 4.9 mm in length, 3.9 mm in width, and a height of 1.45 mm.
The input offset voltage is specified at 10 mV, which contributes to its accuracy in signal processing.
The input bias current is 500 nA, ensuring high precision in amplification tasks.
It supports an operating temperature range from -40°C to +85°C, making it suitable for various environments.
The slew rate is 0.1 V/μs, allowing for smooth signal response in applications.
It features a surface mount design, specifically in an 8-pin SOIC package for easy PCB integration.
This operational amplifier is suitable for general purpose analog signal amplification, filtering, voltage follower circuits, and instrumentation.
The input offset current is 200 nA, which aids in maintaining accuracy during operation.
This model is a dual-channel operational amplifier, providing flexibility for various applications.
