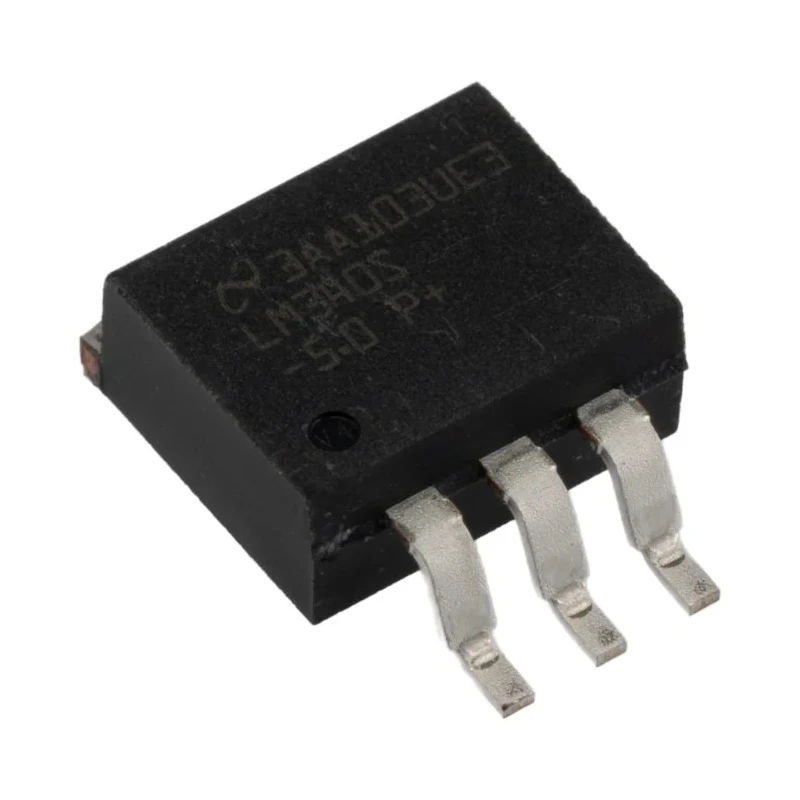

Texas Instruments 3-Pin 35V Linear Voltage Regulator LM340S-5.0/NOPB

Texas Instruments LM340S-5.0/NOPB is a high-performance 3-pin linear voltage regulator designed for fixed 5 V output voltage applications. It supports a maximum input voltage of 35 V and delivers output current up to 1 A, making it suitable for a wide range of industrial and electronic applications requiring stable power supplies.

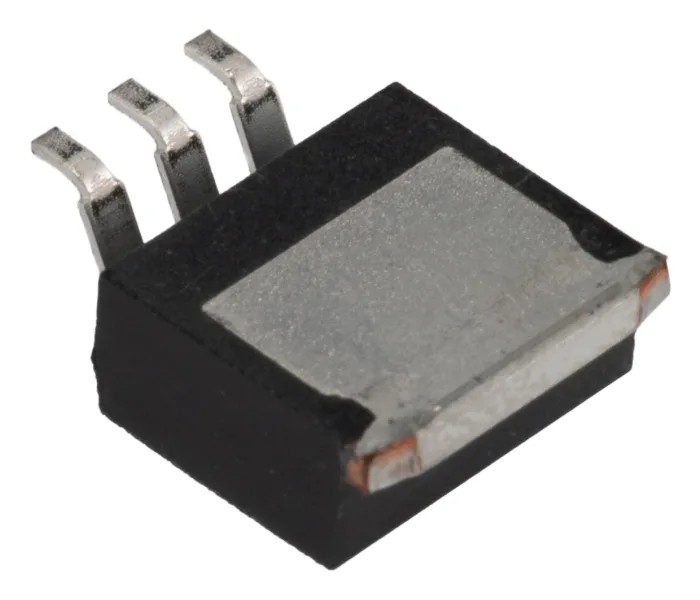

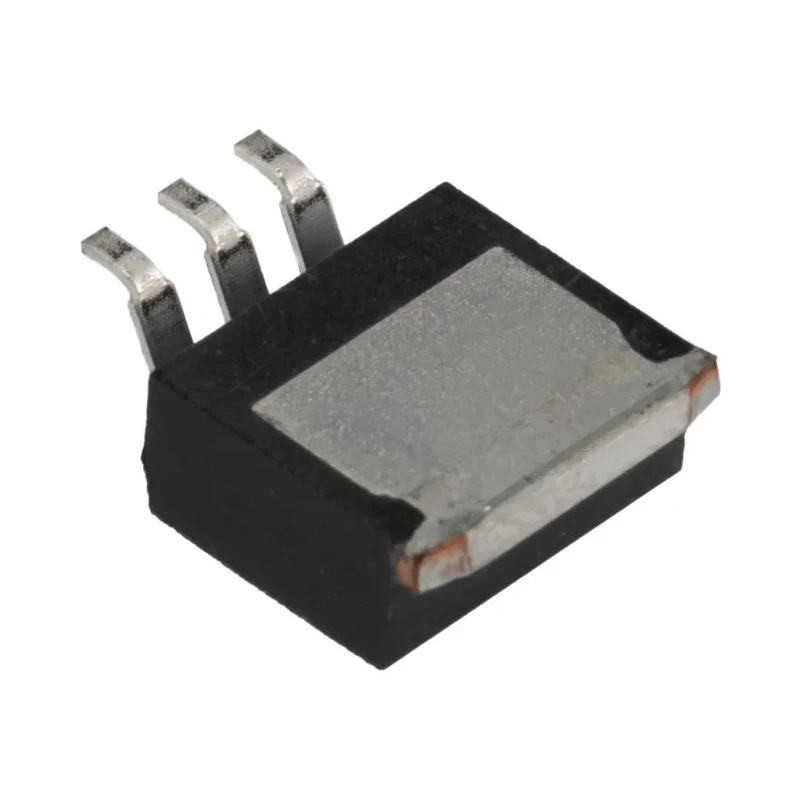

This surface mount device measures 10.16 mm in length, 8.64 mm in width, and 4.57 mm in height. It features a positive polarity design with a low quiescent current of 8 mA, ensuring energy-efficient operation. The device includes internal current limiting, thermal shutdown, and safe area compensation to enhance reliability under varying electrical and thermal conditions.

Operating at a maximum temperature of 125°C, the LM340S-5.0/NOPB is robust enough for demanding environments. It is part of the LM340 series family, which provides fixed output voltages of 5 V, 12 V, or 15 V in various packages, designed to replace multiple external regulator configurations with a simplified solution.

This voltage regulator is ideal for power management in industrial equipment, laboratory instrumentation, consumer electronics, and embedded systems where precise and steady voltage supply is critical.

Surface mount type for easy PCB integration. Positive polarity device with 3-pin configuration. Maximum input voltage of 35 V for robust operation. Low quiescent current of 8 mA for energy efficiency. Compact size supports space-constrained designs.

Internal protections improve device safety and longevity. Reliable operation up to 125°C maximum temperature. Fixed 5 V output voltage for stable power delivery. Part of a well-established LM340 regulator series. Explore the complete range of voltage regulators at EnvMart for your industrial and electronic component needs.
