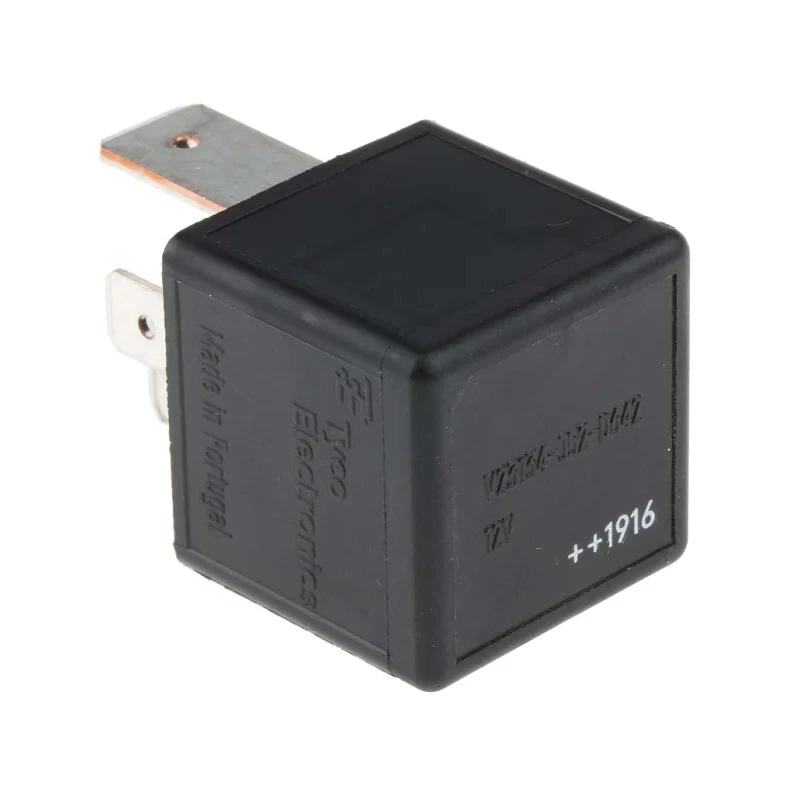

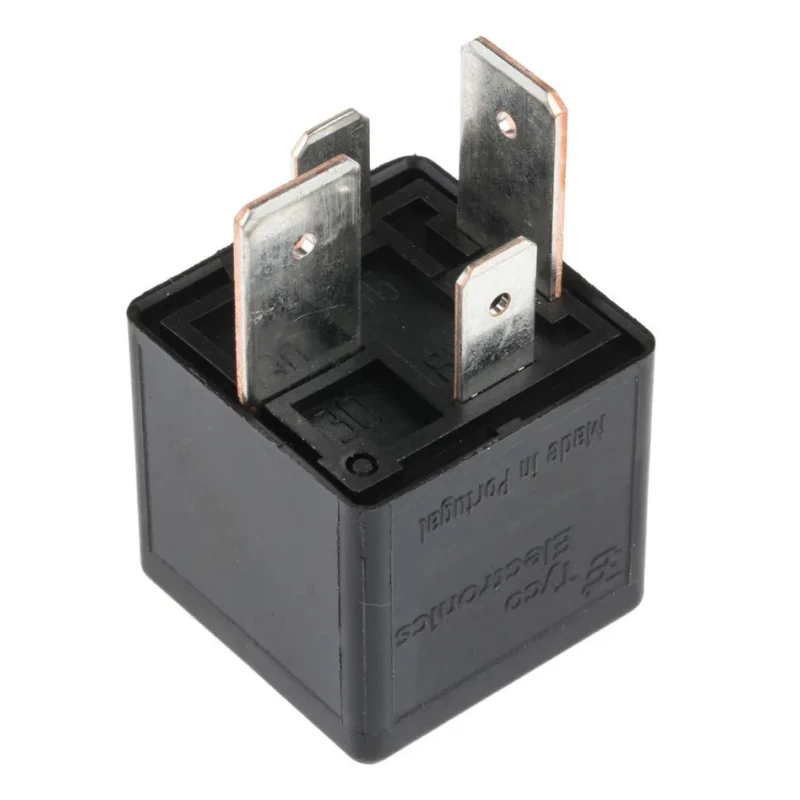

TE Connectivity Automotive Relay 12V dc Coil 50A Switching Current SPST V23134J0052D642 7-1393303-3
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 57.9mm |
| Length | 25.9mm |
| Model | V23134J0052D642 7-1393303-3 |
| Depth | 25.9mm |
| Contact Material | Silver Alloy |
| Series | F7 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 91Ω |
Key Features
- Operates with a coil resistance of 91 ohms ensuring reliable performance.
- Contact configuration is single pole single throw (SPST) for straightforward switching.
- Designed to withstand operating temperatures from -40°C to 125°C.
- Features quick connect terminals for easy installation and maintenance.
- Compact dimensions measuring 25.9mm (length) x 57.9mm (height) x 25.9mm (depth).
- Constructed with silver alloy contacts to ensure durability and low contact resistance.
- Non-latching design suitable for automotive coil suppression and cooling fan circuits.
- IP54 rated for dust and moisture resistance enhancing life span in tough environments.
Product Description
TE Connectivity V23134J0052D642 7-1393303-3 is a high-quality automotive relay designed for 12V DC coil operation with a 50A switching current capacity. This SPST non-latching relay is engineered to meet the demanding requirements of automotive and industrial applications.
The relay features a coil resistance of 91 ohms and a coil power rating of approximately 1.6W. Its silver alloy contacts provide excellent conductivity and resistance to wear, ensuring long operational life. The relay operates within a wide temperature range of -40°C to 125°C, making it suitable for harsh environments found in automotive systems.
Compact and efficient, it measures 25.9 mm in length, 57.9 mm in height, and 25.9 mm in depth, making it ideal for panel mount installations with quick connect terminals to simplify wiring and replacement.
This relay is widely used in automotive coil suppression circuits, cooling fan controls, and wiper motor circuits, providing reliable electrical switching performance under automotive load conditions. The IP54 rating protects it against dust ingress and water splashes, enhancing durability in challenging environments.
Operates at 12V DC coil voltage with 50A switching current. Single Pole Single Throw (SPST) contact configuration. Wide operating temperature range from -40°C to 125°C. Quick connect terminal type for easy installation. Robust silver alloy contact material.
Compact dimensions suited for automotive panel mounting. IP54 protection rating against dust and splashes. Widely applicable in automotive coil suppression, cooling fan, and wiper circuits. Manufactured in Portugal ensuring quality manufacturing standards.
This product is essential for automotive electrical systems and industrial machinery requiring dependable relay switching solutions. Explore more Automotive Relays and related products in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The automotive relay has a switching current capacity of 50A.
It features a Single Pole Single Throw (SPST) contact configuration for straightforward switching.
The coil resistance of this relay is 91 ohms.
This relay measures 25.9 mm in length, 57.9 mm in height, and 25.9 mm in depth.
It operates within a temperature range of -40°C to 125°C.
It features quick connect terminals for easy installation and maintenance.
The contacts are constructed from silver alloy, ensuring low contact resistance and durability.
This product is manufactured in Portugal.
It is widely used in automotive coil suppression circuits, cooling fan controls, and wiper motor circuits.
The coil power rating is approximately 1.6W.
This relay has an IP54 rating, providing protection against dust ingress and water splashes.
This relay has a single pole configuration, making it a 1-pole relay.
