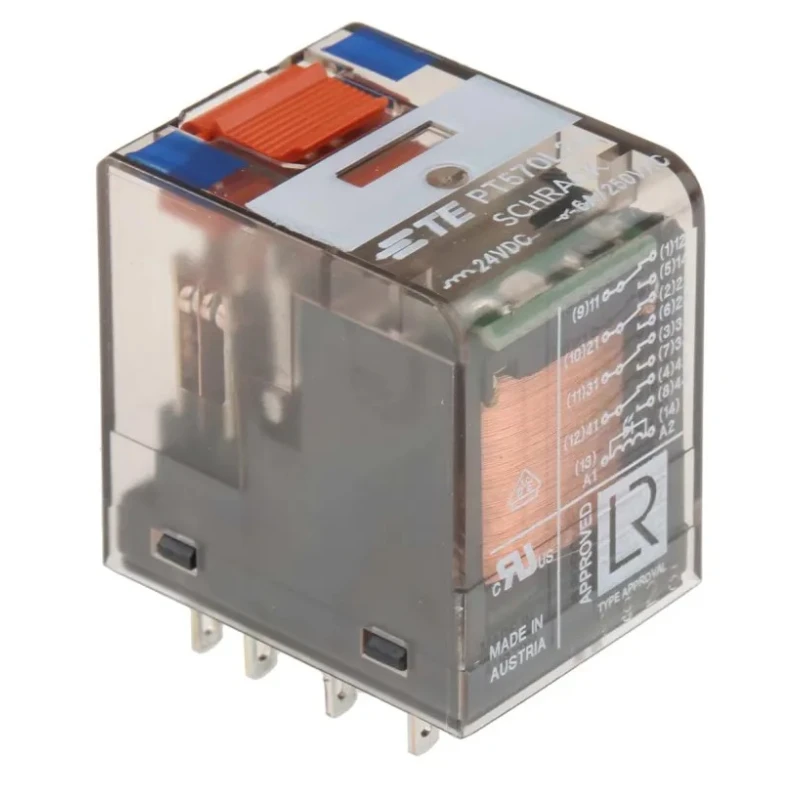

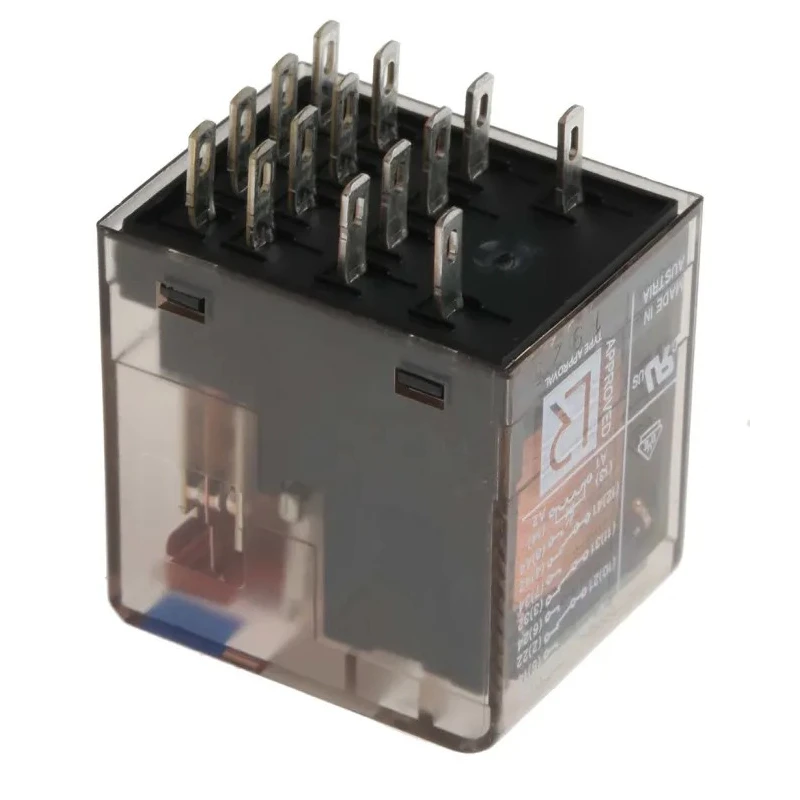

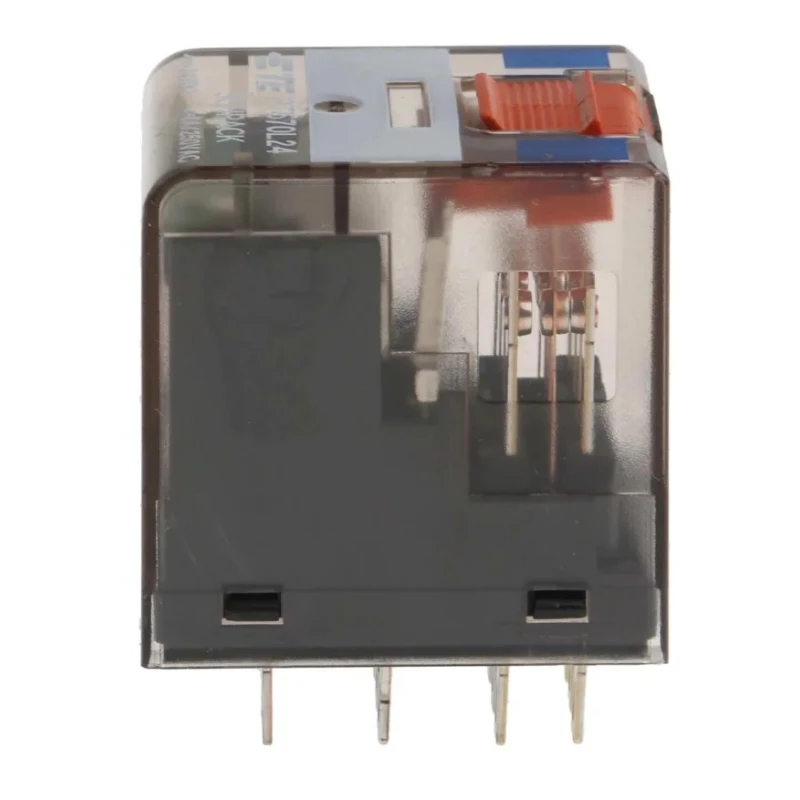

TE Connectivity PCB Power Relay 24V DC Coil 6A Switching Current 4PDT PT570L24 6-1415001-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT570L24 6-1415001-1 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Quick Connect |
| Standards/Approvals | Z E135149, V REG.-Nr. 115719, RoHS Directive 2002/95/EC, IEC 61810-1, IEC 60664-1, DIN 40050 |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Equipped with quick connect terminal type for easy installation.
- Coil resistance of 777 ohms ensures efficient operation.
- Supports switching AC voltage up to 400V AC.
- Operates within a temperature range of -40°C to 70°C.
- Contact material made of silver nickel alloy for superior conductivity.
- Includes LED and mechanical indicator with manual/lockable test facility.
- Complies with RoHS and relevant IEC standards.
Product Description
TE Connectivity PT570L24 6-1415001-1 PCB Power Relay is a high-reliability non-latching relay designed for PCB mounting with a coil voltage of 24V DC and switching current of 6A. Its 4PDT contact configuration makes it suitable for complex switching applications in control and automation systems.
This relay features a quick connect terminal type and coil resistance of 777 ohms, providing efficient and reliable switching performance. The contact material is composed of silver nickel alloy, which offers excellent electrical conductivity and durability.
It is engineered to operate within a broad temperature range from -40°C to 70°C, ensuring stable performance in industrial environments. The relay supports switching AC voltages up to 400V AC, making it versatile for various electrical applications.
Key safety and compliance standards are met, including RoHS Directive 2002/95/EC, IEC 61810-1, IEC 60664-1, and DIN 40050, ensuring the product adheres to international quality and environmental requirements.
The relay is equipped with an LED indicator and a mechanical indicator featuring a manual and lockable test facility, enhancing user convenience during maintenance and diagnostics.
With compact dimensions of 35mm (height) x 28mm (length) x 22.5mm (width), this relay is ideal for dense PCB layouts, contributing to space-saving designs in industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.
Equipped with quick connect terminal type for easy installation. Coil resistance of 777 ohms ensures efficient operation. Supports switching AC voltage up to 400V AC. Operates within a temperature range of -40°C to 70°C.
Contact material made of silver nickel alloy for superior conductivity. Includes LED and mechanical indicator with manual/lockable test facility. Compact dimensions suitable for PCB mounting. Complies with RoHS and relevant IEC standards.
This TE Connectivity Power Relay is widely used in industrial machinery, automation control, electrical equipment, and signal conditioning applications, offering dependable switching performance and compliance with global safety standards.
Browse EnvMart’s wide selection of high-quality relays and contactors for your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 6A.
The coil voltage for this relay is 24V DC.
It features a 4PDT (4 Pole Double Throw) contact configuration.
This relay supports switching AC voltages up to 400V AC.
The coil resistance is 777 ohms, ensuring efficient operation.
The dimensions are 35mm in height, 28mm in length, and 22.5mm in width.
It operates within a temperature range of -40°C to 70°C.
The contact material is made of silver nickel alloy, providing superior conductivity.
Yes, it includes an LED indicator and a mechanical indicator with a manual/lockable test facility.
It is equipped with a quick connect terminal type for easy installation.
It complies with RoHS Directive 2002/95/EC, IEC 61810-1, IEC 60664-1, and DIN 40050.
The country of origin for this relay is India.
