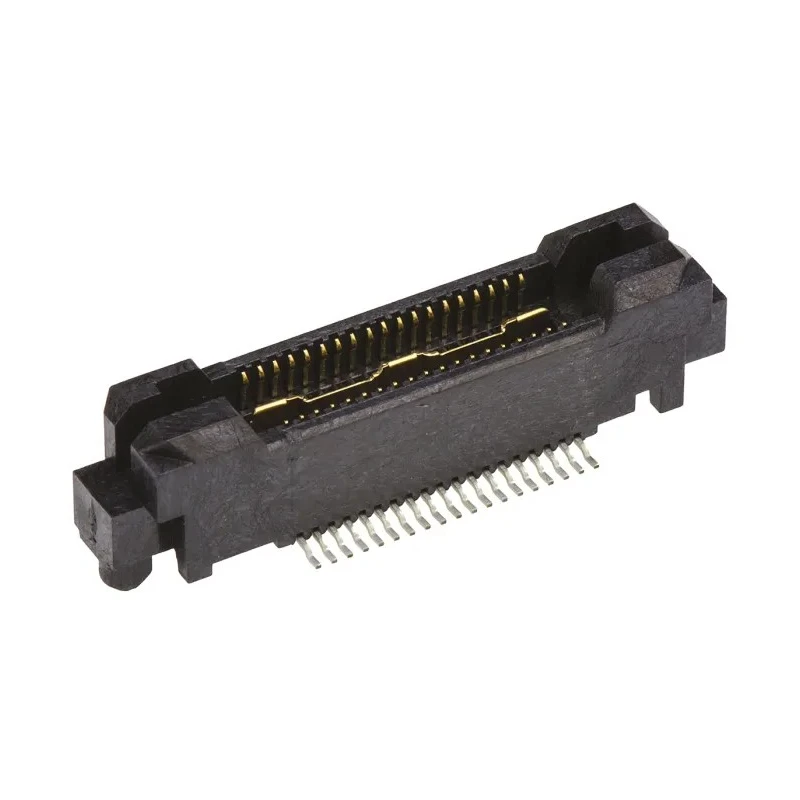

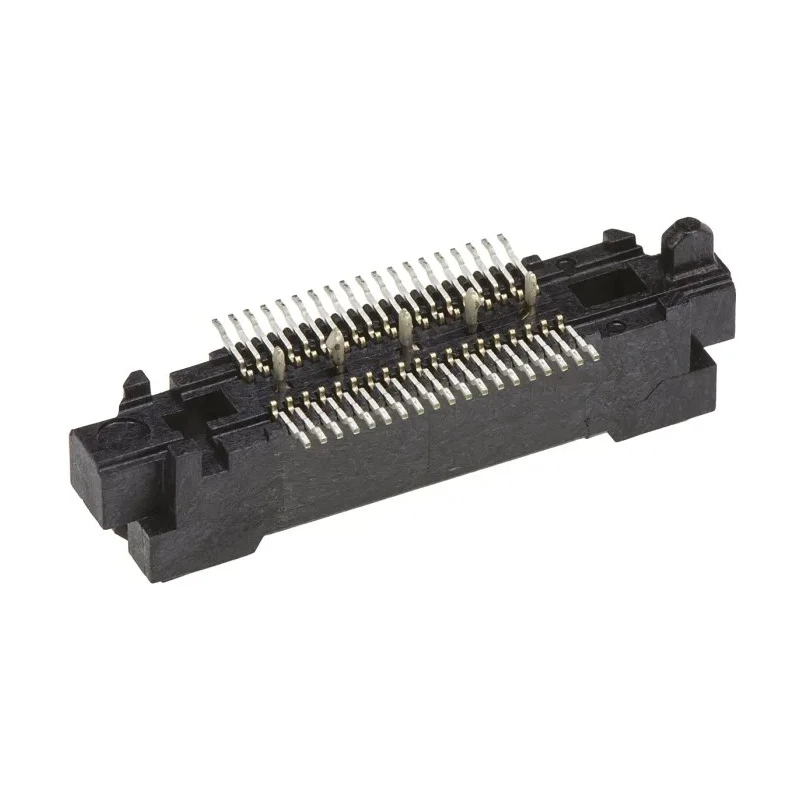

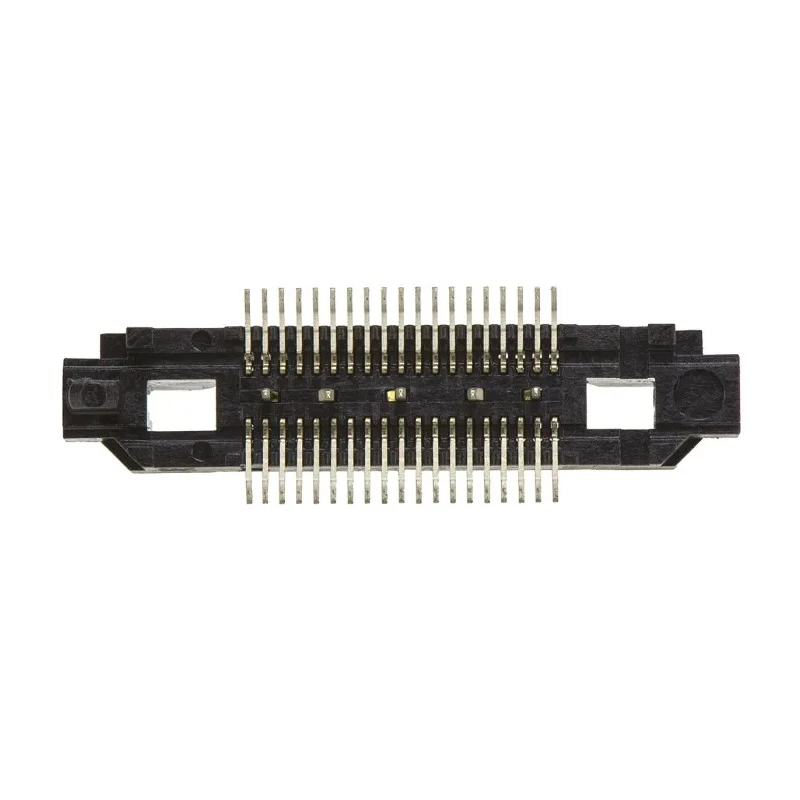

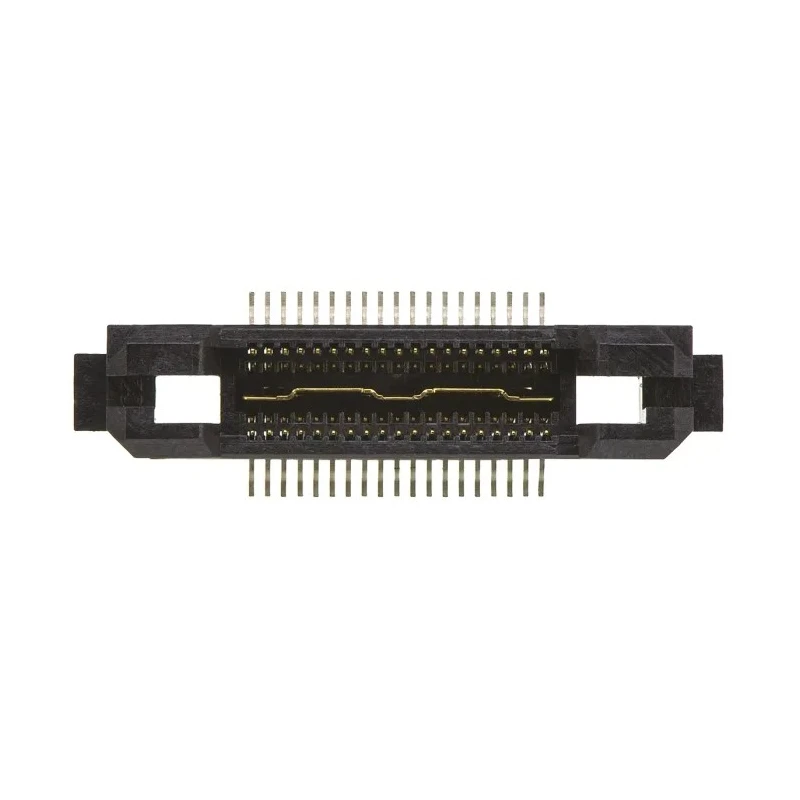

TE Connectivity MICTOR Series Straight Surface Mount PCB Header 38 Contacts 0.64 mm Pitch 2 Row Shrouded 5767007-8
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.0 |
| Mount Type | Surface Mount |
| Contact Material | Copper Alloy |
| Series | MICTOR |
| Termination Type | Solder |
| Number of Rows | 2 |
| Pitch | 0.64mm |
| Contact Plating | Gold |
| Number of Contacts | 38 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Designed for high-speed data switching applications with excellent performance up to 10+ Gbit/s.
- Microstrip design with high-density configuration of 76 signal pins per linear inch.
- Features a redundant point of contact dual beam design for improved electrical reliability.
- Polarized housing prevents mismating and PCB retention secures the connection.
- Suitable for automated assembly with surface mount board-to-board installation.
- Gold-plated copper alloy contacts ensure robust conductivity and corrosion resistance.
- Operating voltage rating up to 30 V for reliable signal integrity.
Product Description
TE Connectivity 5767007-8 MICTOR Series Straight Surface Mount PCB Header is a high-speed connector with 38 contacts arranged in 2 rows at a fine 0.64 mm pitch, designed for demanding electronic applications.
This shrouded PCB header features a microstrip design with a center ground plane separating signal contacts, enabling superior signal integrity and data rates exceeding 10 Gbit/s. The connector utilizes gold-plated copper alloy contacts with a dual beam redundant contact design to enhance electrical reliability and maintain consistent performance.
The polarized connector housing prevents mismating, while PCB retention features ensure secure mounting on circuit boards via surface mount technology, making it ideal for automated assembly processes.
It supports a wide range of high-speed telecommunications, enterprise switching equipment, storage area networks, mid-range servers, and custom high-speed platforms requiring robust and reliable board-to-board connections.
The 5767007-8 model offers a compact, high-density solution with 38 signal positions and board-to-board mating, rated at 30 V voltage with gold-plated termination for durability and corrosion resistance.
Designed for high-speed applications with data rates beyond 10 Gbit/s. High-density 38-contact design with 2 rows and 0.64 mm pitch. Gold-plated copper alloy contacts improve conductivity and lifespan. Shrouded, polarized housing prevents mismating and ensures proper alignment.
PCB retention secure connection during automated assembly. Surface mount type suitable for modern PCB manufacturing. Suitable for high-speed telecommunications and enterprise switching systems.
This PCB header is a reliable choice for high-performance electronic systems requiring precision, durability, and high data throughput. Explore more high-quality PCB connectors in the Electronics Components category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports data rates exceeding 10 Gbit/s, making it suitable for high-speed data switching applications.
The contacts in this PCB header are arranged at a fine pitch of 0.64 mm.
It features a total of 38 contacts arranged in 2 rows.
The voltage rating for this model is up to 30 V, ensuring reliable signal integrity.
This model is designed for surface mount installation, suitable for modern PCB manufacturing.
The contacts are made from gold-plated copper alloy, which enhances conductivity and corrosion resistance.
The polarized housing design of this model prevents mismating during installation.
This model has a current rating of 1.0 A.
It utilizes a solder termination type for secure connections.
It is suitable for high-speed telecommunications, enterprise switching equipment, and storage area networks.
The country of origin for this PCB header is the United States.
This connector is designed for board-to-board connections.
