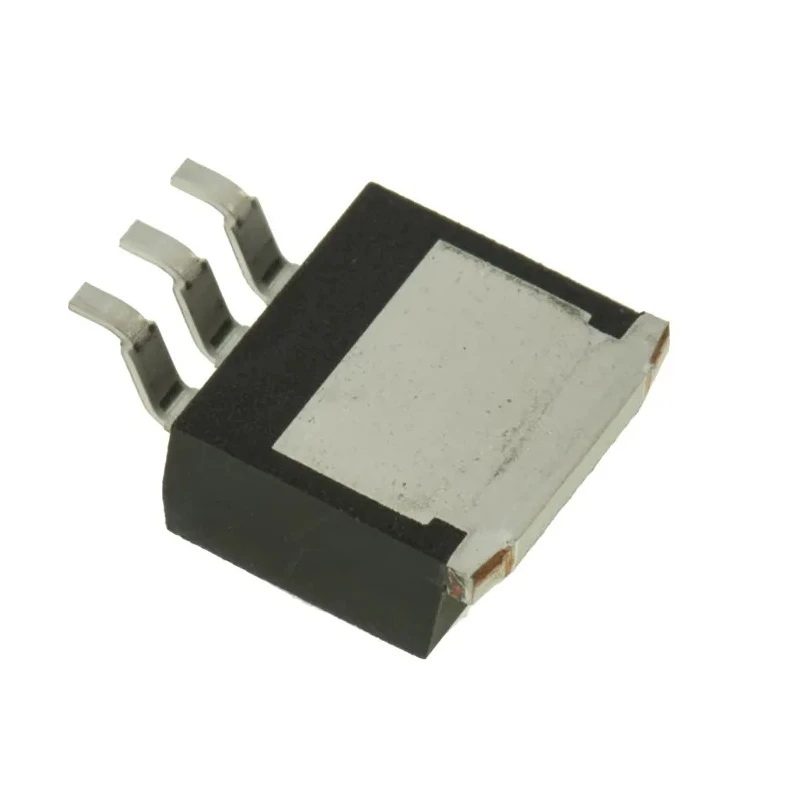

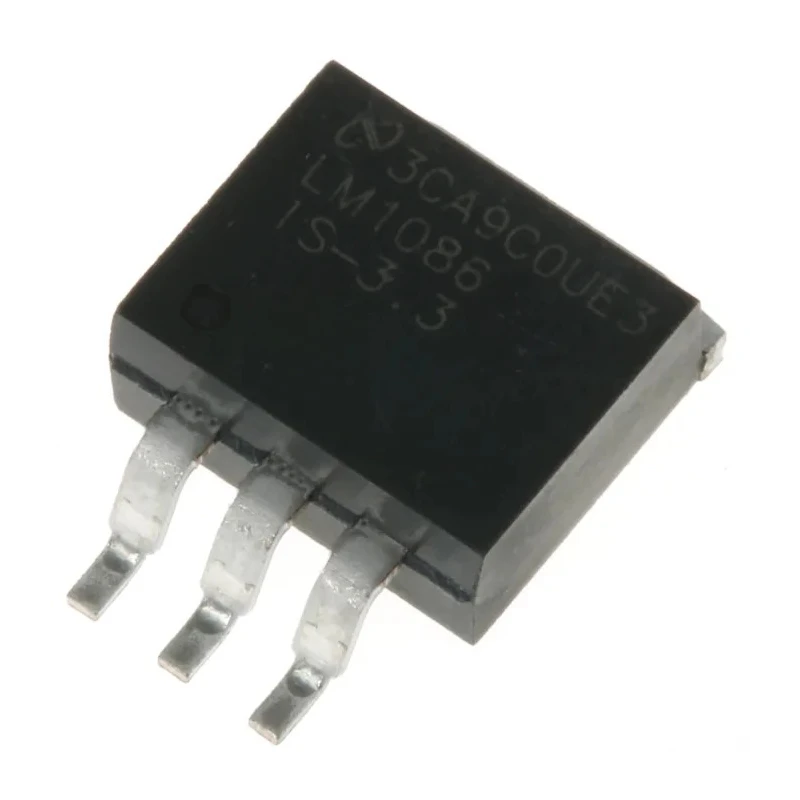

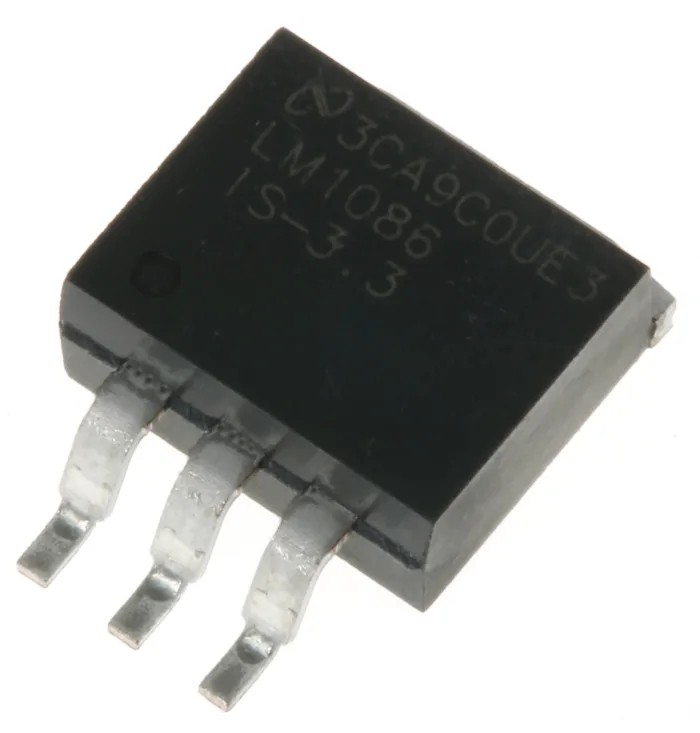

Texas Instruments Voltage Regulator 30V 3-Pin Surface Mount Positive Polarity LM1086IS-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 10.16mm |
| Model | LM1086IS-3.3/NOPB |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM1086 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 2.6V |
| Pin Count | 3 |
Key Features
- The regulator features a low dropout voltage suitable for various applications.
- Designed for 1.5A output current with current limiting and thermal protection.
- Operates within a wide input voltage range from 2.6V to 30V.
- Compact dimensions of 10.16mm length, 8.64mm width, and 4.57mm height enable space-efficient PCB layouts.
- Quiescent current is low, at 5mA, enhancing energy efficiency.
- Maximum operating temperature rating up to 125°C ensures reliability in harsh conditions.
- Part of the LM1086 series optimized for low noise and high power supply rejection ratio.
- Current limiting and thermal shutdown features provide device protection.
Product Description
Texas Instruments LM1086IS-3.3/NOPB is a high-performance LDO (Low Dropout) linear voltage regulator tailored for industrial and electronic component applications requiring stable 3.3V output at currents up to 1.5A. It supports surface mounting, features 3 pins, and operates with positive polarity. This regulator excels with a maximum input voltage of 30V and a minimum input voltage of 2.6V, offering versatility for power management solutions in electronics design.
With its low quiescent current of 5mA, the LM1086IS-3.3/NOPB improves energy efficiency during operation. Its high thermal and current protection capabilities contribute to robust performance under demanding operating environments, including temperatures up to 125°C. The device is compact with dimensions of 10.16mm length, 8.64mm width, and 4.57mm height, facilitating its integration into space-constrained printed circuit boards.
Belonging to the LM1086 series from Texas Instruments, this regulator offers excellent noise reduction and line voltage regulation, important for sensitive electronic circuits requiring smooth and stable voltage supply. It is suitable for applications in power management ICs, embedded systems, industrial automation, and consumer electronics.
The regulator has current limiting and thermal shutdown features for protection. Operates at low dropout, enabling efficient power conversion. Compact surface mount design supports automated PCB assembly. Wide input voltage range enhances flexibility in design.
Ideal for use in industrial, automotive (non-automotive certified), and commercial electronics.
Package includes a single LM1086IS-3.3/NOPB voltage regulator component. This product ensures high reliability and ease of integration in diverse electronic designs requiring efficient voltage regulation.
Explore the Electronics & Electricals category at EnvMart for more high-quality Voltage Regulators and power management components from trusted brands like Texas Instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver a stable output current of up to 1.5A.
It operates within a wide input voltage range from 2.6V to 30V.
The regulator has compact dimensions of 10.16mm in length, 8.64mm in width, and 4.57mm in height.
The quiescent current is low at 5mA, which enhances energy efficiency during operation.
It has a maximum operating temperature rating of up to 125°C, ensuring reliability in harsh conditions.
This model supports surface mounting, making it suitable for automated PCB assembly.
It includes current limiting and thermal shutdown features to protect the device during operation.
This voltage regulator is part of the LM1086 series, optimized for low noise and high power supply rejection ratio.
It operates with positive polarity, suitable for various electronic applications.
It is suitable for applications in power management ICs, embedded systems, industrial automation, and consumer electronics.
This voltage regulator features a 3-pin design.
The country of origin for this model is India.
