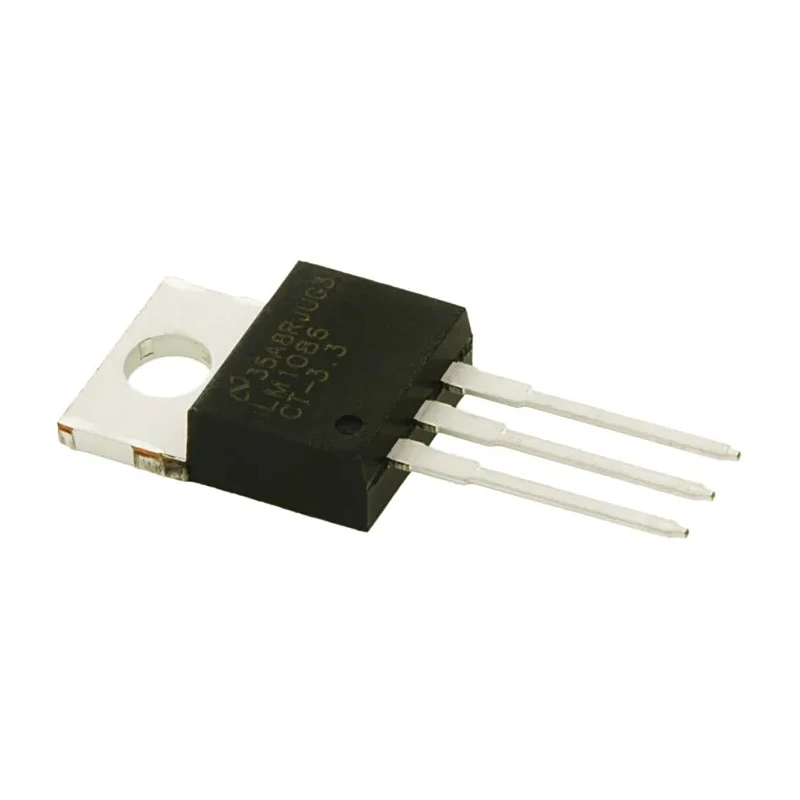

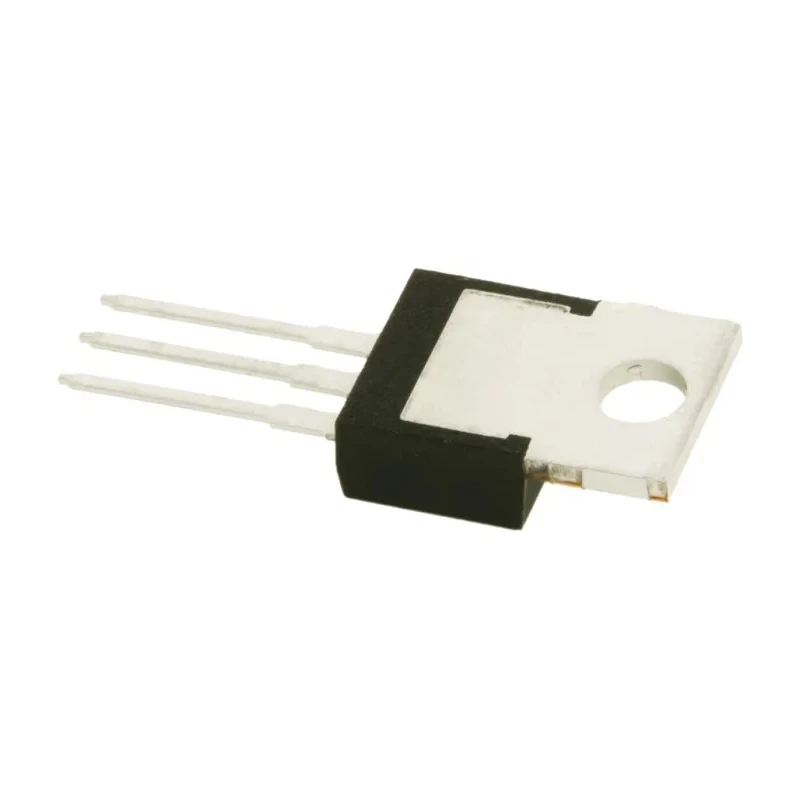

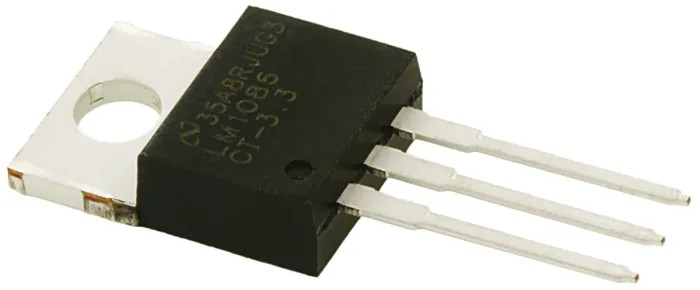

Texas Instruments Low Dropout (LDO) Linear 30V Voltage Regulator TO-220 3-Pin 1.5A LM1086CT-3.3/NOPB

Texas Instruments LM1086CT-3.3/NOPB is a Low Dropout (LDO) linear voltage regulator designed for applications requiring stable 3.3V output with up to 1.5A load current. This regulator is housed in a TO-220 3-pin package making it suitable for through-hole mounting allowing easy integration on printed circuit boards.

With a maximum input voltage of 30V and minimum input voltage down to 2.6V, it supports a broad range of power supply inputs.

The device features low quiescent current of 5mA minimizing power losses and heat generation, complemented by built-in current limiting and thermal shutdown protections for robust operation under fault conditions.

The compact physical dimensions of approximately 10.16mm length, 4.7mm width, and 8.89mm height enable space-efficient designs suitable for industrial, electronic components, and power management circuit applications.

Low dropout linear regulation with 1.5A output current capability. Positive polarity design for general voltage regulation needs. Thermal shutdown and current limiting for increased device reliability. RoHS compliant ensuring compliance with environmental regulations.

High operating temperature tolerance up to 125°C for demanding environments. TO-220 through-hole package facilitating mounting and heat dissipation. Applicable in automotive, industrial electronics, and power supply designs requiring precise voltage regulation.

Designed for use in electronic systems needing stable voltage control and noise reduction.

Choose Texas Instruments LM1086CT-3.3/NOPB for reliable 3.3V voltage regulation in a compact, robust package ideal for industrial and electronic power management circuits. Explore the full range of voltage regulators at EnvMart to suit diverse application requirements.
