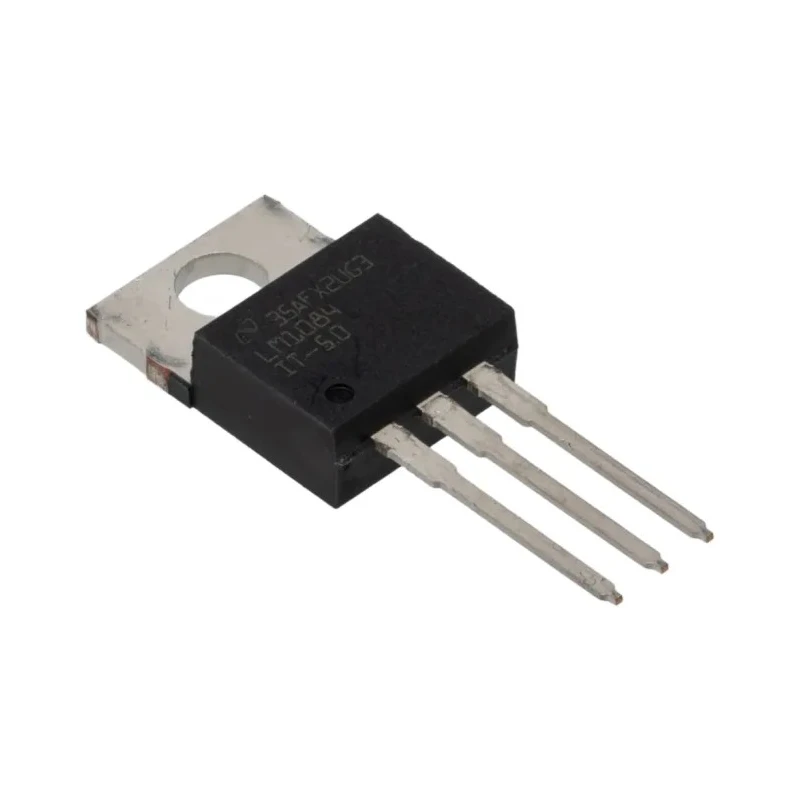

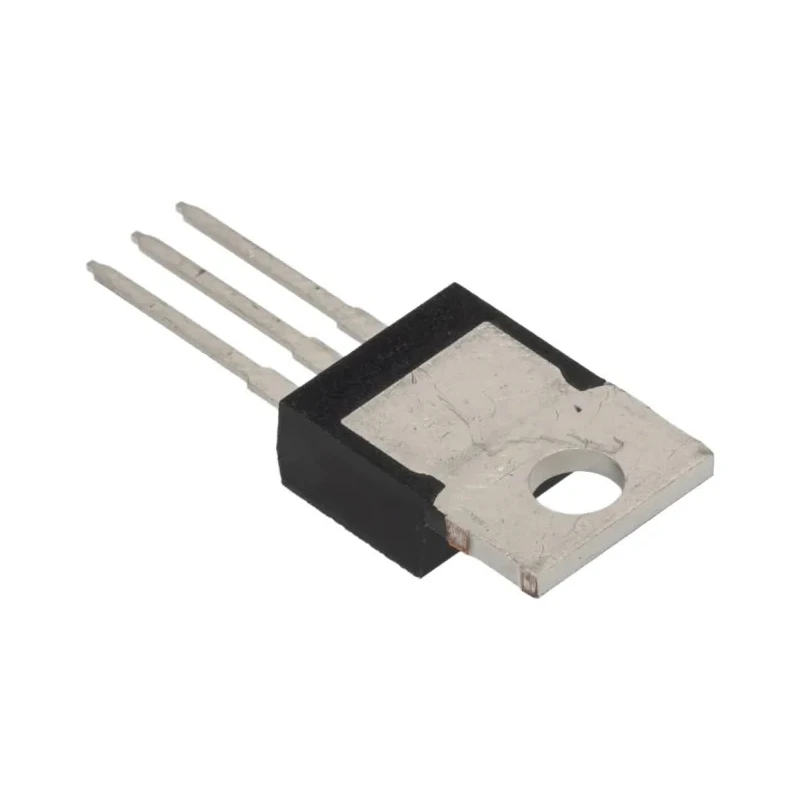

Texas Instruments Voltage Regulator 25V TO-220 3-Pin LM1084IT-5.0/NOPB

Texas Instruments LM1084IT-5.0/NOPB is a high-performance voltage regulator designed to provide a stable 5V output with a maximum input voltage of 25V. Packaged in a TO-220 3-pin form factor, this device is well-suited for applications requiring efficient power management and precise voltage regulation.

The LM1084 series are LDO (Low Dropout) linear regulators capable of operating with a small differential between input and output voltage, making them ideal for systems where traditional regulators fall short. Texas Instruments has enhanced this series with low quiescent current of 5mA and reduced output noise, thereby improving overall circuit stability and noise immunity.

This regulator features a positive polarity and through-hole mounting style, facilitating easy assembly onto printed circuit boards (PCBs). Its compact size, with dimensions approximately 8.89mm in height and 10.16mm in length, allows usage in space-constrained applications.

The LM1084IT-5.0/NOPB maintains high reliability and durability with a maximum operating temperature rating of 125°C. It supports current loads up to 5A, making it capable of powering various motors, LEDs, and other components with steady voltage regulation.

Low dropout linear voltage regulator design for power efficiency. Maximum input voltage of 25V supports a wide range of power supplies. Reduced quiescent current of 5mA to conserve energy. TO-220 3-pin package ensures mechanical robustness and heat dissipation.

Wide operating temperature range suitable for industrial and commercial environments. Positive polarity for standard linear regulator circuits. Through hole mount type for secure PCB installation. Compact dimensions ideal for constrained spaces.

This voltage regulator is extensively used in electronics, power management, industrial controls, and embedded systems where maintaining a reliable and steady voltage is critical. Its straightforward design simplifies circuit layout while providing robust performance.
