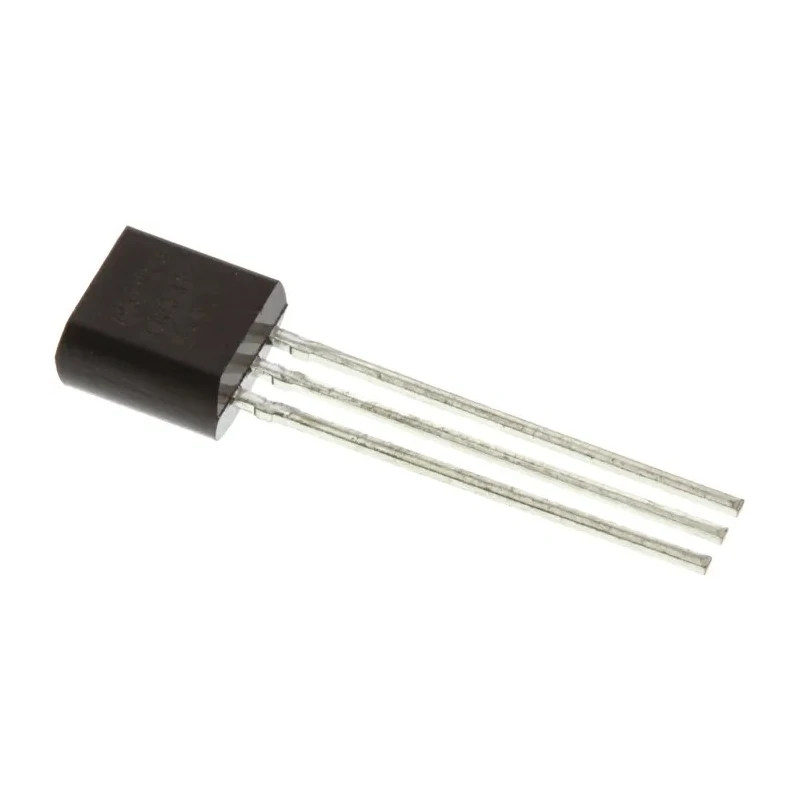

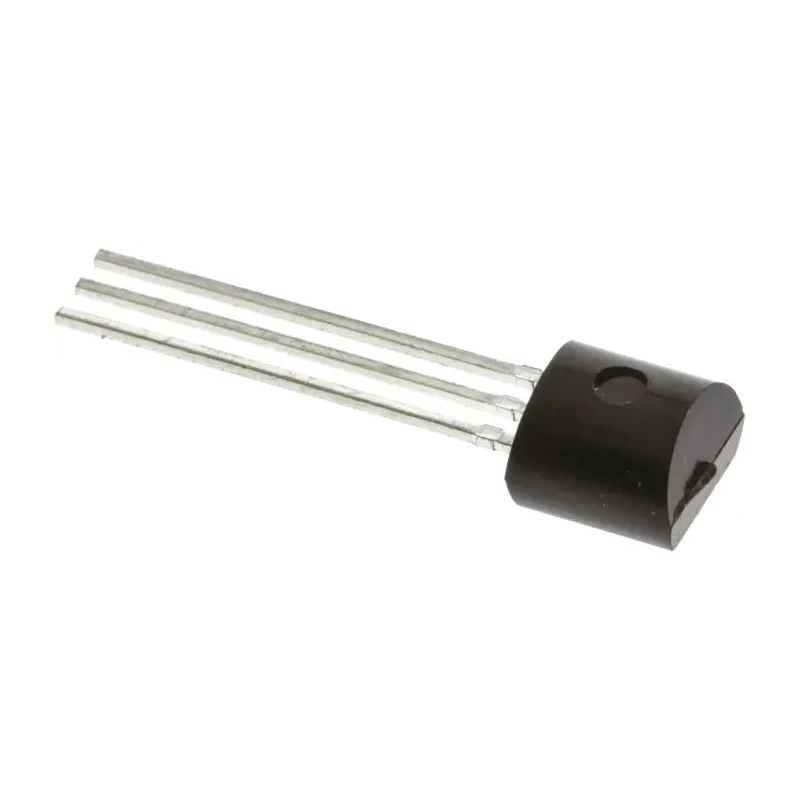

Texas Instruments Precision Shunt Voltage Reference 5V TO-92 Package ±1% Accuracy 3-Pin LM336Z-5.0/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | LM336Z-5.0/NOPB |
| Mount Type | Through Hole |
| Output type | Adjustable |
| Series | LM336 |
| Temperature Coefficient | 20 ppm/°C |
| Output Current | 10mA |
| Topology | Shunt |
| Maximum Operating Temperature | 70°C |
| Package Type | TO-92 |
| Load Regulation | 20 mV |
| Minimum Operating Temperature | 0°C |
| Reference Type | Precision |
| Maximum Input Voltage | 5.1V |
| Minimum Input Voltage | 4.9V |
| Pin Count | 3 |
| Reference Voltage | 5V |
| Initial Accuracy | ±1 % |
Key Features
- Operates with a reference voltage of 5 volts for precise voltage regulation.
- Features an initial accuracy of ±1% and a temperature coefficient of 20 ppm/°C for dependable performance.
- Designed as a shunt topology device suitable for through-hole mounting options.
- Supports a maximum output current of 10 mA and operates within a temperature range of 0°C to 70°C.
- Compact TO-92 package dimensions of 5.2 mm in height and length ensure space-efficient design.
- Offers load regulation of 20 mV, supporting consistent voltage under varying loads.
- Compatible with a maximum input voltage of 5.1 V and a minimum input voltage of 4.9 V.
- Ideal for applications needing fixed and adjustable precision voltage references in power management circuits.
Product Description
Texas Instruments LM336Z-5.0/NOPB is a precision shunt voltage reference IC featuring a fixed 5V output with ±1% initial accuracy and a temperature coefficient of 20 ppm/°C, housed in a compact TO-92 package with three pins designed for through-hole mounting. This device is engineered for precise voltage regulation in power management applications, supporting output currents up to 10 mA.
The device operates within a temperature range of 0°C to 70°C and supports a maximum input voltage of 5.1 V, making it suitable for stable performance across common environmental conditions. The 3-pin shunt topology ensures easy integration and reliable output stability with a load regulation value of 20 mV.
This shunt voltage reference is ideal for industrial, laboratory, electronic component design, and power supply applications where precise voltage stability and accuracy are critical. Its TO-92 package dimensions of 5.2 mm height and length enable compact circuit board layouts. As a product of Texas Instruments, it ensures quality and reliability for demanding electronic designs.
Operates at a reference voltage of 5V output with adjustable type output. Features precise ±1% initial accuracy and low temperature coefficient for stable regulation. Supports 10 mA maximum output current with 3-pin TO-92 package.
Provides 20 mV load regulation to maintain voltage stability. Operating temperature range from 0°C to 70°C for versatile usage. Designed for through-hole mount for easy PCB installation. Suitable for electronic circuits requiring fixed voltage reference.
Compact physical dimensions for space-efficient designs.
Choose this Texas Instruments voltage reference for trusted quality and precision in your electronic and power management projects. Browse more Voltage Reference ICs and power management components at EnvMart for reliable solutions tailored to industrial and commercial applications.
