Infineon 512 kB Ferroelectric RAM Memory 8-Pin SOIC, Surface Mount, AEC-Q100 FM24V05-G

Free Delivery in India | Lowest Global Shipping Charges

Infineon 512 kB Ferroelectric RAM Memory 8-Pin SOIC, Surface Mount, AEC-Q100 FM24V05-G

Name: Infineon 512 kB Ferroelectric RAM Memory 8-Pin SOIC, Surface Mount, AEC-Q100 FM24V05-G
Brand: Infineon
SKU: 194841
Price: 12.59 USD
Availability: InStock



Category Memory Chips Brand Infineon Condition New

Specifications

Country of Origin	United States
Brand	Infineon
Height	1.38mm
Length	4.97mm
Model	FM24V05-G
Width	3.98mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Memory size	512kB
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2V
Maximum Clock Frequency	3.4MHz
Organisation	64k x 8 Bit
Number of Bits per Word	8
Maximum Random Access Time	450ns
Number of Words	64K

Key Features

Non-volatile memory with high-speed access and low power usage.
512 kB memory size organized as 64k x 8 bits.
Maximum clock frequency of 3.4 MHz ensuring fast read/write operations.
Automotive-grade quality with AEC-Q100 qualification.
Operating temperature range from -40°C to 85°C for robust performance.
8-bit data bus width for efficient data transfer.
Maximum supply voltage of 3.6 V and minimum of 2 V.
Designed for surface mount applications on PCBs.

Product Description

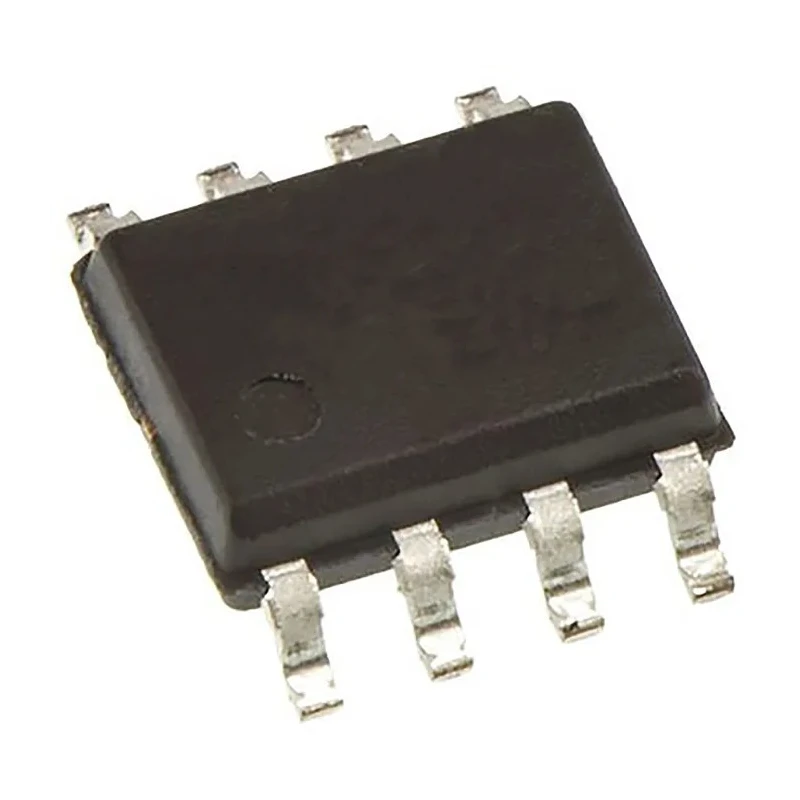

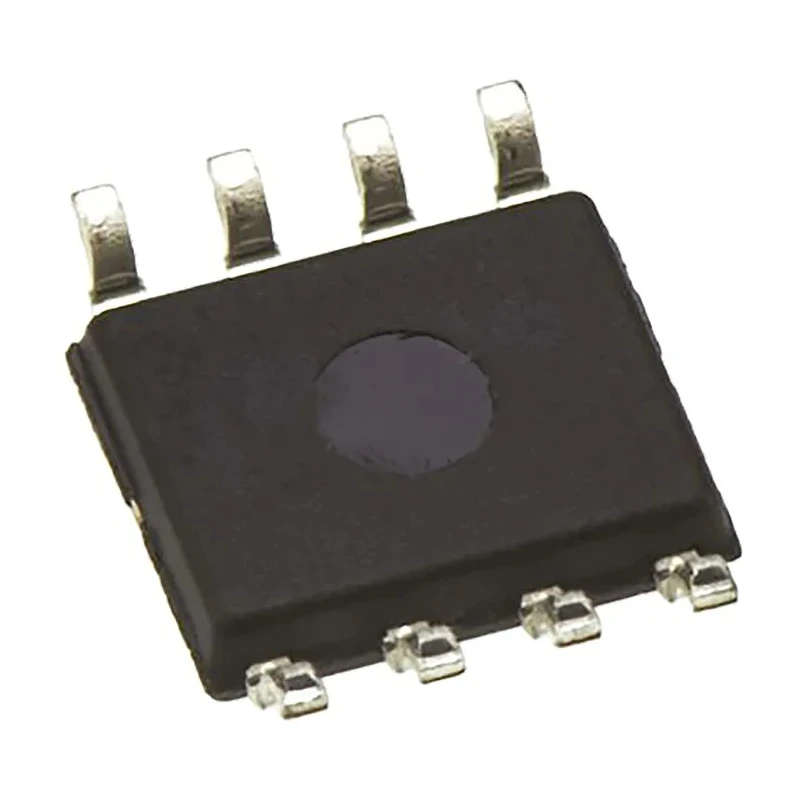

Infineon FM24V05-G is a 512 kB Ferroelectric Random Access Memory (FRAM) device packaged in an 8-pin SOIC form factor designed for surface mount applications. This non-volatile FRAM offers a high endurance, low power consumption memory solution with fast write speeds, suitable for industrial, automotive, and embedded systems.

The memory organization is 64k x 8 bits with an 8-bit data bus width and a maximum clock frequency of 3.4 MHz, enabling rapid data access and efficient storage. It operates reliably within a wide temperature range of -40°C to 85°C, meeting AEC-Q100 automotive quality standards, making it ideal for automotive and harsh environment applications.

This FRAM device features a maximum random access time of 450 ns and supports a supply voltage range from 2 V to 3.6 V. Its compact physical dimensions (4.97 mm length, 3.98 mm width, and 1.38 mm height) facilitate integration into space-constrained PCB layouts.

FRAM technology combines the non-volatility of ROM with the speed and endurance of RAM, providing excellent tamper resistance and energy efficiency. It is widely used in smart cards, cellular phones, and advanced embedded applications requiring secure, low-power memory solutions.

Non-volatile memory technology for persistent data storage. Fast write speed and high endurance for frequent rewriting. Low power consumption suitable for battery-powered devices. Compliant with automotive-grade AEC-Q100 standard.

Compact 8-pin SOIC surface mount package. Robust performance over wide operating temperature range.

This product is manufactured in the United States by Infineon, ensuring adherence to stringent quality standards. It is suitable for industrial automation, automotive electronics, medical devices, and other critical embedded systems requiring reliable memory solutions.
