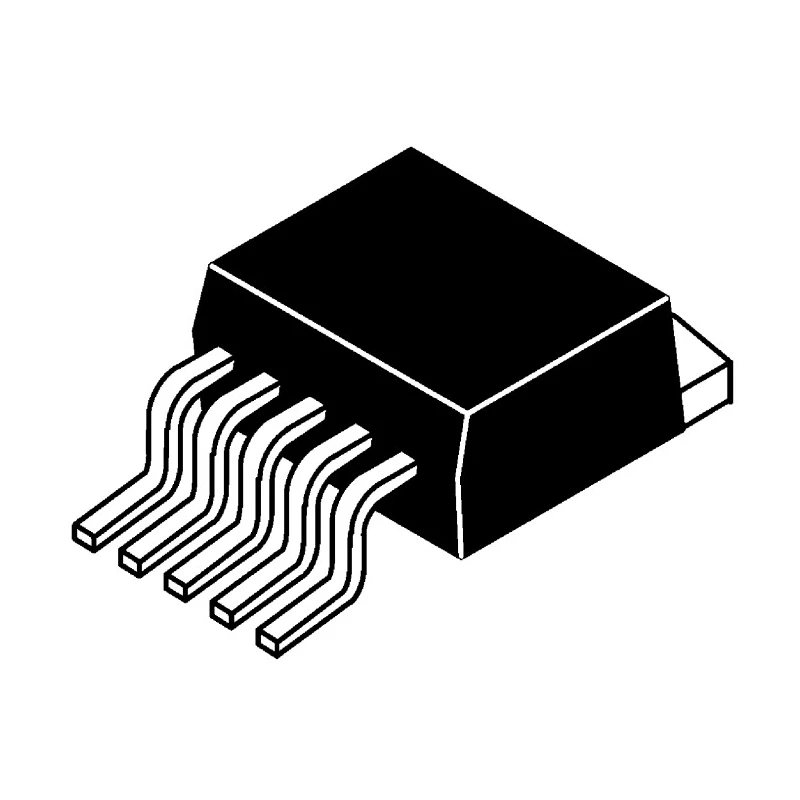

Texas Instruments Boost Converter, Surface Mount, 12.6V Output Voltage, 5 A Output Current LM2587S-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 90% |
| Length | 10.16mm |
| Model | LM2587S-ADJ/NOPB |
| Depth | 4.57mm |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM2587 |
| Output Current | 5A |
| Package Type | TO-263 |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | 125°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Line Regulation | 100 mV |
| Standards/Approvals | JEDEC, RoHS |
| Minimum Input Voltage | 4V |
| Number of Pins | 5 |
| Output Voltage 1 | 12.6V |
| Output Voltage 2 | 5.25V |
| Wide Input Voltage Range | 4V to 40V |
| Output voltage versions | 5V, 12V, and adjustable |
Key Features
- The device belongs to the LM258x SIMPLE SWITCHER® regulator series, supporting flyback, step-up (boost), SEPIC, and forward converter applications.
- It operates over a wide input voltage range from 4V to 40V, suitable for various power conditions.
- High efficiency of 90% ensures optimized power usage and reduced heat generation.
- The converter features a robust protection system including current limit, under voltage lockout, and thermal shutdown.
- Compact TO-263 package with 5 pins enables easy surface mounting in space-constrained electronics.
- System output voltage tolerance is ±4% max over line and load conditions for stable voltage output.
- Internal soft-start function reduces in-rush current during startup, enhancing reliability.
- Designed to meet JEDEC and RoHS standards for quality and environmental compliance.
Product Description
Texas Instruments LM2587S-ADJ/NOPB Boost Converter is a surface mount DC/DC switching regulator designed to deliver a precise output voltage of 12.6V with an output current capacity of 5 A. It is part of the renowned LM258x SIMPLE SWITCHER® regulator series known for high efficiency and reliable power conversion.
This boost converter is engineered for flyback, step-up (boost), SEPIC, and forward converter applications, requiring minimal external components. It supports a wide input voltage range from 4V to 40V, making it suitable for diverse industrial and electronic power supply needs.
The device operates with high efficiency of around 90% and includes features like internal soft-start to reduce inrush current on startup. It protects the system with current limit, under voltage lockout, and thermal shutdown to enhance durability and safe operation. Its output voltage tolerance of ±4% maximum maintains voltage stability even with varying line and load conditions.
Packaged in a compact TO-263 surface mount enclosure with 5 pins, the converter is easy to integrate into modern electronic assemblies. It complies with JEDEC and RoHS standards, ensuring quality and environmental safety.
This converter is ideal for industrial automation, laboratory instrumentation, power supplies, and other electronic applications requiring steady DC voltage boosting with high reliability.
The converter belongs to the LM258x SIMPLE SWITCHER® regulator series for versatile DC/DC power management. Wide input voltage range between 4V to 40V supports multiple power scenarios. Output voltage versions include 5V, 12V, and adjustable options.
Surface mount TO-263 package with 5 pins ensures compact and efficient integration. Protected by current limit, undervoltage lockout, and thermal shutdown features. Internal soft-start function reduces startup inrush current.
System output voltage tolerance ±4% max over line and load. Operating temperature range up to 125°C supports harsh environments. Compliant with JEDEC and RoHS standards. Explore our catalog for additional Texas Instruments DC/DC converters suitable for industrial, manufacturing, laboratory, and electronic component applications at EnvMart.
