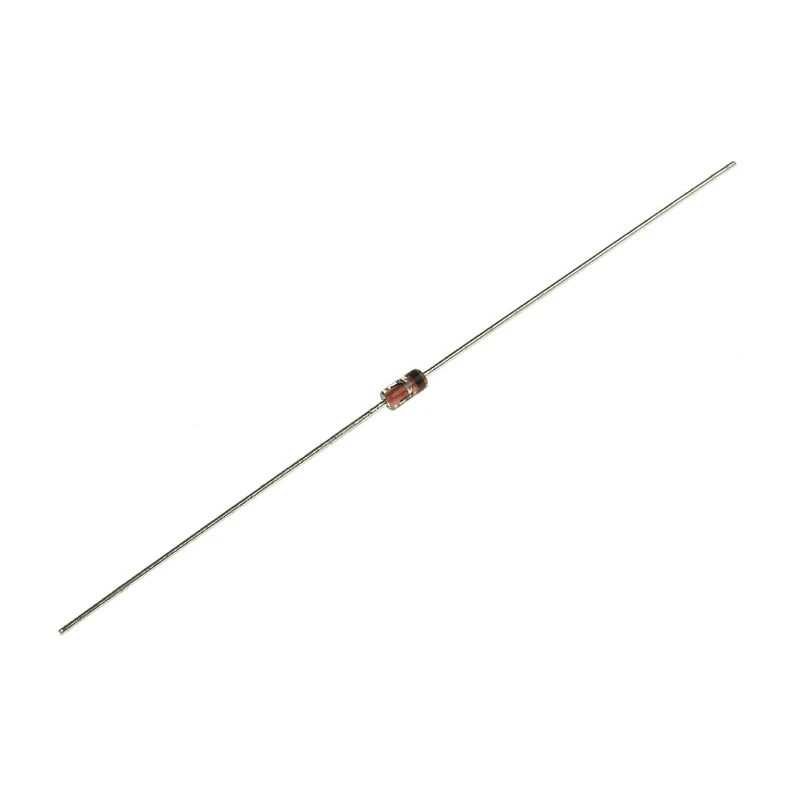

Nexperia 1, 2.7 V Zener Diode, Single 500 mW 5% Through Hole 2-Pin SOD-27 BZX79-C2V7,113

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1, 2.7 V Zener Diode, Single 500 mW 5% Through Hole 2-Pin SOD-27 BZX79-C2V7,113

Name: Nexperia 1, 2.7 V Zener Diode, Single 500 mW 5% Through Hole 2-Pin SOD-27 BZX79-C2V7,113
Brand: Nexperia
SKU: 194671
Price: 0.03 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.85mm
Length	4.25mm
Model	BZX79-C2V7,113
Mount Type	Through Hole
Series	BZX79
Maximum Operating Temperature	200°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	20μA
Nominal Zener Voltage Vz	2.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	100Ω
Typical Voltage Temperature Coefficient	-2mV/°C
onsemi 1, 2.7 V Zener Diode, Single 500 mW 5 % Through Hole 2-Pin SOD-27Brand	onsemi

Key Features

The diode features a through hole mount type with a 2-pin SOD-27 package.
It has a Zener voltage tolerance of ±5% ensuring reliable voltage regulation.
The diode operates within a temperature range of -65°C to 200°C.
It has a maximum reverse leakage current of 20μA maintaining efficient performance.
The maximum Zener impedance is 100Ω for controlled voltage and current characteristics.
The test current is 5mA, optimized for stable operational characteristics.
Its typical voltage temperature coefficient is -2mV/°C stabilizing voltage under temperature changes.
The compact dimensions include a length of 4.25mm and height of 1.85mm.

Product Description

Nexperia BZX79-C2V7,113 is a Zener diode specifically designed for voltage regulation applications. It features a nominal Zener voltage of 2.7 V and can dissipate a maximum power of 500 mW, housed in a 2-pin SOD-27 through hole package.

This single element diode ensures precise and stable voltage regulation with a 5% tolerance on the Zener voltage. It operates effectively over a wide temperature range of -65°C to 200°C, making it suitable for demanding industrial and electronic environments.

The device maintains low maximum reverse leakage current at 20μA and a maximum Zener impedance of 100Ω, ensuring excellent electrical stability. The test current rating of 5mA is ideal for typical applications requiring tight regulation and minimal power loss.

Physical dimensions include a compact length of 4.25mm and height of 1.85mm, making it suitable for space-constrained circuits. The typical voltage temperature coefficient of -2mV/°C improves performance consistency in varying thermal conditions.

This Zener diode is widely applicable in electronics manufacturing, power supply circuit design, industrial instrumentation, and instrumentation calibration. Its robust thermal and electrical parameters make it an ideal choice for reliable voltage regulation in complex electronic systems.

The diode features a through hole mount type with a 2-pin SOD-27 package. Single element chip configuration for consistent voltage regulation. Wide operating temperature range from -65°C to 200°C. Maximum power dissipation of 500 mW compatible with low-power circuits.

Maximum reverse leakage current of 20μA ensures electrical efficiency. Nominal Zener voltage of 2.7 V with ±5% tolerance. Compact dimensions with length 4.25mm and height 1.85mm. Typical voltage temperature coefficient of -2mV/°C for thermal stability.
