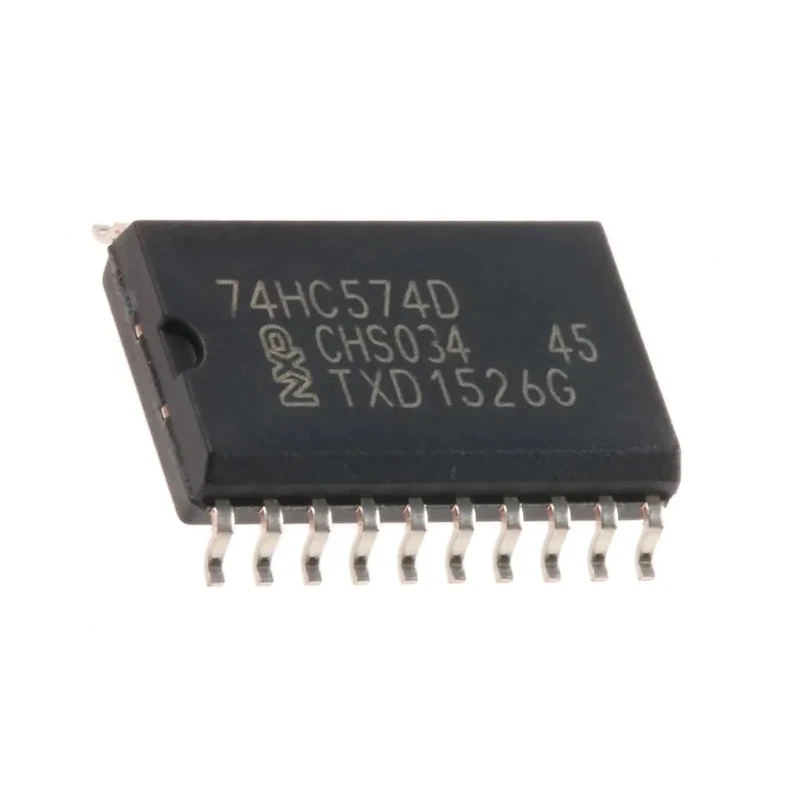

Nexperia 8 Octal D Type Flip Flop HC 3-State 20-Pin SOIC 24MHz 74HC574D,652
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Nexperia |
| Height | 2.45mm |
| Length | 13mm |
| Model | 74HC574D,652 |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74HC |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Trigger Type | Positive Edge |
| Standards/Approvals | JEDEC No. 7A |
| Pin Count | 20 |
| Number of Elements per Chip | 8 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Minimum Supply Voltage | 2V |
| Maximum Propagation Delay Time @ CL | 45ns |
| Clock frequency | 24MHz |
| Flip-Flop Type | Type D |
| Nexperia 74HC574D,652 Octal D Type Flip Flop IC, 3-State, 20-Pin SOICBrand | Nexperia |
Key Features
- The device contains 8 D-type flip-flops with positive edge triggering.
- It operates within a supply voltage range of 2V to 6V.
- The output enable input sets outputs to a high-impedance OFF state when HIGH.
- Included clamp diodes protect inputs and allow interfacing with voltages exceeding VCC.
- The IC is designed for frequency division, controlled delays, and synchronous system interfacing.
- It complies with JEDEC No. 7A standards and operates between -40°C and 125°C.
- The package dimensions are 13mm in length and 2.45mm in height for surface mounting.
Product Description
Nexperia 74HC574D,652 8 Octal D Type Flip Flop HC is a high-performance logic IC featuring 8 positive-edge triggered D-type flip-flops with 3-state outputs in a 20-pin SOIC surface-mount package. It operates at a maximum clock frequency of 24MHz and supports a wide supply voltage range of 2V to 6V, making it suitable for diverse electronic applications.
The flip-flops latch individual D-input states during the LOW-to-HIGH clock (CP) transition, while the output enable (OE) input controls output states, allowing outputs to enter a high-impedance state when enabled. Clamp diodes are integrated on inputs enabling protection and the use of current limiting resistors for interfacing with voltages above VCC.
The device provides improved signal integrity through integrated termination resistors and offers high noise immunity. It supports mixed 5V and 3.3V applications and features wide operating temperature tolerance from -40°C to 125°C, suitable for industrial environments.
Common industrial and electronic use cases include frequency division, controlled delay circuits, and interfacing asynchronous and synchronous systems. It complies with JEDEC No. 7A standards ensuring quality and interoperability.
The IC includes 8 D-type flip-flops with positive edge triggering. Outputs are 3-state, allowing bus sharing through output enable controls. Operating voltage ranges from 2V minimum to 6V maximum supply. Surface mount SOIC 20-pin package with compact dimensions of 13mm length and 2.45mm height.
Maximum propagation delay time is 45ns at standard load conditions. Operating temperature range from -40°C to 125°C ensures reliable performance in various environments. Integrates clamp diodes and source termination resistor options enhancing signal robustness.
Designed for seamless integration in frequency division and timing control circuits. Explore additional semiconductor and logic IC solutions in the EnvMart Electronics & Electricals category for comprehensive product selection.
Explore more products in our Flip Flop ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the Nexperia 74HC574D,652 is 24MHz.
It operates within a supply voltage range of 2V to 6V.
This model features 3-state outputs, allowing for bus sharing through output enable controls.
The package dimensions are 13mm in length and 2.45mm in height.
It operates within an ambient temperature range from -40°C to 125°C.
This model contains 8 D-type flip-flops with positive edge triggering.
It features single-ended inputs and utilizes positive edge triggering.
The maximum propagation delay time is 45ns at standard load conditions.
It complies with JEDEC No. 7A standards, ensuring quality and interoperability.
This model is designed for surface mounting in a 20-pin SOIC package.
It is suitable for applications such as frequency division, controlled delay circuits, and interfacing asynchronous and synchronous systems.
The device includes integrated clamp diodes and source termination resistors that enhance signal robustness and integrity.
