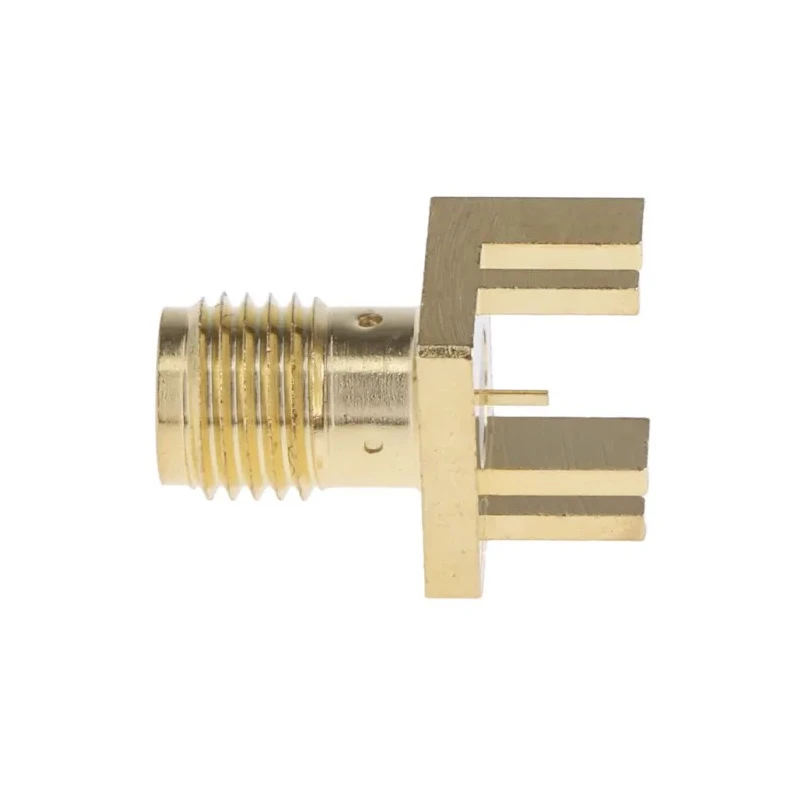

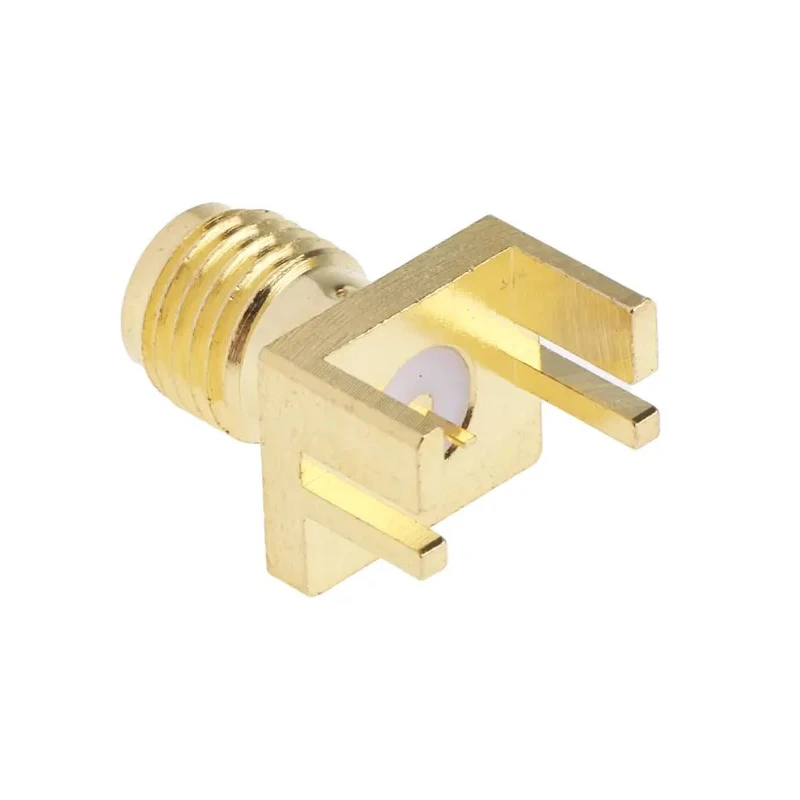

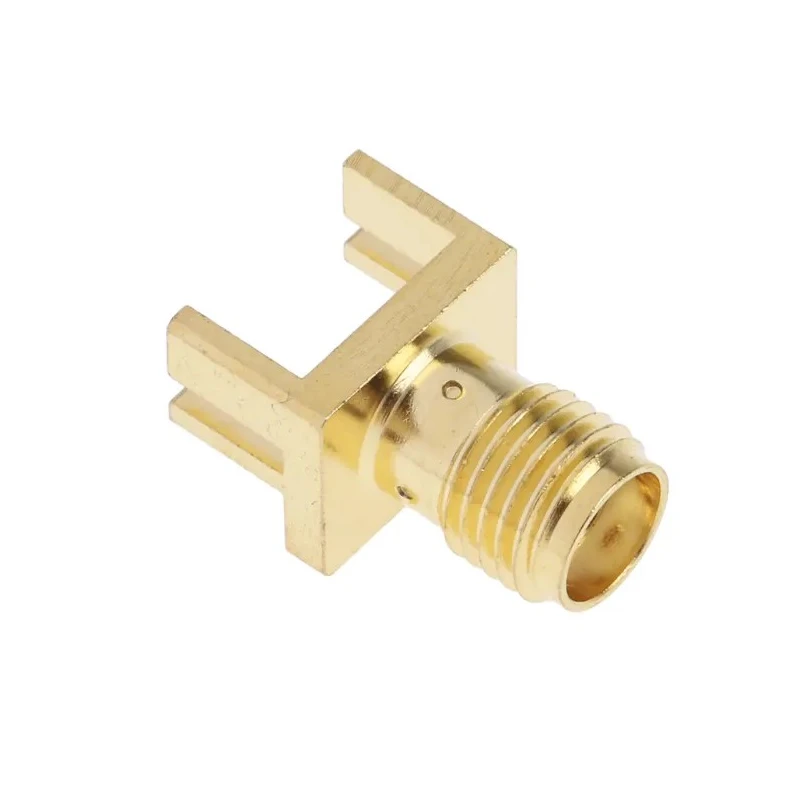

RS PRO SMA Coaxial Connector Edge Female, 50 Ω, Straight Body Solder 526-5763
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 526-5763 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body SolderBrand | RS PRO |
Key Features
- High-quality gold plated body and beryllium copper contacts enhance signal integrity.
- Edge mount type ensures efficient mounting on PCB edges.
- Wide operating temperature range from -65°C to 165°C.
- Designed for use in Wi-Fi antenna and RF applications.
- Subminiature size with a reliable solder termination.
- Compatible with SMA plugs offering secure screw-on connection.
Product Description
RS PRO 526-5763 is a high-performance SMA Coaxial Connector designed for edge mounting on printed circuit boards. This edge female connector provides a 50 Ω impedance and straight body solder termination, ensuring secure and efficient RF signal connections up to 18 GHz frequency.
Constructed with a gold plated body and beryllium copper contacts, it offers superior conductivity and corrosion resistance. The connector is subminiature in size, suited for compact PCB designs, and supports a PCB thickness of 1.2 mm.
The operating temperature range of -65°C to 165°C makes this product reliable for a variety of industrial, telecommunications, and laboratory applications involving high-frequency RF signals.
This edge launcher is ideal for board-to-board connections in Wi-Fi antenna systems and similar RF communication devices, providing secure and soldered mounting. Its gold plating on both body and contacts along with a Teflon insulator ensures consistent performance and durability under demanding environmental conditions.
High-quality gold plated body and beryllium copper contacts enhance signal integrity. Edge mounting design enables efficient PCB edge installation. Wide frequency range up to 18 GHz for superior RF applications. Operating temperature from -65°C to 165°C supports various environments.
Subminiature size with solder termination for compact and reliable connections. Gold plating and Teflon insulation provide durability and stable performance.
This SMA connector is manufactured in Taiwan, Province Of China, and is trusted for quality and consistency in electronic component assemblies. It is an essential component for electronic, telecommunications, and RF engineering projects requiring precise signal transmission.
Explore more SMA Coaxial Connectors and electronic components at EnvMart to find the most suitable solutions for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This SMA coaxial connector has a maximum operating frequency of 18 GHz, making it suitable for high-frequency RF applications.
The impedance of this connector is 50 Ω, which is standard for many RF applications.
It operates within a wide temperature range from -65°C to 165°C, allowing it to function in various environmental conditions.
The connector features a gold plated body and beryllium copper contacts, enhancing conductivity and corrosion resistance.
This model uses a solder termination type, ensuring a secure and reliable connection.
It is designed for edge mounting on printed circuit boards, facilitating efficient installation in compact spaces.
This connector is classified as subminiature, making it suitable for compact PCB designs.
The connector has a female contact gender, allowing it to connect with SMA plugs securely.
This SMA coaxial connector is manufactured in Taiwan, Province Of China.
It is designed for use in Wi-Fi antenna systems and RF communication devices, providing reliable signal transmission.
The connector includes a Teflon insulator, which contributes to its durability and stable performance under various conditions.
This model has a straight orientation, which is typical for many coaxial connections.
