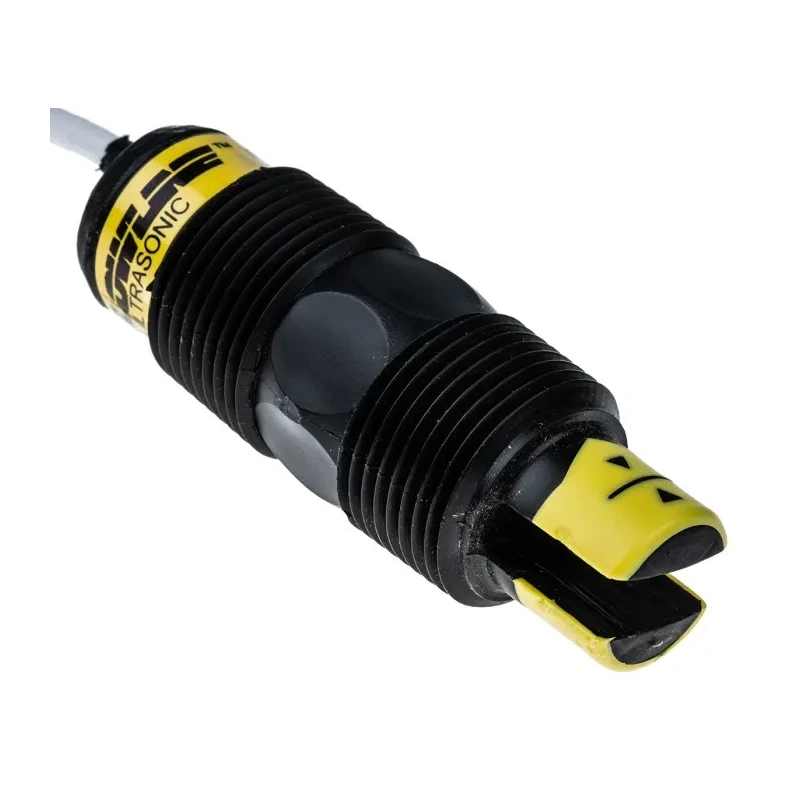

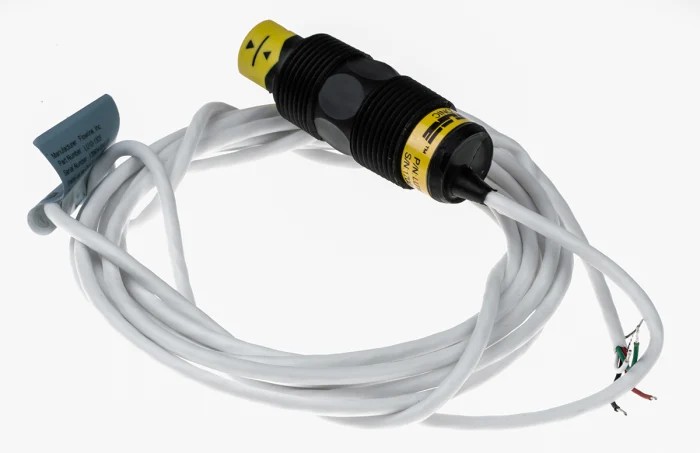

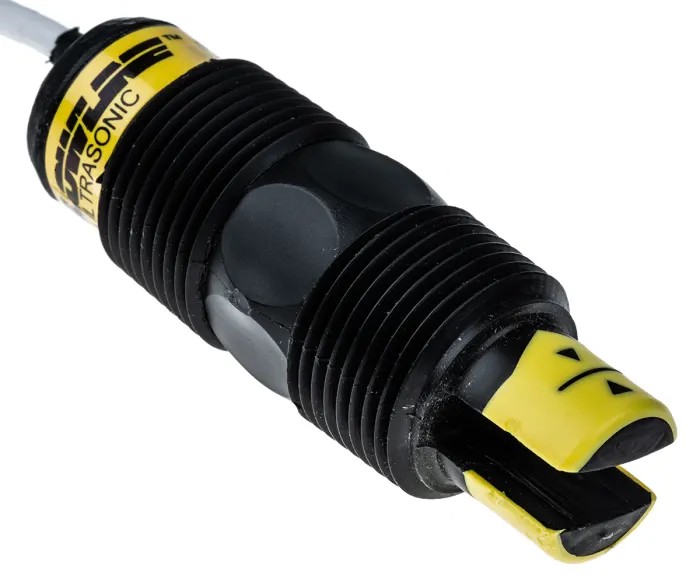

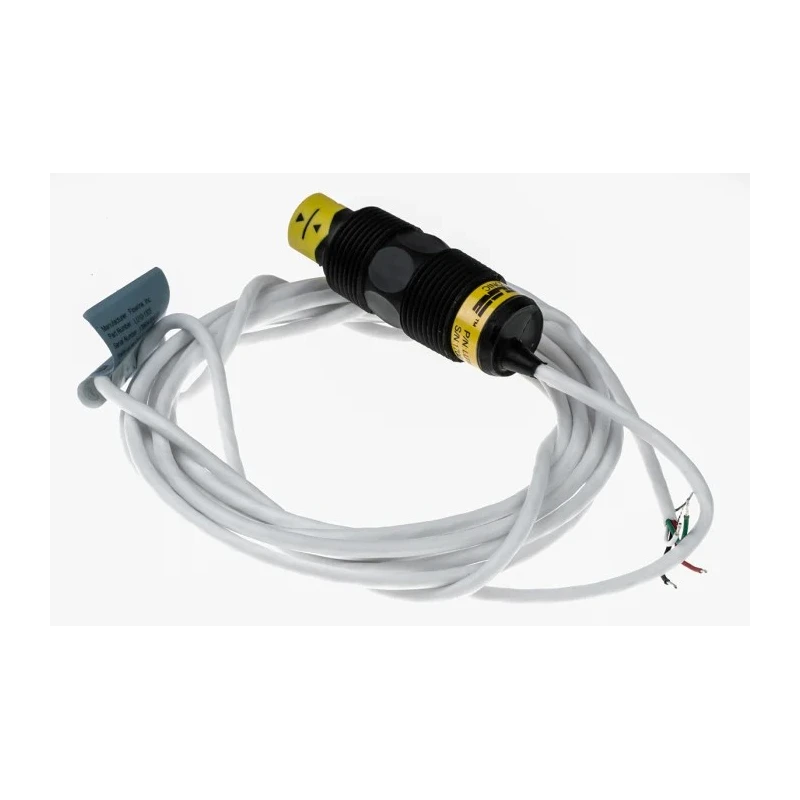

Flowline Switch-Tek Series Ultrasonic Level Switch Vertical Mount Polypropylene Housing LU10
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Flowline |
| Model | LU10 |
| Cable Length | 3m |
| Mount Type | Vertical |
| Housing Material | Polypropylene |
| Series | Switch-Tek |
| Maximum Operating Temperature | 80°C |
| Maximum Pressure | 10bar |
| Minimum Operating Temperature | -40°C |
| Device Type | Ultrasonic Level Switch |
| Maximum dc Voltage | 36V dc |
| Standards/Approvals | Groups A, Groups E, Class III, Class II, Class I |
| Gasket Material | Fluorelastomer |
Key Features
- The sensor is suitable for chemically aggressive and solvent-based liquids.
- It features a vertical mount type for versatile tank installation.
- Polypropylene housing ensures robust corrosion resistance.

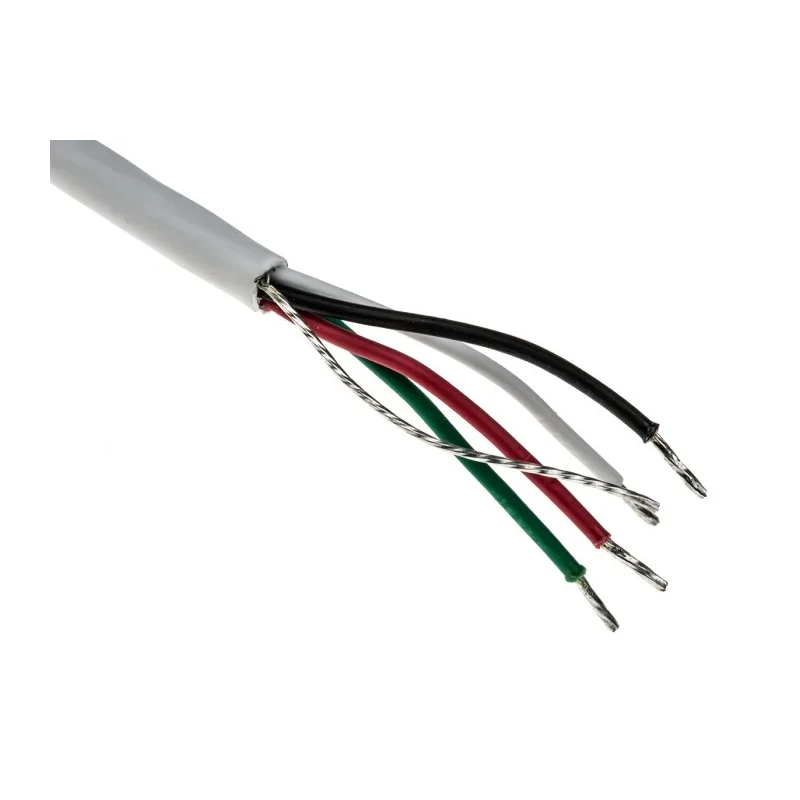

- Includes 3 meters cable length for flexible connectivity.
- Operates in temperature range from -40°C to 80°C safely.
- Rated maximum pressure of 10 bar for demanding process conditions.
- Maximum DC voltage of 36V DC compatible with low voltage control systems.
- No hazardous area certification but CSA approved for groups A, E, and various classes.
Product Description
Flowline LU10 Ultrasonic Level Switch from the Switch-Tek Series is a premium ultrasonic level sensor designed for vertical mounting applications in industrial liquid level detection. The unit features a durable polypropylene housing and fluorelastomer gasket, ensuring compatibility with chemically aggressive, solvent, hydrocarbon, and petroleum-based liquids.
This intrinsically safe sensor incorporates a 3-meter cable and operates within a temperature range between -40°C and 80°C. It is rated for a maximum pressure of 10 bar and supports a maximum DC voltage of 36V, making it suitable for demanding process environments.
The Switch-Tek series is CSA approved for hazardous locations including Groups A and E and different classes, although this particular model does not carry hazardous area certification. Its design allows mounting either through the tank’s side or top for high or low level alarms.
This level switch uses a NO/NC 60VA wiring polarity relay and can be utilized as a redundant alarm system within classified applications. The sensor is compatible with Smart Trak and Switch Pak installation fittings, enhancing its adaptability.
The sensor is suitable for chemically aggressive and solvent-based liquids. It features a vertical mount type for versatile tank installation. Polypropylene housing ensures robust corrosion resistance. Includes 3 meters cable length for flexible connectivity.
Operates in temperature range from -40°C to 80°C safely. Rated maximum pressure of 10 bar for demanding process conditions. Maximum DC voltage of 36V DC compatible with low voltage control systems. No hazardous area certification but CSA approved for groups A, E, and various classes.
Designed for use with Smart Trak and Switch Pak fittings as redundant alarm. Ideal for chemical, hydrocarbon, petroleum, and corrosive fluid level detection.
This device is engineered primarily for industrial, chemical, water treatment, petroleum, and manufacturing applications where reliable and safe level sensing is essential. The polypropylene and fluorelastomer materials provide durability and chemical resistance critical in harsh environments.
Explore more sensors and industrial automation tools within the EnvMart catalog to support diverse operational needs.
Explore more products in our Level Sensors category.
