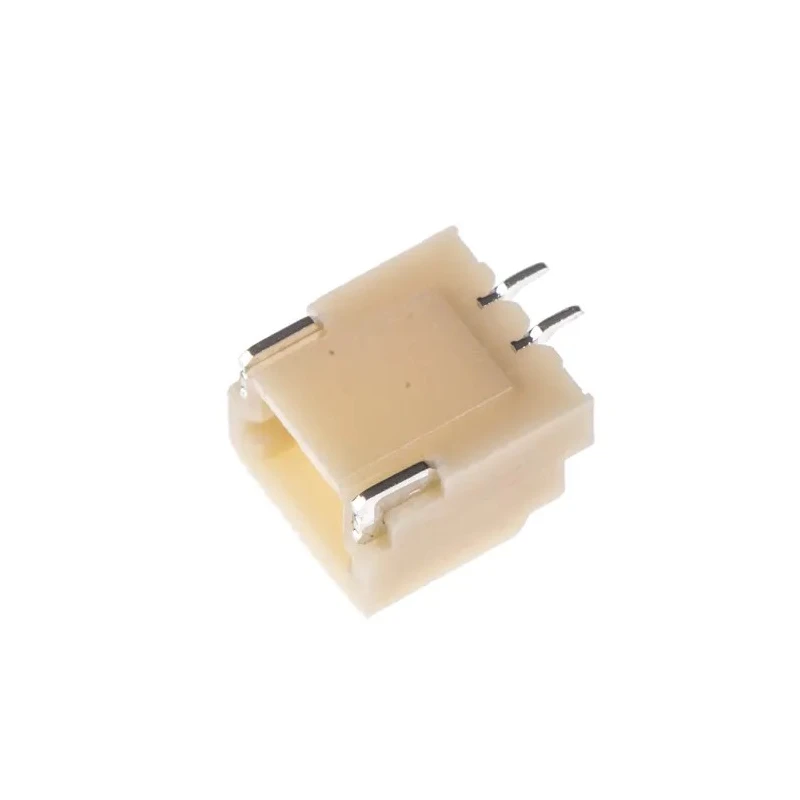

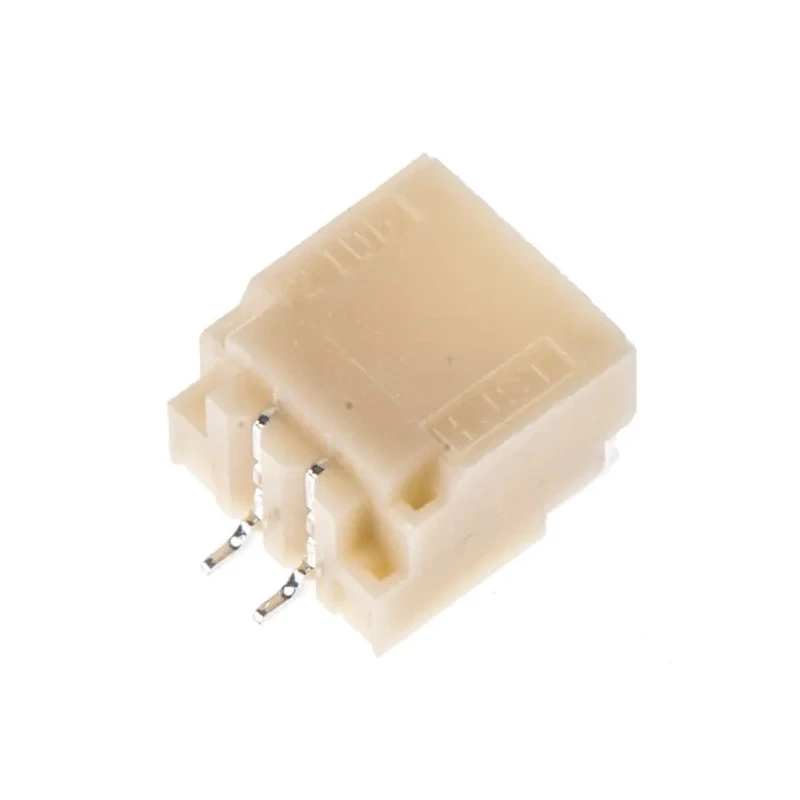

JST SH Series Right Angle Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row, Shrouded SM02B-SRSS-TB(LFSN)

JST SM02B-SRSS-TB(LFSN) is a high-quality SH Series Right Angle Surface PCB Header featuring 2 contacts, 1 mm pitch, 1 row, and a shrouded design suitable for wire-to-board interconnection systems. It incorporates a durable polyamide housing and tin-plated copper alloy contacts providing reliable electrical performance up to 1A at 50V.

The right angle orientation enables effective side entry SMT mounting, using solder termination for excellent mechanical and electrical connection to the PCB. Operating temperature ranges from -25°C to 85°C making it versatile for various industrial and commercial electronics.

This connector series is ideal in electronics manufacturing where board space is limited and connection reliability is paramount. The shrouded housing design offers polarization and protection against mis-mating.

Typical applications include consumer electronics, telecommunications equipment, industrial control systems, and other electronic assemblies requiring secure wire-to-board connections.

Polyamide housing ensures insulation and resistance to mechanical stress. Copper alloy contacts with tin plating guarantee conductivity and corrosion resistance. Right angle SMT mount supports compact PCB layout designs.

Shrouded configuration prevents accidental misconnection and enhances durability. Operating temperature supports a wide range of environmental conditions. Electrical ratings comply with standard industry requirements. Termination by soldering provides a stable and lasting connection.

Designed for efficient automated assembly due to reel packaging. Explore a wide range of JST PCB connectors at EnvMart for varied industrial, manufacturing, and technological applications.
