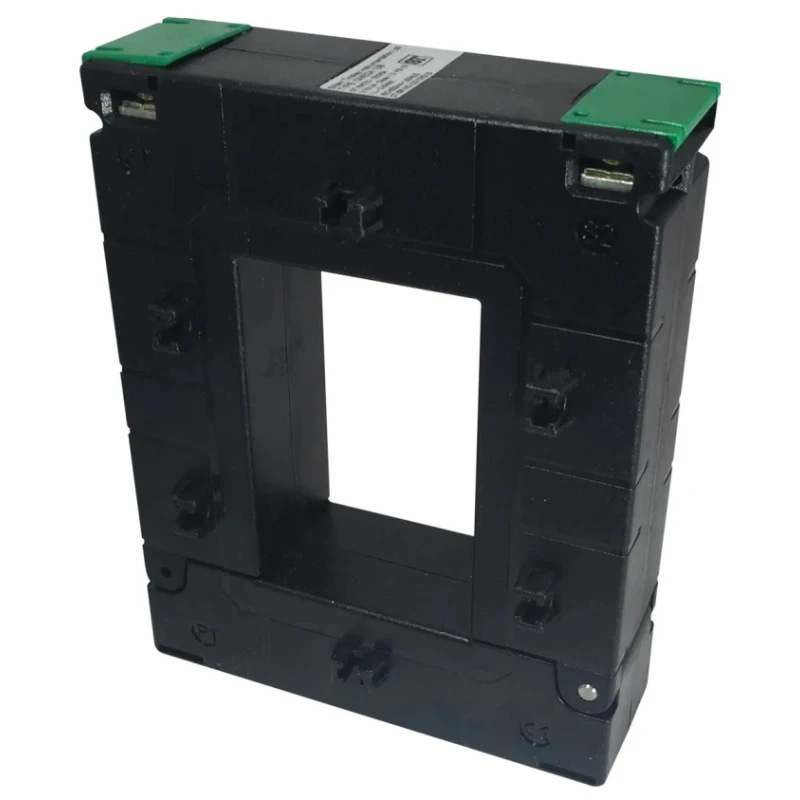

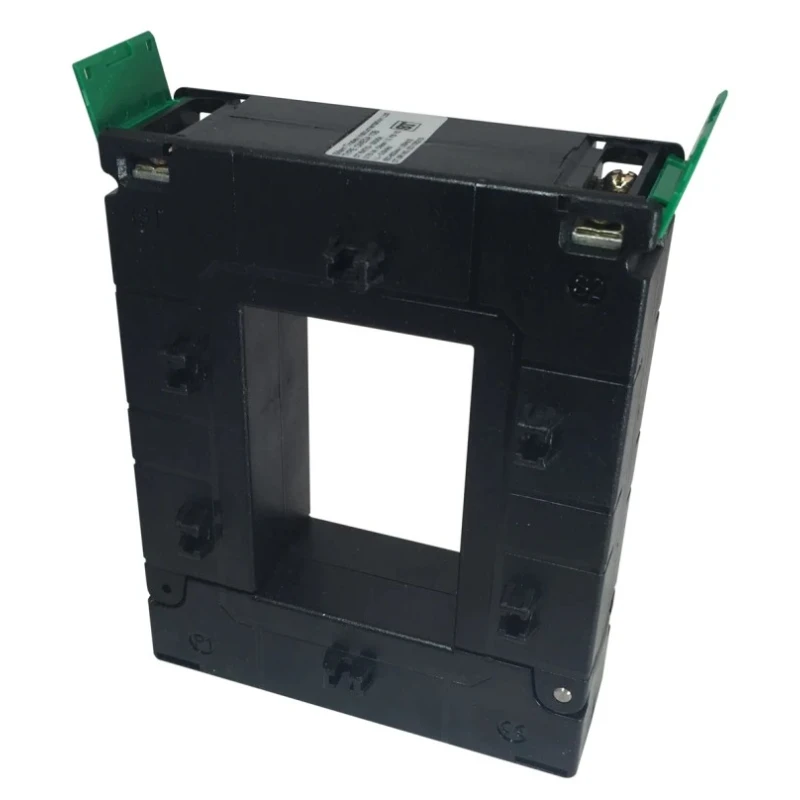

Sifam Tinsley OMEGA 10 Series Surface Mount Current Transformer 5000A 80mm Bore XS02-275015S 000000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sifam Tinsley |
| Model | XS02-275015S 000000 |
| Mount Type | Surface |
| Series | OMEGA 10 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 20°C |
| Bore Diameter | 80mm |
| Secondary current | 1, 5A |
| Insulation Class | E |
| Standards/Approvals | EN 60044-1, UL 94V-O, IEC 61869-1 |
| Primary Current | 5000A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| RS PRO Current Transformer 250 A 21mm BoreRS Stock No. | 171-8849Brand: RS PRO |
Key Features

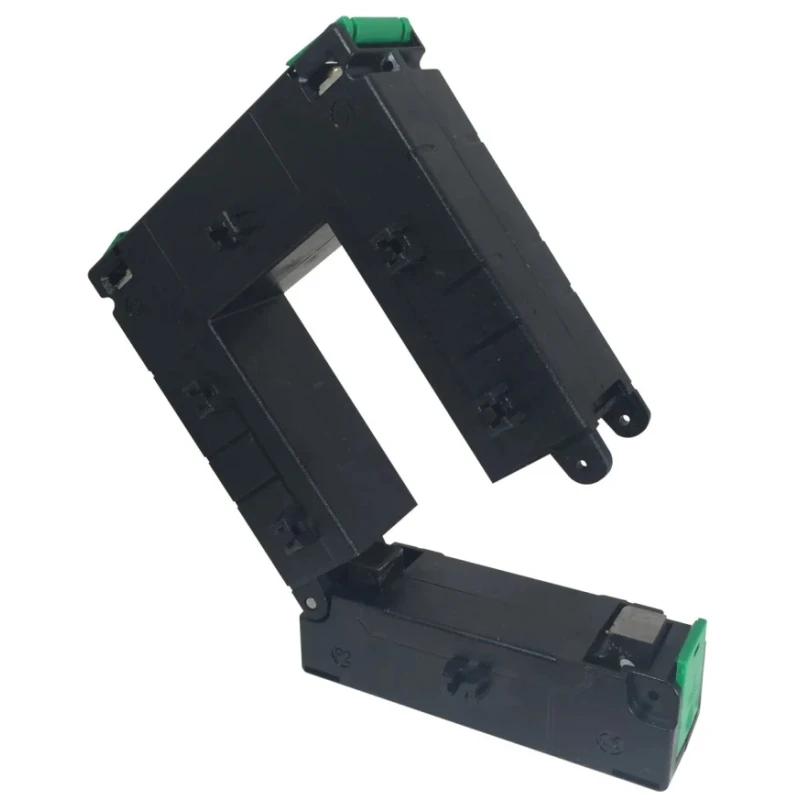

- Features a split core design for easy installation without conductor interruption.
- Complies with IEC 60044-1 and IEC 61869-1 standards ensuring reliable performance.
- Operating temperature range from 20°C to 70°C allows use in varied environmental conditions.
- Rated for system voltage up to 720 V maximum and frequency range 50 to 60Hz.
- Available in accuracy classes 0.5, 1, and 2 for versatile application requirements.
- Flame retardant enclosure provides enhanced safety and durability.
- Typical applications include distribution systems, generator sets, control panels, and overload protection.
- Designed and manufactured in India ensuring local quality standards.
Product Description
Sifam Tinsley XS02-275015S 000000 OMEGA 10 Series Current Transformer is a high-quality surface mount split core transformer designed to measure primary currents up to 5000 amperes with an 80mm bore diameter. This model allows current measurement without interrupting the conductor, significantly reducing installation and commissioning time.
The transformer complies with rigorous EN 60044-1, UL 94V-O, and IEC 61869-1 standards, ensuring dependable and safe operation. It is designed to operate in ambient temperatures ranging from 20°C to 70°C and supports operating frequencies between 50Hz and 60Hz, making it suitable for a broad range of industrial electrical applications.
The unit is housed in a flame retardant grade enclosure classified as insulation class E, offering enhanced protection and durability. It supports system voltages up to 720 V max and is designed for surface mounting installations. The availability of accuracy classes 0.5, 1, and 2 enables precise measurement and compliance with various industrial requirements.
Applications of the OMEGA 10 series include usage in distribution systems, generator sets, control panels, overload protection devices, and other control equipment where reliable current measurement is critical. Its split core feature simplifies maintenance and inspection, eliminating the need to disconnect conductors.
Split core construction for non-intrusive installation. Standards compliant for safety and reliability. Wide temperature and frequency operating range. Flame retardant enclosure for enhanced safety. Suitable for industrial measurement and control.
System voltage rating of 720 V max. Accurate current measurement with multiple accuracy classes. Manufactured in India ensuring quality assurance. Explore EnvMart’s range of Sifam Tinsley Current Transformers and other electrical measurement devices designed for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Sifam Tinsley OMEGA 10 Series current transformer is rated for a primary current of 5000A.
This model features an 80mm bore diameter, allowing for easy installation without interrupting the conductor.
The operating temperature range for this transformer is from 20°C to 70°C, making it suitable for various environmental conditions.
It complies with EN 60044-1, UL 94V-O, and IEC 61869-1 standards, ensuring reliable performance and safety.
This current transformer supports a maximum system voltage of 720 V.
It operates at frequencies between 50Hz and 60Hz, suitable for a variety of industrial applications.
The transformer is available in accuracy classes 0.5, 1, and 2, providing options for different measurement requirements.
This model is designed for surface mounting installations, facilitating straightforward setup.
The insulation class of this transformer is classified as E, providing adequate protection for its applications.
Typical applications include distribution systems, generator sets, control panels, and overload protection devices.
It is designed and manufactured in India, ensuring adherence to local quality standards.
It features a flame retardant enclosure that enhances safety and durability during operation.
