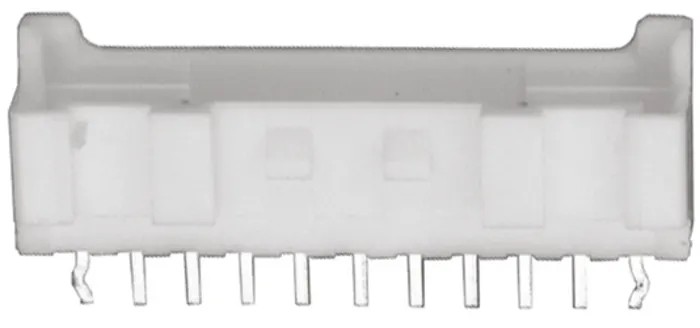

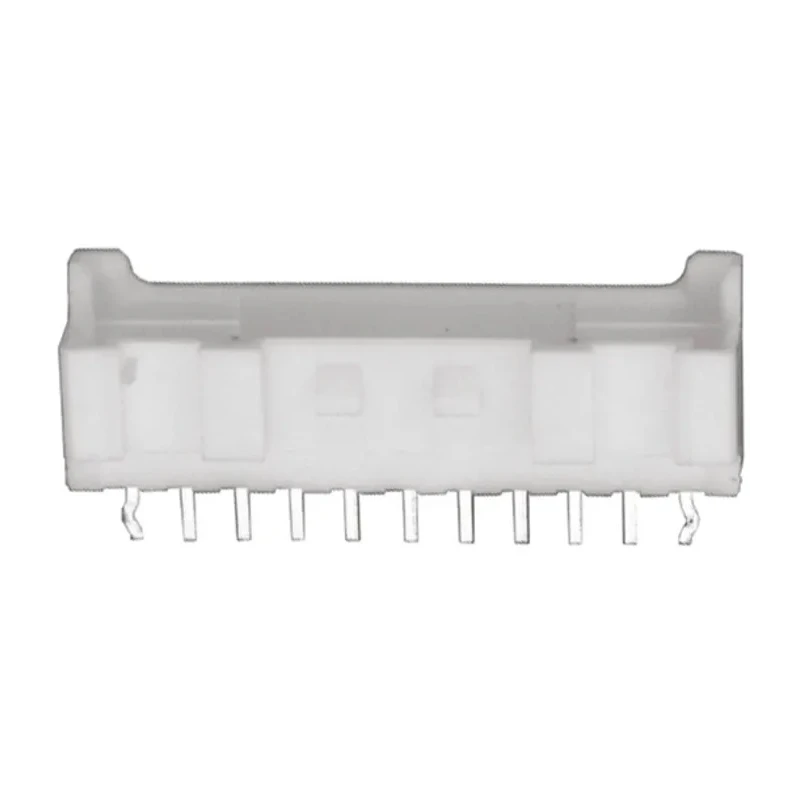

JST PA Series Straight Through Hole Shrouded PCB Header 11 Contacts 2mm Pitch 3A Current B11B-PASK-1 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Straight Through Hole Shrouded PCB Header 11 Contacts 2mm Pitch 3A Current B11B-PASK-1 (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B11B-PASK-1 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	11
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

This PCB header supports a 3A current rating for reliable electrical performance.
The header is constructed with copper alloy contacts plated with tin for optimized conductivity and durability.
It utilizes a through-hole mount type suitable for solder termination on PCBs.
The operating temperature range is from -25°C to 85°C, ensuring performance across diverse environments.
Features a 3 mm mating pin length and a low insertion force design with polarising guides for easy and secure insertion.
The shrouded design enhances anti-vibration retention during assembly and operation.
Operating voltage is rated at 250V, making it apt for various electronic applications.
Designed for industrial, electronic manufacturing, and PCB assembly use cases.

Product Description

JST B11B-PASK-1 (LF) (SN) shrouded PCB header is a high-quality wiring component from the PA Series, featuring 11 straight contacts arranged in a single row on a 2 mm pitch. This header provides a secure wire-to-board connection and is engineered with a copper alloy contact material plated in tin to guarantee reliable electrical conductivity.

The through-hole mount and solder termination type allow for durable PCB assembly suited to industrial manufacturing environments. It supports a current rating of 3A and an operating voltage of 250V, making it ideal for medium-power electronic devices.

The header’s operating temperature range of -25°C to 85°C enables stable performance in a variety of industrial, laboratory, and commercial conditions. A 3 mm mating pin length combined with shrouded contacts and polarising guides ensures low insertion force with prevention against vibration-induced disconnection.

This product is suitable for electronics manufacturing, PCB assembly processes, and applications requiring secure and reliable electrical interconnections. The brand’s PA interconnection system adds a locking device feature, enhancing connection stability during mechanical stress.

This PCB header supports a 3A current rating for reliable electrical performance. The header is constructed with copper alloy contacts plated with tin for optimized conductivity and durability. It utilizes a through-hole mount type suitable for solder termination on PCBs.

The operating temperature range is from -25°C to 85°C, ensuring performance across diverse environments. Features a 3 mm mating pin length and a low insertion force design with polarising guides for easy and secure insertion.

The shrouded design enhances anti-vibration retention during assembly and operation. Operating voltage is rated at 250V, making it apt for various electronic applications. Designed for industrial, electronic manufacturing, and PCB assembly use cases.
