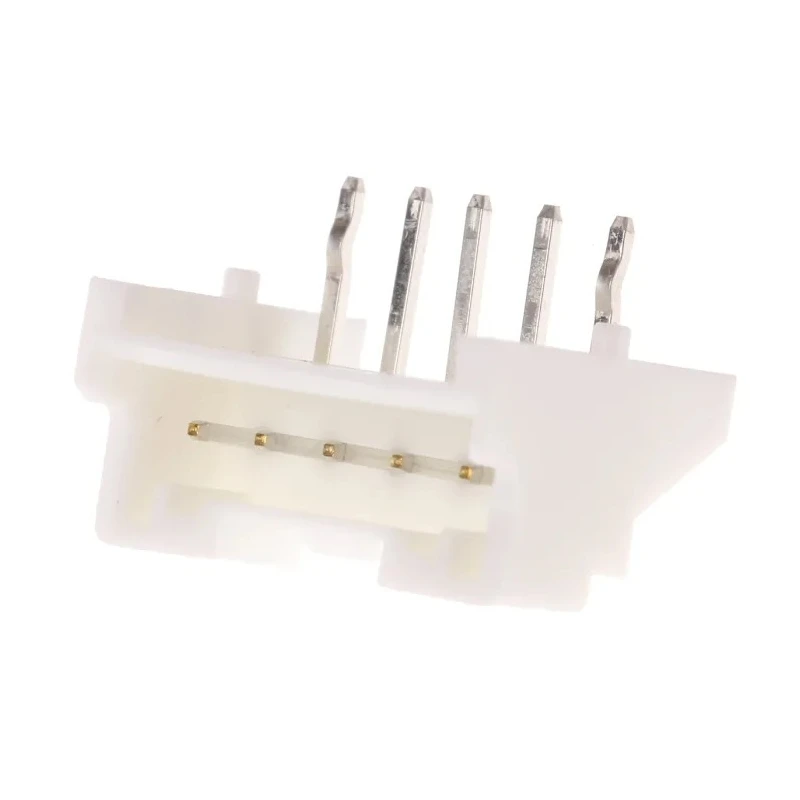

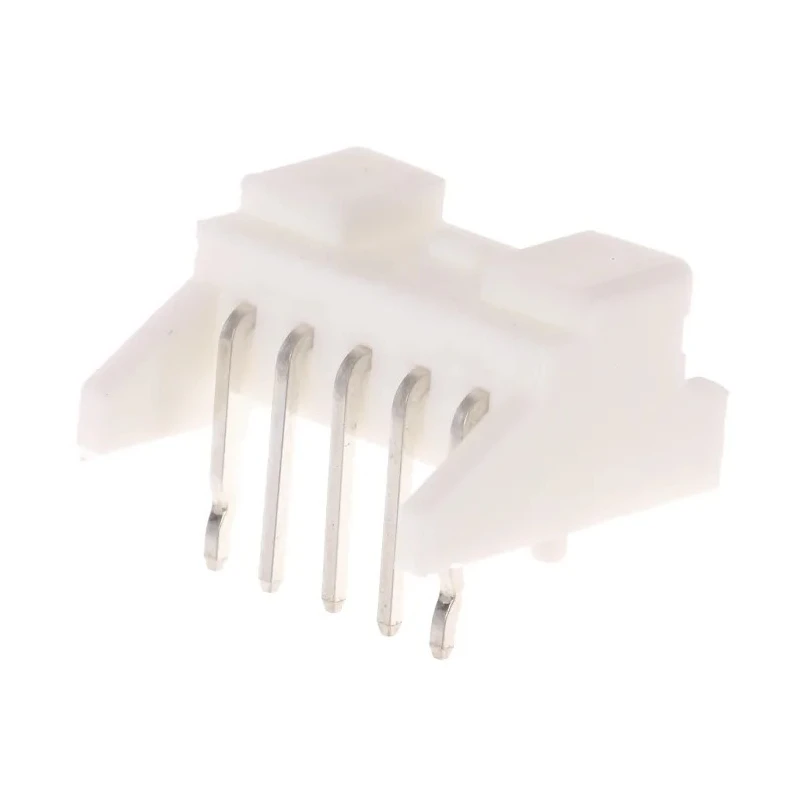

JST PA Series Right Angle Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded S05B-PASK-2 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Right Angle Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded S05B-PASK-2 (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S05B-PASK-2 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Designed with a right angle orientation for optimal PCB mounting.
Features shrouded construction to prevent accidental disconnection.
Compatible with 2 mm pitch wire-to-board connector systems.
Constructed from copper alloy contacts plated with tin for reliable performance.
Supports a current rating of 3A and voltage up to 250V.
Operational temperature range from -25°C to 85°C ensures durability.
Includes a mating pin length of 3 mm suitable for through hole soldering.
Offers a single row with 5 male contacts for compact design.

Product Description

The JST S05B-PASK-2 (LF) (SN) is a high-quality right angle PCB header designed for through hole mounting on printed circuit boards. Featuring 5 male contacts arranged in a single row with a 2 mm pitch, this shrouded header ensures a secure, anti-vibration wire-to-board connection suitable for industrial and electronic applications.

Manufactured with copper alloy contacts plated with tin, the component offers excellent conductivity and reliable solder termination. The shrouded design integrates a thumb depress locking mechanism that prevents accidental disconnections during assembly or in vibration-prone environments.

This header supports currents up to 3A and voltages up to 250V, making it suitable for low to moderate power electronics. The operating temperature range from -25°C to 85°C ensures consistent performance across a wide range of environmental conditions.

The 3 mm mating pin length guarantees strong mechanical retention and compatibility with standard PCB mounting processes. This component is ideal for use in electronic manufacturing, industrial machinery, and instrumentation.

Right angle orientation allows efficient PCB layout and wiring. Shrouded body design enhances connection security and safety. Wire-to-board connector system facilitates easy assembly and maintenance. Copper alloy contacts with tin plating provide reliable electrical contacts.

Rated at 3A current and 250V voltage for diverse applications. Temperature capabilities from -25°C to 85°C for robust operation. Through hole mount type enables strong and durable PCB attachment. Includes polarising guides for straightforward and secure insertion.

This JST PCB Header is a dependable solution for OEMs and electronics engineers requiring a robust connection system. Available from EnvMart, it supports a broad array of industrial, laboratory, electronics manufacturing, and commercial uses.

Explore additional PCB components and connectors in the Electronics & Electrical category on EnvMart to complement your design and assembly needs.
