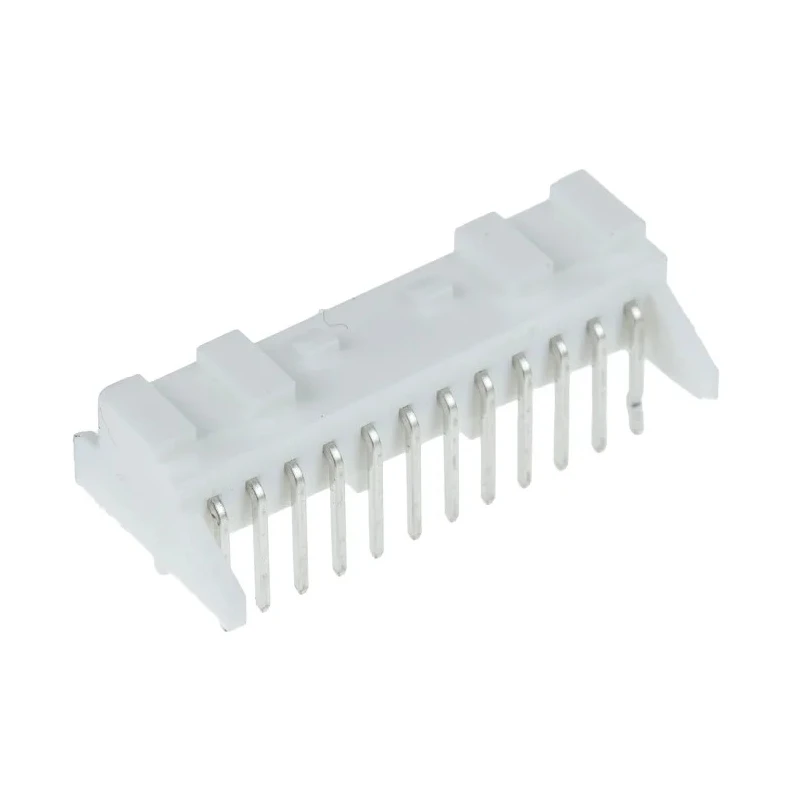

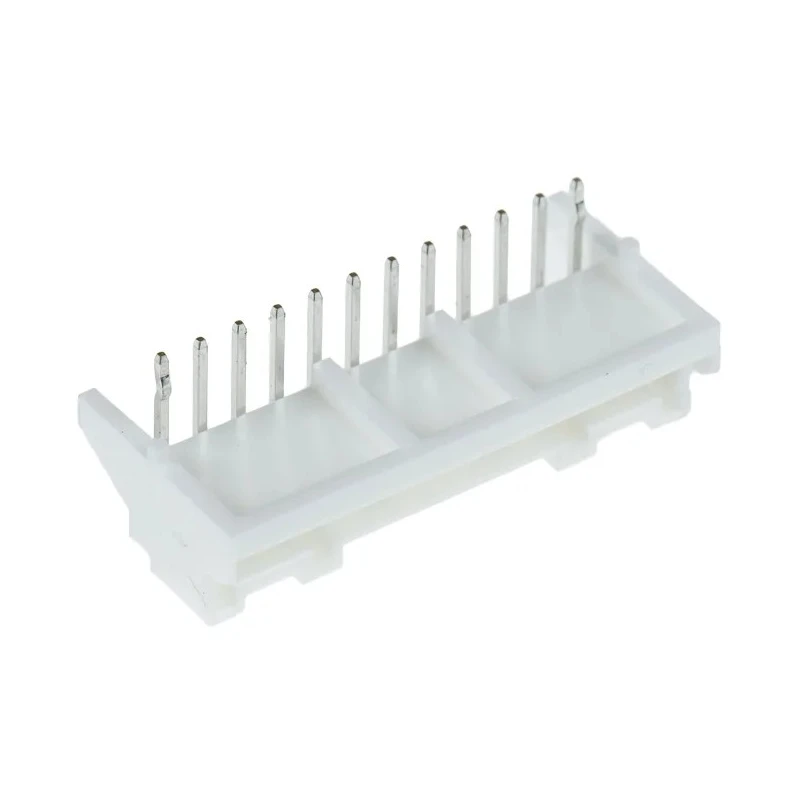

JST PA Series Right Angle Through Hole PCB Header, 12 Contacts, 2 mm Pitch, 1 Row, Shrouded S12B-PASK-2 (LF) (SN)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 3A |
| Model | S12B-PASK-2 (LF) (SN) |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | PA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Features 1 row of contacts with right angle orientation for compact PCB mounting.
- Shrouded design ensures protection and secure locking against vibration.
- Constructed with copper alloy contacts and tin plating for reliable conductivity.
- Rated for 3A current and 250V voltage operation under industrial conditions.
- Operating temperature range from -25°C to 85°C for versatile application environments.
- The mating pin length is 3 mm, compatible with standard housings.
- Termination by solder through hole mount provides stable mechanical and electrical connection.
- Suitable for electronics manufacturing, industrial, and commercial applications requiring secure PCB connections.
Product Description
JST S12B-PASK-2 (LF) (SN) is a PA Series right angle through hole PCB header designed for high reliability in wire-to-board connections. It features 12 male contacts in a single row with a 2 mm pitch, ensuring compact and efficient PCB layouts. The header is shrouded to prevent accidental disconnections and vibration-related faults, making it ideal for industrial and electronic applications requiring secure locking mechanisms.
Constructed with copper alloy contacts plated with tin, this header offers excellent conductivity and corrosion resistance. It is rated to carry up to 3 amperes of current and operate up to 250 volts, supporting a wide range of electronic devices and circuits. The operating temperature range of -25°C to 85°C enhances its suitability in diverse environments.
The termination is through hole soldering, which guarantees a sturdy mechanical connection on the PCB with reliable conductivity. The mating pin length of 3 mm ensures compatibility with standard wire housings and connectors, while the right angle orientation facilitates space-saving PCB designs.
The header is commonly used in electronics manufacturing, industrial, laboratory, and commercial equipment where a dependable wire-to-board connection is critical. Its secure locking feature prevents accidental detachment due to vibration or handling, enhancing the durability of electronic assemblies.
Features 1 row of 12 contacts with right angle orientation. Shrouded design for secure locking against vibration and disconnection. Copper alloy contacts with tin plating for enhanced conductivity. Rated current of 3A and voltage of 250V for robust electrical performance.
Suitable for operating temperatures from -25°C up to 85°C. Through hole mount with solder termination ensures durability. Standard 3 mm mating pin length compatible with JST housings. Widely used in electronics, industrial, and commercial PCB applications.
Explore JST PA Series PCB Headers and related connector solutions in the Electronics & Electricals category at EnvMart for reliable and quality interconnection components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 3A and a voltage of 250V, suitable for robust electrical performance in various applications.
The operating temperature range is from -25°C to 85°C, allowing it to function in diverse environmental conditions.
This PCB header features 12 male contacts arranged in a single row, designed for efficient PCB layouts.
It utilizes a through hole solder termination, ensuring a stable mechanical and electrical connection on the PCB.
The contacts are spaced at a pitch of 2 mm, which is standard for compact PCB designs.
It is constructed with copper alloy contacts that are plated with tin, providing reliable conductivity and corrosion resistance.
Yes, it features a shrouded design that helps prevent accidental disconnections and protects against vibration-related faults.
The mating pin length is 3 mm, making it compatible with standard wire housings and connectors.
It supports a wire-to-board connector system, suitable for various electronic and industrial applications.
The country of origin for this PCB header is India.
It is suitable for electronics manufacturing, industrial, laboratory, and commercial applications requiring secure PCB connections.
The right angle orientation facilitates space-saving designs on PCBs, making it easier to fit components in compact layouts.
