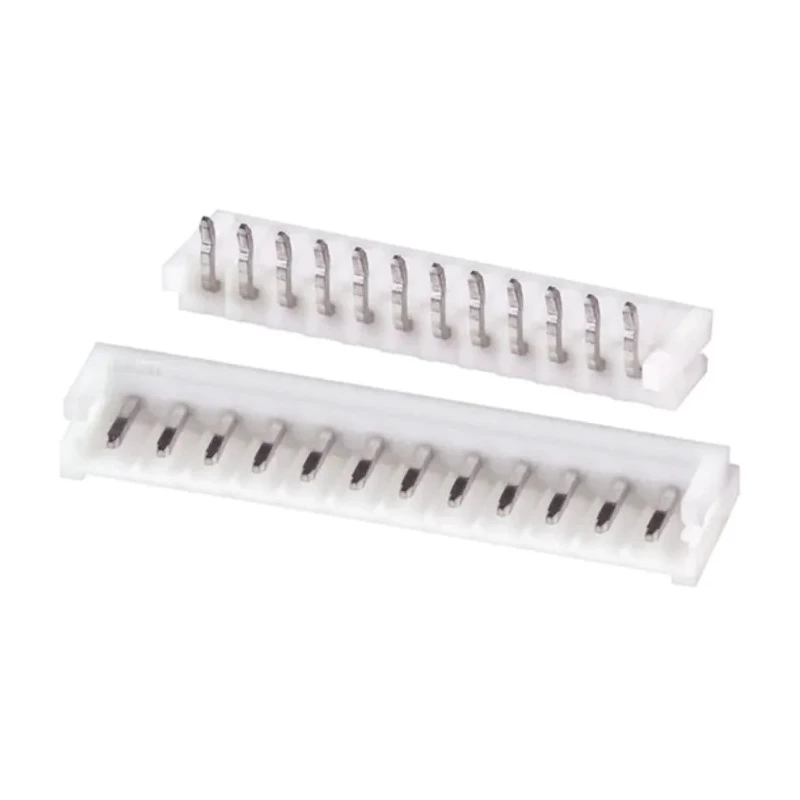

JST EH Series Right Angle Through Hole PCB Header 12 Contact, 2.5 mm Pitch, 1 Row, Shrouded S12B-EH (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST EH Series Right Angle Through Hole PCB Header 12 Contact, 2.5 mm Pitch, 1 Row, Shrouded S12B-EH (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S12B-EH (LF) (SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	EH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.2mm

Key Features

Designed with 12 contacts and a 2.5 mm pitch for accurate PCB interfacing.
Shrouded housing made of durable polyamide to prevent misalignment and damage.
Right angle orientation suitable for side-entry connections in compact assemblies.
Supports a maximum current of 3A and a voltage rating of 250V.
Constructed with brass contacts plated with tin for reliable conduction.
Through hole mounting ensures stable mechanical and electrical connection on PCB.
Integral keying prevents incorrect mating of the connector.
Operating temperature ranges from -25°C to 85°C for diverse applications.

Product Description

JST S12B-EH (LF) (SN) EH Series right angle through hole PCB header is a high-quality component engineered for use in electronic assemblies requiring reliable wire-to-board connections. This shrouded 12-contact connector features a precise 2.5 mm pitch and a single row configuration optimized for right angle side-entry PCB mounting.

The housing is made of polyamide material, providing mechanical strength and electrical insulation, while the brass contacts are plated with tin for corrosion resistance and consistent electrical performance. Suitable for currents up to 3A and voltages as high as 250V, this connector ensures robust functionality in various industrial and commercial electronic applications.

Integral keying of the header prevents improper mating, reducing the risk of connection errors. The through hole mounting type offers secure mechanical retention on printed circuit boards. The connector operates reliably within a temperature range of -25°C to 85°C, making it adaptable to differing environmental conditions commonly seen in industrial, manufacturing, and HVAC electronic controls.

This product is ideal for applications including PCB assemblies in automation equipment, test instrumentation, consumer electronics, and other sectors requiring wire-to-board interface solutions.

Designed with 12 contacts and a 2.5 mm pitch for accurate PCB interfacing. Shrouded housing made of durable polyamide to prevent misalignment and damage. Right angle orientation suitable for side-entry connections in compact assemblies.

Supports a maximum current of 3A and a voltage rating of 250V. Constructed with brass contacts plated with tin for reliable conduction. Through hole mounting ensures stable mechanical and electrical connection on PCB. Integral keying prevents incorrect mating of the connector.

Operating temperature ranges from -25°C to 85°C for diverse applications. Contact mating pin length is 3.2 mm ensuring secure engagement. Explore the Electronics & Electricals category at EnvMart for more high-quality PCB Headers and connectors from trusted brands like JST.
