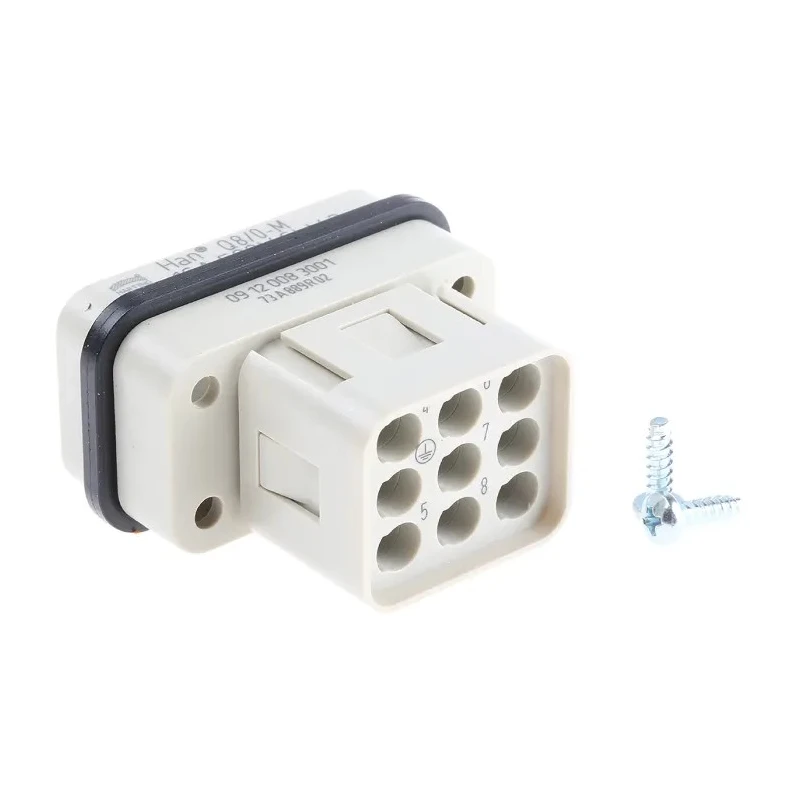

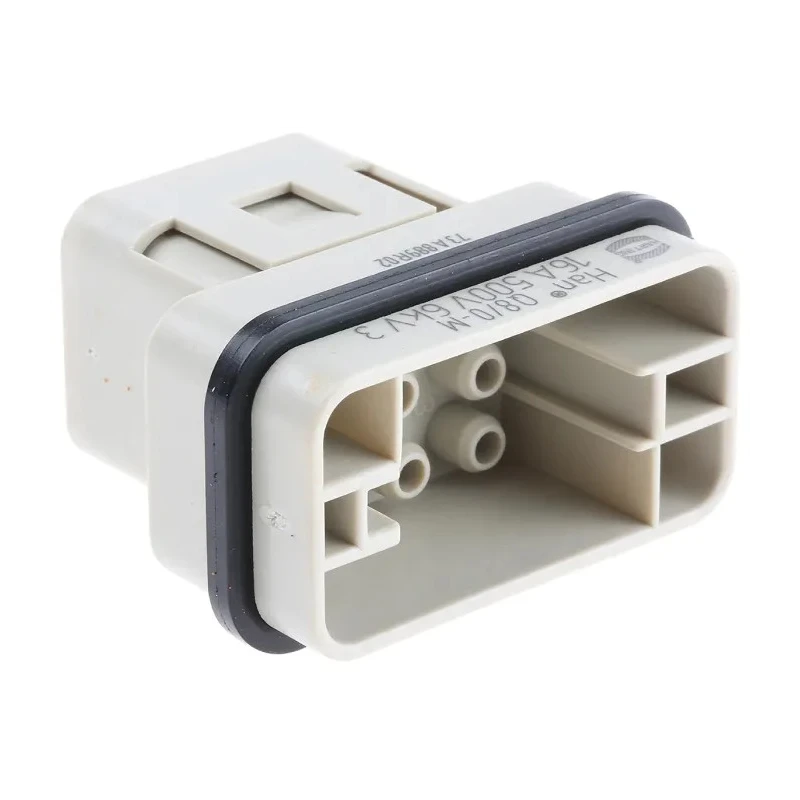

HARTING Heavy Duty Power Connector Insert 16A Han Q Series Male 9 Contacts 09120083001
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han Q |
| Sub Type | Connector Insert |
| Number of Rows | 3 |
| Pole Format | 8+PE |
| Contact Plating | Silver |
| Number of Contacts | 9 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Han Q male and female inserts for receiving crimping contacts | 8 poles + PE |
Key Features
- Designed for industrial and electronic power connector applications.
- Han Q series male insert with crimp contacts for 8 poles plus protective earth.
- Rated for 16A current and 500V voltage for reliable power transmission.
- Silver-plated copper alloy contacts for durability and conductivity.
- IP65 cable mount protection for harsh environments.
- Supports wire sizes from 0.5 mm² to 2.5 mm² with straight orientation.
- Manufactured in Germany ensuring high-quality manufacturing standards.
Product Description
HARTING 09120083001 Heavy Duty Power Connector Insert is a robust electrical connector designed for industrial, manufacturing, electronic component, and power distribution applications. It is part of the Han Q Series, providing a reliable and durable cable-mount solution with a current rating of 16A and voltage rating of 500V, suitable for medium power usage.
This male connector insert includes 9 contacts arranged as 8 signal contacts plus a protective earth (PE), organized in 3 rows. The contacts are made of copper alloy with a silver plating to ensure excellent conductivity and resistance to corrosion. It is designed for straight cable orientation, simplifying installation and maintenance.
Compatible with Han Q Series hoods and housings, this connector supports crimping contacts (ordered separately) allowing customization and flexible cable configurations. Its IP65 rating provides protection against dust ingress and water jets, making it suitable for rugged industrial environments.
The connector is designed for wire sizes ranging from 0.5 mm² to 2.5 mm², accommodating a wide range of cabling needs in power and signal transmission. This product is manufactured in Germany according to high standards, delivering consistent quality and long-term reliability.
Commonly applied in industrial automation, control systems, machinery, energy distribution, and other electrical setups, the HARTING Heavy Duty Power Connector Insert ensures safe and efficient power connections with modular expandability.
Designed for industrial and electronic power connector applications. Han Q series male insert with crimp contacts for 8 poles plus protective earth. Rated for 16A current and 500V voltage for reliable power transmission.
Silver-plated copper alloy contacts for durability and conductivity. IP65 cable mount protection for harsh environments. Supports wire sizes from 0.5 mm² to 2.5 mm² with straight orientation. Manufactured in Germany ensuring high-quality manufacturing standards.
Explore more in the Electronics & Electricals category for compatible power connectors and accessories available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current of 16A and a voltage of 500V, making it suitable for medium power applications.
It features a total of 9 contacts, which includes 8 signal contacts plus a protective earth (PE).
The connector has an IP65 rating, providing protection against dust ingress and water jets, suitable for harsh environments.
It supports wire sizes ranging from 0.5 mm² to 2.5 mm², accommodating various cabling needs.
The contacts are made of copper alloy and are silver-plated to ensure excellent conductivity and corrosion resistance.
This model is designed for straight cable orientation, which simplifies installation and maintenance.
It is manufactured in Germany, ensuring adherence to high manufacturing standards.
This connector insert is part of the Han Q Series, which is designed for industrial and electronic power connector applications.
The contacts are organized in 3 rows, facilitating efficient connection configurations.
It is a cable mount connector, designed for easy integration into various setups.
It is commonly applied in industrial automation, control systems, machinery, and energy distribution.
Yes, this insert is compatible with Han Q Series hoods and housings, allowing for flexible configurations.
