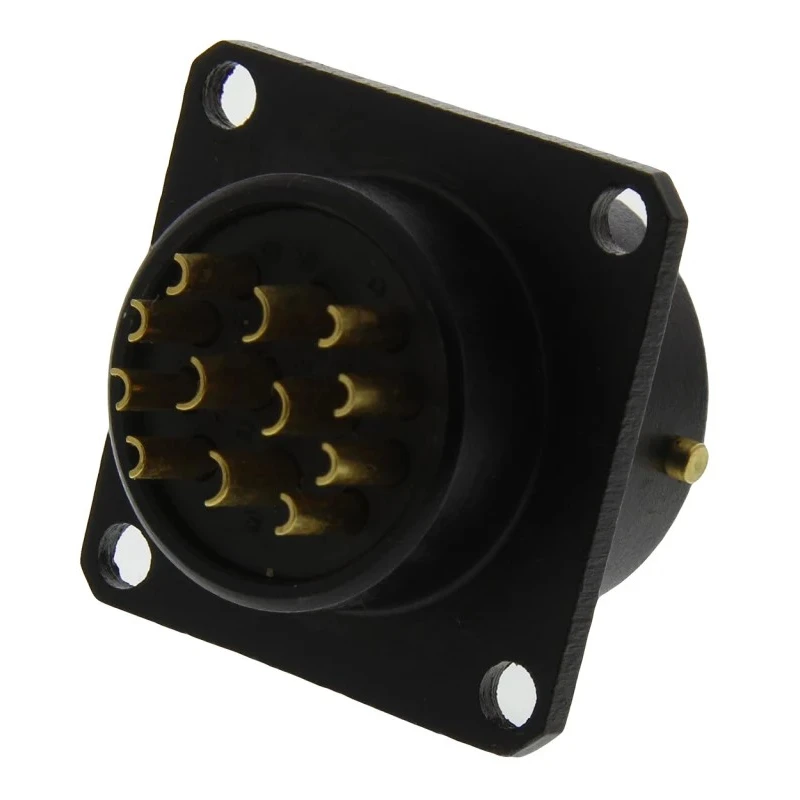

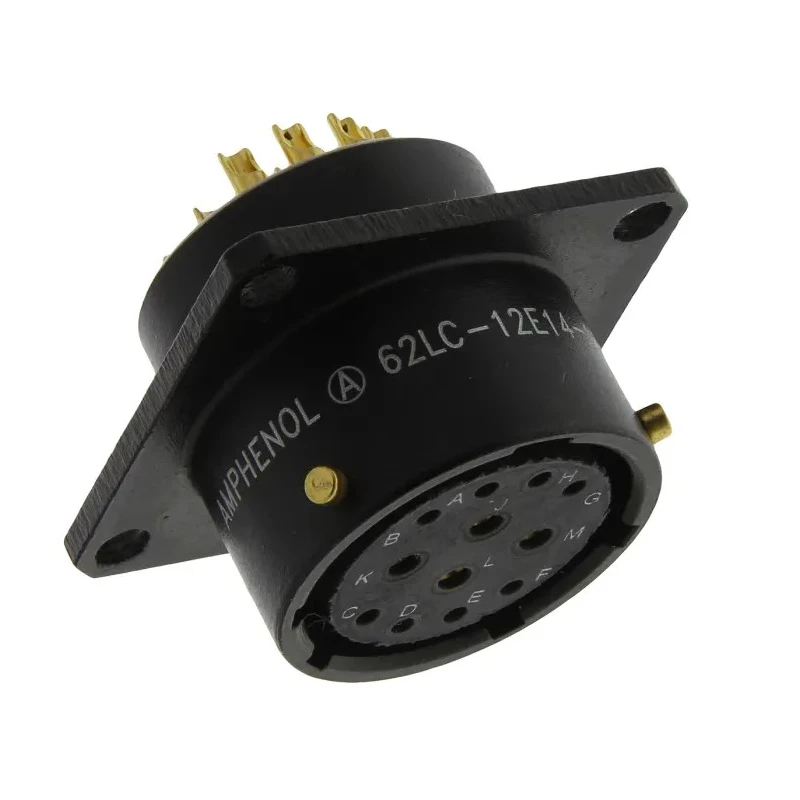

Amphenol Limited MIL Spec Circular Connector, Copper Straight 12 Way Panel Mount, 700V 13A, Bayonet 62LC-12E14-12SN(771)

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Limited MIL Spec Circular Connector, Copper Straight 12 Way Panel Mount, 700V 13A, Bayonet 62LC-12E14-12SN(771)

Name: Amphenol Limited MIL Spec Circular Connector, Copper Straight 12 Way Panel Mount, 700V 13A, Bayonet 62LC-12E14-12SN(771)
Brand: Amphenol Limited
SKU: 124376
Price: 89.51 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Voltage	700V
Brand	Amphenol Limited
Orientation	Straight
Current	13A
Model	62LC-12E14-12SN(771)

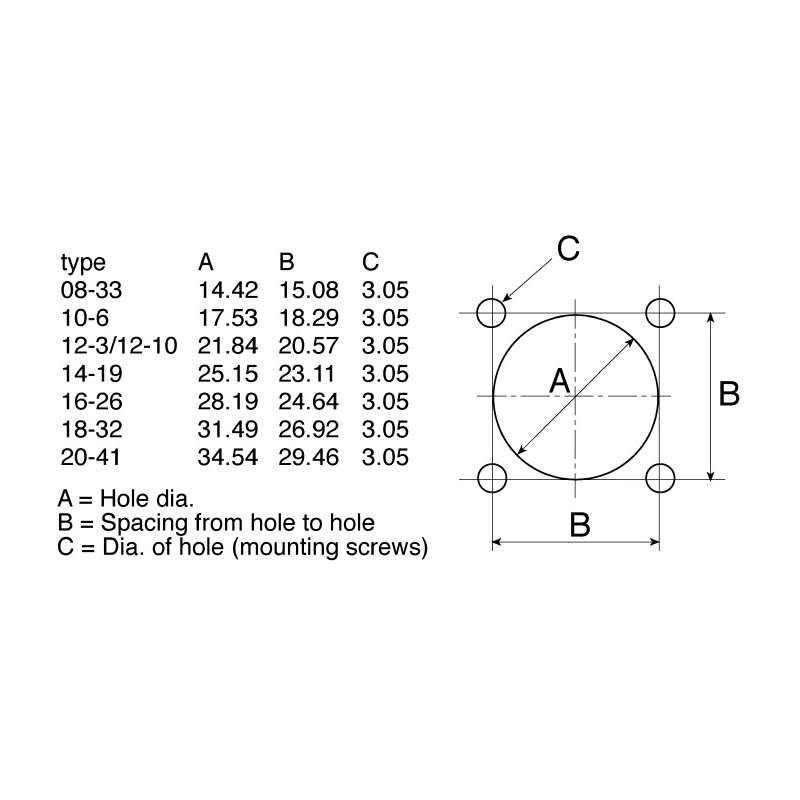

Mount Type	Panel Mount
Housing Material	Aluminium
Contact Material	Copper
Series	62LC
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Female
Connector Gender	Male
Shell Size	14
Mating Type	Bayonet
Connector Size	22.2 mm

Key Features

The connector features a robust aluminium housing with shell size 14 for durability.
It includes female contacts with gold plating to ensure high conductivity and resistance to corrosion.
This panel mount connector uses a bayonet mating system for secure and quick connection.
It operates efficiently across temperature ranges from -55°C to 125°C.
Termination type is solder, suitable for reliable and stable wire connections.
Designed for industrial and electronic component applications requiring MIL Spec level quality.
The straight orientation optimizes space utilization on mounting panels.
Amphenol 62LC series assures interchangeability with MIL-C-26482 and BS9522 standards.

Product Description

Amphenol Limited 62LC-12E14-12SN(771) MIL Spec Circular Connector is a copper straight 12 way panel mount connector engineered for demanding industrial and electronic environments. It supports high current and voltage ratings of 13A and 700V respectively, suitable for power and signal transmission in rugged applications.

The connector features a durable aluminium housing with shell size 14 and a bayonet mating type enabling secure and quick connections. Its panel mount configuration allows easy and stable installation in electronic devices, control panels, or industrial equipment.

This connector contains 12 female copper contacts plated in gold for enhanced conductivity and corrosion resistance, ensuring optimal electrical performance over extended use. The termination type is solder, facilitating a reliable and permanent wire connection.

Operating temperature ranges from -55°C to 125°C allow broad environmental usability including harsh industrial conditions and outdoor applications. The straight connector orientation minimizes space consumption on panels and facilitates straightforward wiring layouts.

The 62LC series connectors from Amphenol are designed to meet MIL-C-26482 and BS9522 F0017 compliance requirements, guaranteeing compatibility and high-quality performance. These connectors are widely used in military, aerospace, industrial automation, and electronic manufacturing sectors.

The connector uses a bayonet mating system for fast and secure engagement. Robust aluminium housing provides mechanical strength and environmental protection. Gold-plated copper contacts ensure superior electrical conductivity.

Wide operating temperature range supports various industrial uses. Solder termination provides stable and long-lasting connections. Panel mount design allows easy integration into equipment chassis. Conforms to MIL Spec standards for reliability and interchangeability.

Suitable for applications requiring high voltage and current ratings.

This Amphenol Mil Spec Circular Connector is ideal for industrial, military, aerospace, and telecommunications applications requiring reliable multi-contact connections. Browse EnvMart for more connectors and electronic components from leading brands.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It has a voltage rating of 700V and a current rating of 13A, making it suitable for power and signal transmission in demanding applications.

This connector uses solder termination, which facilitates reliable and stable wire connections.

It operates efficiently across a temperature range of -55°C to 125°C, allowing for use in various environmental conditions.

The housing is made of aluminium, and it features female contacts made of copper with gold plating for enhanced conductivity and corrosion resistance.

This model is designed for panel mount installation, allowing for easy integration into equipment chassis or control panels.

It has 12 female contacts, which are designed to ensure optimal electrical performance.

The connector features a shell size of 14, which is standard for its design and compatibility.

It uses a bayonet mating system, which allows for secure and quick connections.

Yes, it is designed to meet MIL-C-26482 and BS9522 compliance requirements, ensuring compatibility and high-quality performance.

This model features a straight orientation, which optimizes space utilization on mounting panels.

It is suitable for applications in military, aerospace, industrial automation, and electronic manufacturing sectors that require reliable multi-contact connections.

The connector has a male gender configuration, designed to connect with female contacts.
