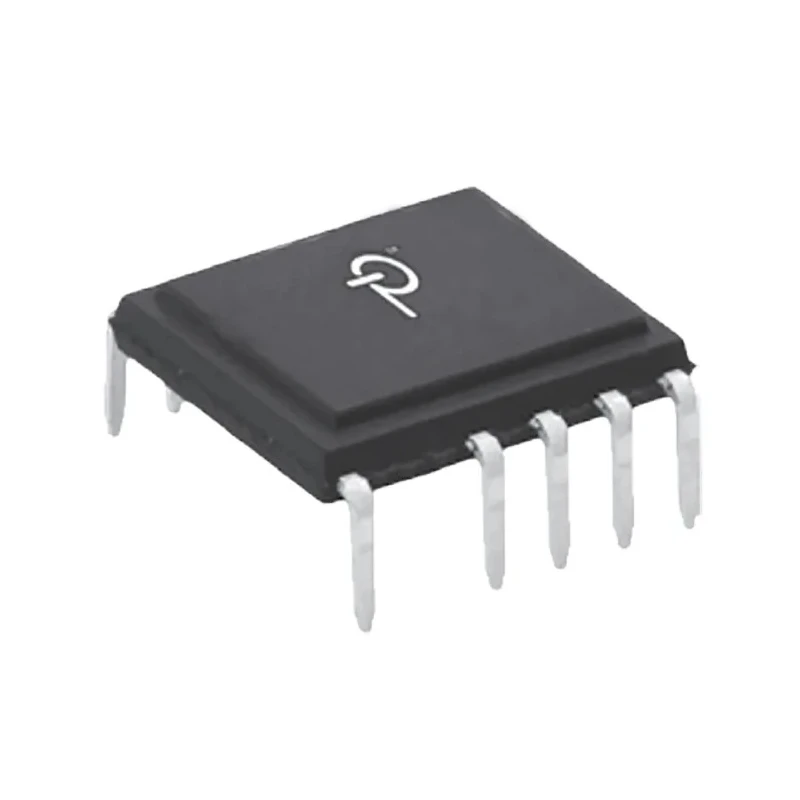

Power Integrations AC/DC Converter 7 A 5V DC 11-Pin eDIP-12 TOP268VG

Power Integrations TOP268VG is a new AC/DC Converter designed for cost-effective off-line power supply solutions. It supports a maximum input voltage of 265V AC and a minimum input voltage of 85V AC, delivering a stable 5V DC output voltage at 7A maximum current. Packaged in a compact 11-pin eDIP-12 through-hole format, it integrates a high-voltage power MOSFET, switched current source, multi-mode PWM controller, and comprehensive protection circuitry.

The device operates at a switching frequency of 132kHz using a flyback topology and allows a maximum duty cycle of 83%, enabling efficient power conversion in a small footprint. Its wide operating temperature range from -40°C to 150°C makes it suitable for diverse industrial and electronic component applications requiring reliable power management.

The TOPSwitch-JX series encapsulates advanced energy-saving features with very low no-load power consumption. Its through-hole mounting style ensures ease of use in prototyping and PCB assembly. The compact dimensions of 10.16 mm length, 8.89 mm width, and 2.34 mm height facilitate space-constrained designs.

Applications include power management ICs, low power industrial supplies, and semiconductor electronic devices requiring robust and reliable AC/DC conversion. This device supports industrial sectors such as electronics manufacturing, HVAC systems, and laboratory instrumentation.

Maximum input voltage of 265V AC supports a wide range of power sources. Output current rating of 7A allows high current applications. Switching frequency fixed at 132kHz for efficient power conversion. Compact eDIP-12 package with through-hole mounting style.

Operating temperature range from -40°C to 150°C suits harsh environments. Maximum duty cycle of 83% optimizes power efficiency. Supply current of 1mA minimizes device power consumption. Dimensions: length 10.16mm, width 8.89mm, and height 2.34mm.

Non-automotive rated device designed for standard industrial applications. TOPSwitch-JX series integrates power MOSFET and PWM controller for simplified design.
