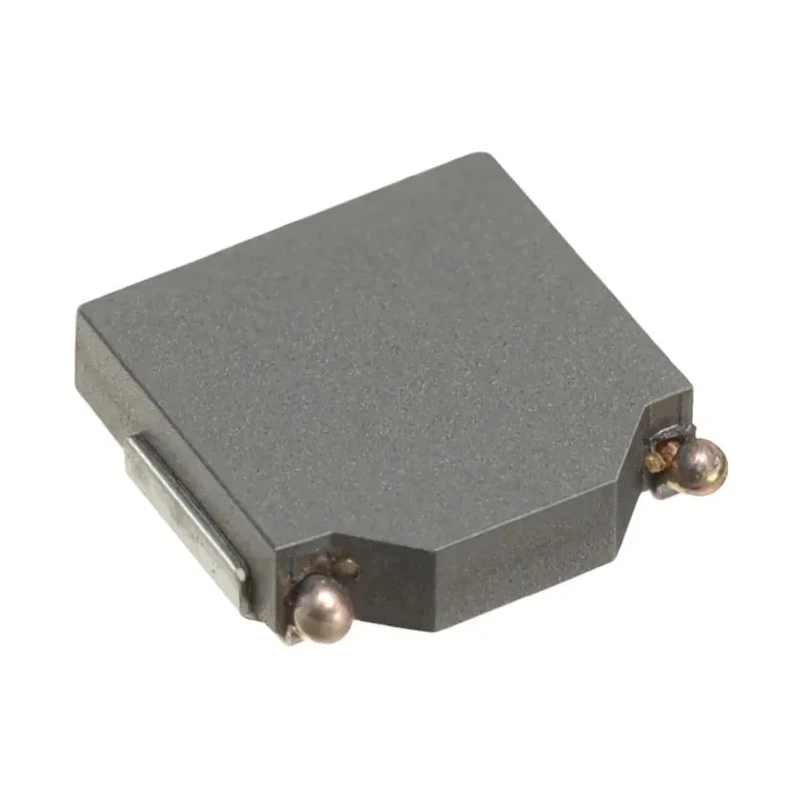

TDK Wirewound Surface Mount Inductor 10 μH ±20% 1.8 A DC Current, Metal Core, Shielded 4020 Package SPM4020T-100M-LR
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 4.4mm |
| Model | SPM4020T-100M-LR |
| Depth | 4.1mm |
| Series | SPM-LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 4020 |
| Maximum DC Current | 1.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 284.1mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Wirewound construction provides stable inductance in high temperature environments.
- Metal core offers low hum noise compared to core adhesive coils.
- Rated maximum DC current of 1.8 A suitable for power supply modules.
- Compact 4020 surface mount package with length 4.4mm, height 2mm, and depth 4.1mm.
- RoHS compliant with shielding to minimize electromagnetic interference.
- Temperature range from -40°C to 125°C for reliable industrial performance.
- Ideal for use in tablet terminals, note PCs, HDDs, and servers.
Product Description
TDK SPM4020T-100M-LR is a shielded wirewound surface mount inductor featuring a metal core and a nominal inductance of 10 μH with a tolerance of ±20%. Designed for robust power circuit applications, this inductor delivers a maximum DC current rating of 1.8 A, making it suitable for demanding electronic devices requiring stable inductance and low noise operation.
The 4020 package measures 4.4mm in length, 2mm in height, and 4.1mm in depth, providing a compact footprint for high-density circuit layouts. Its wirewound construction and metal core result in lower hum noise compared to core adhesive coils, ensuring cleaner signal environments in sensitive applications.
This inductor operates reliably over a temperature range from -40°C to 125°C and is RoHS compliant. It includes electromagnetic shielding to reduce interference, enhancing performance in compact power supply modules, tablet terminals, note PCs, hard disk drives (HDDs), and server equipment.
Manufactured in China with a moulded design and surface mount termination style, the TDK SPM4020 series offers durable and compact inductors for various industrial and commercial electronic applications.
Wirewound construction provides stable inductance in high temperature environments. Metal core reduces hum noise compared to adhesive core coils. Maximum DC current rating of 1.8 A supports power circuits. Compact 4020 package dimensions of 4.4mm x 2mm x 4.1mm.
RoHS compliant with shielding for EMI reduction. Wide operating temperature range from -40°C to 125°C. Suitable for tablet terminals, note PCs, HDDs, and servers.
Explore more quality Surface Mount Inductors like the TDK SPM4020T-100M-LR in the trusted EnvMart electronics components catalogue for your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 10 μH with a tolerance of ±20%.
It has a maximum DC current rating of 1.8 A, making it suitable for power supply applications.
The package dimensions are 4.4 mm in length, 2 mm in height, and 4.1 mm in depth.
This model operates reliably over a temperature range from -40°C to 125°C.
It features a wirewound construction, which provides stable inductance in high temperature environments.
Yes, the TDK SPM4020T-100M-LR is RoHS compliant.
The core material is metal, which helps reduce hum noise compared to adhesive core coils.
The maximum DC resistance is 284.1 mΩ.
It uses a surface mount termination style, suitable for compact circuit layouts.
This inductor is suitable for applications in tablet terminals, note PCs, hard disk drives (HDDs), and servers.
This model has a pin count of 2.
The metal core offers lower hum noise compared to core adhesive coils, enhancing performance in sensitive applications.
