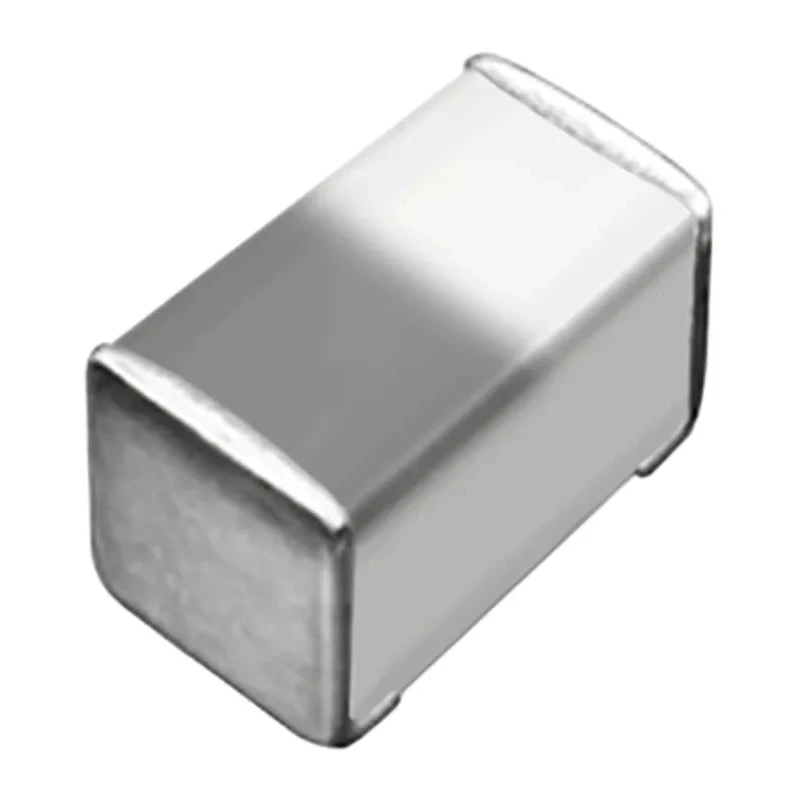

TDK 700 pH 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 1.2 A Idc MHQ1005P0N7BT000

TDK MHQ1005P0N7BT000 is a high-frequency 0402 shielded multilayer surface mount inductor featuring a 700 pH inductance value and a ceramic core. This inductor is specifically engineered for demanding electronic applications requiring high Q-factor and fine inductance increments, attributed to its multilayer ceramic construction.

The unique ceramic material and configuration of this series enable performance characteristics that rival those of air core wound inductors, delivering exceptional quality and stability in signal conditioning.

Designed to sustain a maximum DC current of 1.2 A and support a maximum self-resonant frequency of 18.3 GHz, this component is suitable for use in high-frequency modules such as power amplifiers, voltage-controlled oscillators, front-end modules, and wireless communication systems.

The MHQ1005P0N7BT000 series operates reliably across a wide temperature range from -55°C to 125°C, ensuring durability in various environmental conditions.

Its compact 0402 package with precise dimensions (1 mm length, 0.6 mm depth, and 0.5 mm height) and shielded multilayer design reduce electromagnetic interference and optimize board space, facilitating efficient surface mounting on PCBs.

Typical applications include mobile communication devices like smartphones and tablets, as well as Bluetooth, W-LAN, ultra-wideband (UWB) technology, tuners, and other related high-frequency circuits.

Provides high Q characteristics equivalent to air core wound inductors. Features fine increments of inductance with multilayer ceramic construction. Capable of handling a maximum DC current of 1.2 A. Offers an inductance tolerance of ±0.1 nH ensuring precise performance.

Supports a maximum self-resonant frequency of 18.3 GHz suitable for high frequency circuits. Designed with a shielded construction to minimize electromagnetic interference. Operates effectively in temperatures ranging from -55°C to 125°C.

Compact 0402 package size with dimensions: 1 mm length, 0.6 mm depth, and 0.5 mm height. Ideal for applications including smartphones, tablets, Bluetooth, W-LAN, UWB modules, tuners, and other mobile communication devices.

Constructed with a ceramic core and surface mount termination style for PCB assembly. This product is manufactured in Japan and complies with RoHS standards, ensuring environmentally friendly production. Explore more high-quality Surface Mount Inductors and electronic components at EnvMart to meet your industrial, laboratory, construction, and communication equipment needs.
