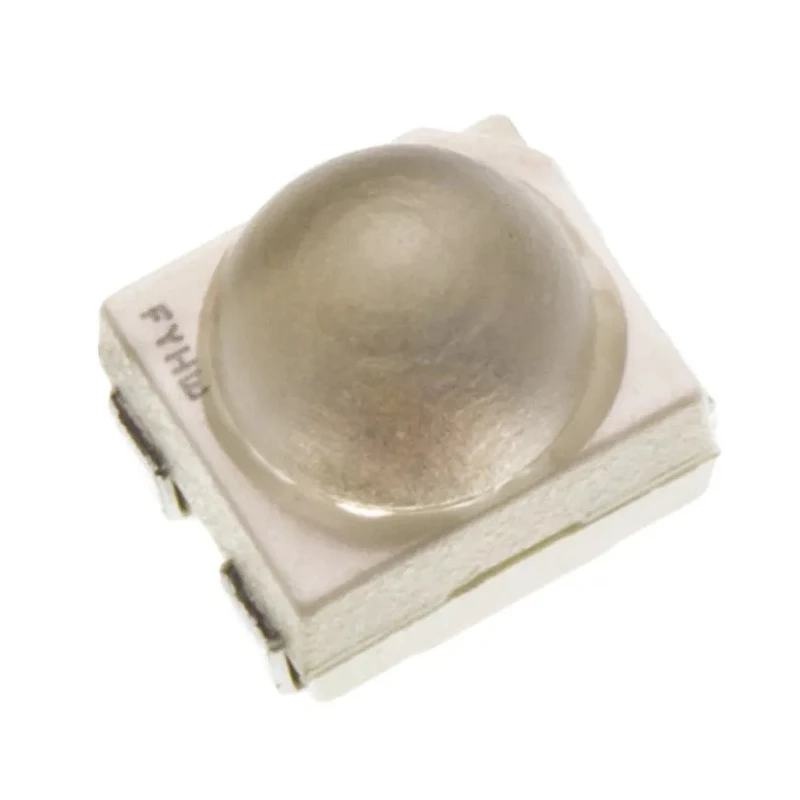

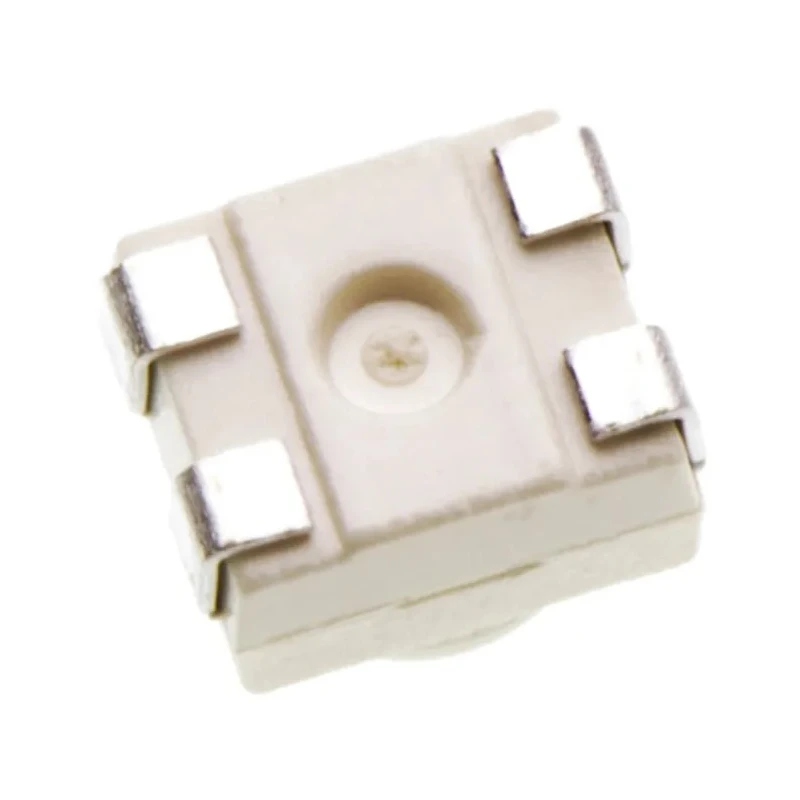

ams OSRAM Power TOPLED Lens 860 nm IR LED PLCC 4 Surface Package SFH 4259

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Power TOPLED Lens 860 nm IR LED PLCC 4 Surface Package SFH 4259

Name: ams OSRAM Power TOPLED Lens 860 nm IR LED PLCC 4 Surface Package SFH 4259
Brand: ams OSRAM
SKU: 191441
Price: 0.6 USD
Availability: InStock



Category IR LED Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Dimensions	3 x 3.4 mm
Wavelength	850nm or 860nm
Model	SFH 4259
Packaging	Tape & Reel
Mount Type	Surface
Series	Power TOPLED Lens
Number Of Leds	1
Package Type	PLCC 4
Standards/Approvals	IEC 60825-1 and IEC 62471
Number of Pins	4
Lens Shape	Dome
Automotive Standard	AEC-Q100 Rev C
Maximum Supply Voltage	2.4V
Peak Wavelength	860nm
Radiant Flux	70mW
Angle of half intensity	25°
Radiant Intensity	55mW/sr
Variety of lens types	flat top and dome

Key Features

This IR LED features a dome lens shape optimized for focused IR illumination.
The device operates at a maximum supply voltage of 2.4 V ensuring efficient power consumption.
It has a radiant flux of 70 mW supporting strong IR light emission.
The half intensity angle is 25°, suitable for targeted IR illumination applications.
The package type is PLCC 4 with 4 pins for secure surface mounting.
Designed to meet automotive standard AEC-Q100 Rev C for enhanced reliability.
Standards compliance includes IEC 60825-1 and IEC 62471 ensuring safety and quality.
Ideal for IR illumination in cameras (CCTV), IR data transmission and sensor applications.

Product Description

ams OSRAM SFH 4259 is a Power TOPLED Lens 860 nm Infrared (IR) LED designed for high intensity IR emission in a compact PLCC 4 surface-mount package. Operating at a maximum supply voltage of 2.4 V, this LED emits strong radiant flux of 70 mW with a radiant intensity of 55 mW/sr. The device features a dome-shaped lens with a half intensity angle of 25°, facilitating focused IR illumination performance suitable for various industrial and commercial applications.

Manufactured to comply with automotive standard AEC-Q100 Rev C and IEC safety standards IEC 60825-1 and IEC 62471, the SFH 4259 ensures reliability and safety in demanding environments. The compact dimensions of 3 x 3.4 mm allow easy integration on PCBs for surface mounting, making it ideal for compact devices. This IR LED finds wide usage in CCTV camera IR illumination, IR data transmission systems, and sensor technology where short switching times and high power IR emission are critical.

The Power TOPLED family offers variants with dome and flat top lenses, and the SFH 4259 model specifically features the dome lens for enhanced directional IR output. The single LED unit with four pins suits tape and reel packaging optimized for automated manufacturing processes.

This IR LED is surface mountable in PLCC 4 package form. Radiant flux rating of 70 mW ensures powerful IR output. Maximum supply voltage of 2.4 V supports efficient electrical operation. Lens is dome-shaped, providing a concentrated beam with 25° half intensity angle.

Meets automotive and international standards for quality and safety. Compact footprint of 3 x 3.4 mm facilitates minimal PCB space usage. Applications include IR CCTV illumination, sensor tech, and IR data transmission.

This product is part of the ams OSRAM Power TOPLED series, known for short switching times and high power IR LED performance. Suitable for use in industrial, electronic components, and automotive applications.
