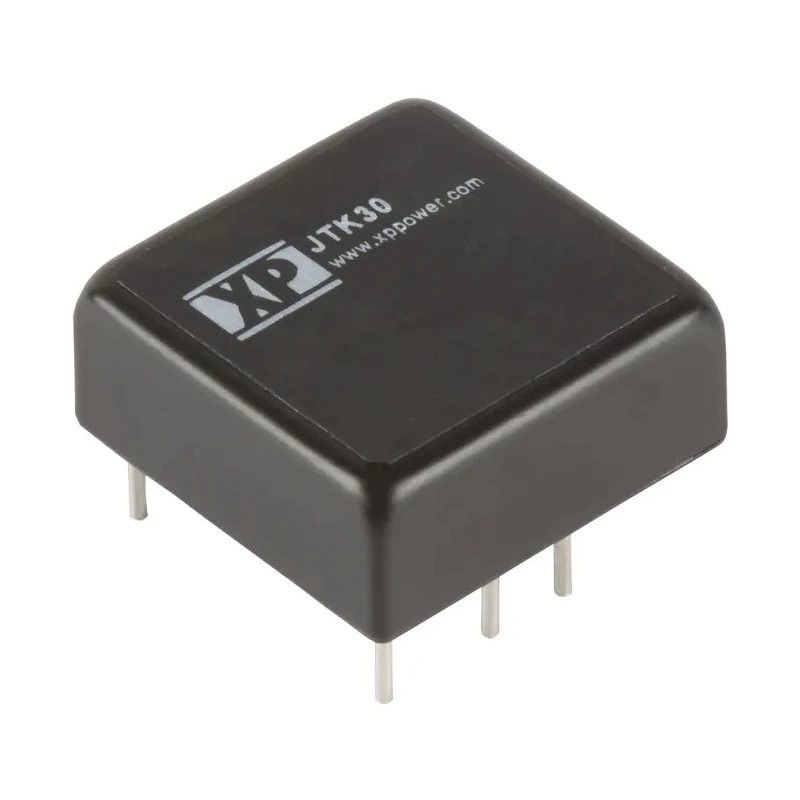

XP Power Isolated DC-DC Converter Dual Output 15 V dc ±15 V dc, 1 A, 36 V dc Input, 30 W, Through Hole, DIP Package JTK30
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTK30 DC/DC Converter, 15V dc/ 1 A, 36V d |
| Brand | XP Power |
| Efficiency | 91% |
| Length | 25.4mm |
| Model | JTK30 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTK30 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 370000h |
| Number of outputs | 2 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1A |
| Output Voltage Adjustment Range | ±13.5 V dc, ±16.5 V dc |
| Isolation Voltage | 1.6kV dc |
| Output Current 2 | -1A |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
Key Features
- Provides dual isolated outputs of +15 V dc and -15 V dc at 1 A current each.
- Supports a wide input voltage range from 9 V dc minimum to 36 V dc maximum.
- Features high efficiency up to 91% for energy-efficient operation.
- Compact DIP through-hole package with dimensions 25.4 mm x 25.4 mm x 10.4 mm.
- Operates reliably across a wide temperature range from -40°C to +100°C maximum.
- Includes 1600 V dc isolation voltage for safety and signal integrity.
- Designed with 6-pin configuration suitable for PCB mounting.
- MTBF of 370,000 hours ensures high reliability in long-term industrial applications.
Product Description
XP Power JTK30 series DC-DC converters are high-quality isolated power modules offering dual output voltages of +15 V dc and -15 V dc with 1 A current capacity per output. These compact converters support a wide input range from 9 V to 36 V dc and deliver up to 30 W output power within a small DIP through-hole package measuring 25.4 mm length, 25.4 mm width, and a depth of 10.4 mm.
With an isolation voltage of 1600 V dc, these converters ensure safety and signal integrity in harsh industrial and electronic environments. Featuring an efficiency rating up to 91%, the JTK30 series reduces energy loss during operation, making it suitable for power-sensitive applications.
The devices operate effectively within an ambient temperature range of -40°C to +100°C, ensuring reliable performance in demanding thermal conditions. The six-pin DIP package supports easy mounting on printed circuit boards via through-hole technology.
The JTK30’s Mean Time Between Failures (MTBF) of 370,000 hours highlights the product's robust design for extended maintenance-free use in various fields including industrial automation, telecommunications, and instrumentation.
Dual isolated output voltages ±15 V dc at 1 A current each. Wide input voltage range 9 V to 36 V dc. High operating efficiency up to 91%. Compact DIP through-hole package (25.4 × 25.4 × 10.4 mm). Operational temperature range from -40°C to +100°C.
1600 V dc isolation voltage for safety and noise reduction. 6-pin configuration for PCB mounting. MTBF of 370,000 hours for reliable long-term usage.
This DC-DC converter is well-suited for industrial machinery, telecommunications systems, laboratory instrumentation, and other commercial electronic devices requiring stable isolated dual outputs. The robust thermal and electrical specifications enable use in demanding environments.
Explore more DC/DC Converters in the Electronics & Electricals category on EnvMart for tailored power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 36 V dc.
This unit provides dual isolated output voltages of +15 V dc and -15 V dc, each with a current capacity of 1 A.
The efficiency rating of this DC-DC converter is up to 91%.
It operates reliably across a wide temperature range from -40°C to +100°C.
The DIP package dimensions are 25.4 mm in length, 25.4 mm in width, and 10.4 mm in depth.
The isolation voltage for this model is 1600 V dc, ensuring safety and signal integrity.
This model features two outputs.
The MTBF for this DC-DC converter is 370,000 hours, indicating reliable long-term usage.
The minimum input voltage required for this converter is 9 V dc.
It supports through-hole mounting with a 6-pin configuration.
The maximum output power of this unit is 30 W.
This DC-DC converter is suitable for industrial machinery, telecommunications systems, and laboratory instrumentation.
