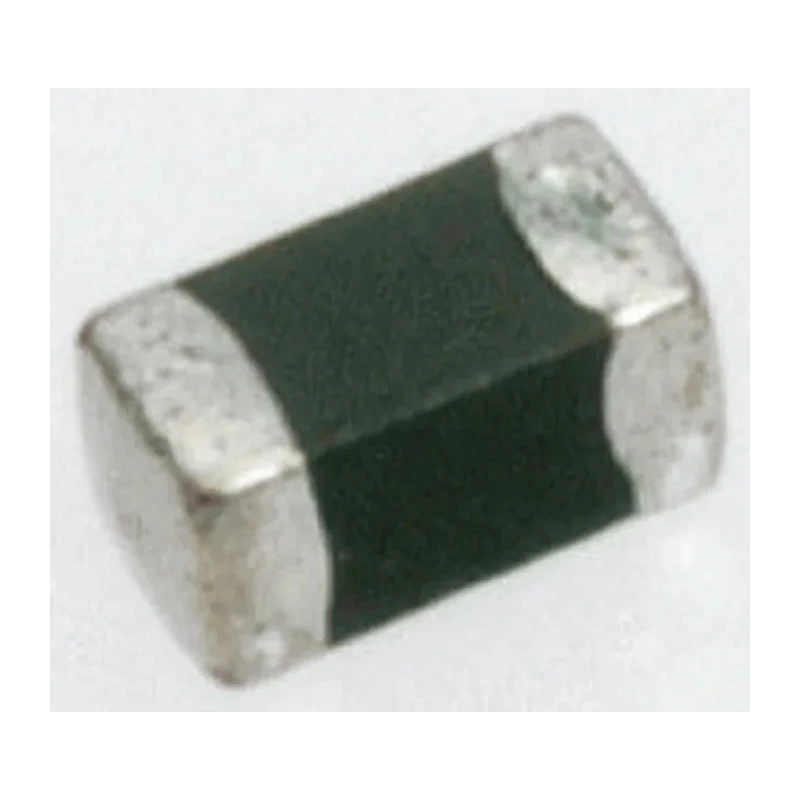

TDK 1-Element Bi-Directional TVS Diode 2 kW Surface Mount 2-Pin 0603 Package B72500D0150A060

TDK B72500D0150A060 is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode optimized for high-performance Electrostatic Discharge (ESD) protection in electronic circuits. It features a peak pulse power dissipation of 2 kW allowing it to effectively clamp voltage spikes and protect sensitive components from transient events.

This device is supplied in a compact 0603 surface mount package with two pins, suitable for automated PCB assembly processes. Its single diode configuration with a minimum breakdown voltage of 22 V and a maximum reverse standoff voltage of 16 V ensures reliable conduction during voltage surges.

Designed for industrial, automotive, telecommunication, consumer electronics, and manufacturing applications, this TVS diode provides superior ESD protection complying with IEC 61000-4-2 Level 4 standards. The diode operates reliably within a temperature range of -40°C to +85°C, making it suitable for harsh operating environments.

Key features include low maximum reverse leakage current of 10 μA, a maximum peak pulse current rating of 30 A, and lead-free nickel barrier terminations which contribute to environmental compliance and soldering reliability. The device’s compact dimensions of 1.75 mm length, 0.9 mm width, and 0.9 mm height help in dense circuit board layouts.

This TVS diode efficiently routes all ESD events, both positive and negative, safely to ground, thereby safeguarding circuitry from damage. It is ideal for use in sensitive electronic equipment needing robust transient voltage protection, including industrial control systems, communication devices, and power supply modules.

Set contains one TDK B72500D0150A060 TVS diode in a 0603 surface mount package ready for PCB integration. Single diode configuration with bi-directional surge protection capability. Minimum breakdown voltage of 22 V ensures reliable voltage clamp during transient events.

Surface mount type with a 2-pin 0603 package footprint. Peak pulse power dissipation rating of 2 kW for effective transient suppression. Operating temperature range from -40°C to 85°C facilitates robust performance. Compliant with IEC 61000-4-2 Level 4 for high ESD robustness.

Low maximum reverse leakage current of 10 μA improves efficiency and reliability. Compact dimensions of 1.75 mm length, 0.9 mm width, and 0.9 mm height. Lead-free nickel barrier terminations ensuring RoHS compliance. Designed to safely route both positive and negative ESD events to ground.

For users requiring dependable transient voltage suppression with minimal circuit footprint, the TDK B72500D0150A060 is an excellent solution. Browse more TVS Diodes and semiconductor devices at EnvMart for various industrial and commercial applications.
