| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 0.9mm |
| Length | 1.75mm |
| Model | B72500D0050A060 |
| Width | 0.9mm |
| Mount Type | Surface |
| Series | B7 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 19V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5.6V |
| Peak Pulse Power Dissipation Pppm | 1kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 30A |
| Maximum Reverse Leakage Current | 1μA |

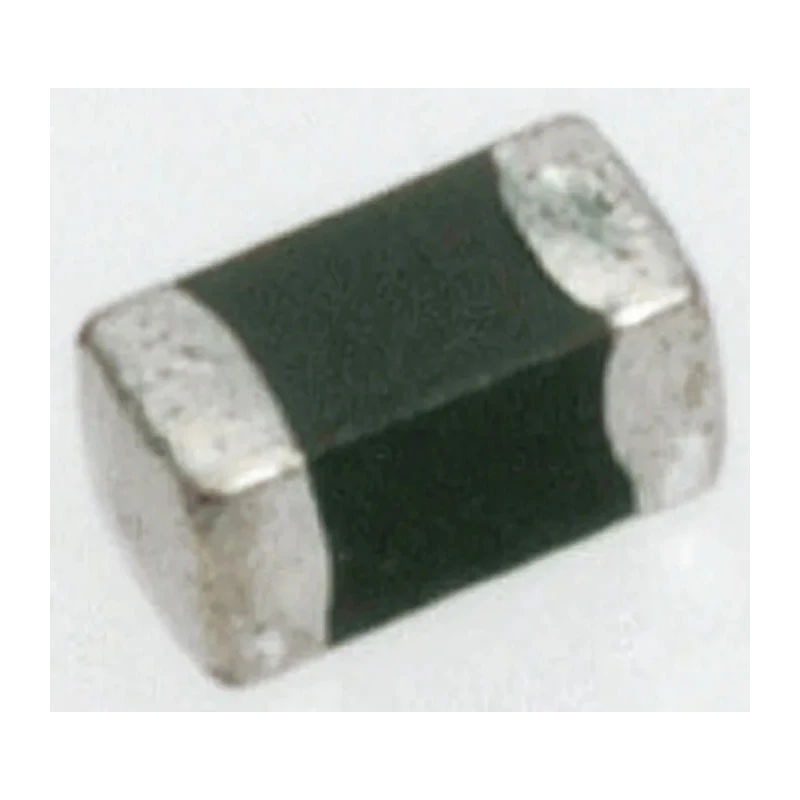

TDK B72500D0050A060 is a 1-element bi-directional transient voltage suppression (TVS) diode designed for surface mount technology applications requiring high ESD robustness and reliable protection.
This diode provides a peak pulse power dissipation of 1 kW, capable of clamping voltage surges at 19 V while maintaining a minimum breakdown voltage of 6.4 V. With a maximum reverse stand-off voltage of 5.6 V and maximum peak pulse current of 30 A, it effectively protects sensitive electronic circuits from transient voltage spikes.
The compact SOD-523 package (1.75 mm x 0.9 mm x 0.9 mm) allows installation within tight PCB layouts. The diode is rated for performance in wide temperature ranges from -40°C to 85°C, supporting a broad array of industrial, electronic, and consumer applications.
Its lead-free nickel barrier terminations ensure compliance with environmental standards, and it is optimized for electrostatic discharge protection exceeding 3000 ESD pulses per IEC 61000-4-2 Level 4.
This TVS diode is suitable for use in industries such as telecommunications, automotive electronics, consumer devices, and industrial control systems demanding high reliability and transient voltage protection.
The diode features a single element with bi-directional configuration. Designed for protection against electrostatic discharge and other transient voltage spikes. Offers minimum breakdown voltage of 6.4 V and clamping voltage of 19 V.
Operates within a temperature range from -40°C to 85°C for reliable performance. Compact SOD-523 surface mount package measuring 1.75 mm length, 0.9 mm width and height. Maximum peak pulse current is 30 A, suitable for robust ESD safeguarding.
Lead-free nickel barrier terminations ensure environmental compliance. Test current rating of 1 mA confirms its operational stability. Explore more semiconductor TVS Diodes and protective electronic components on EnvMart to fulfill your industrial and manufacturing needs.
