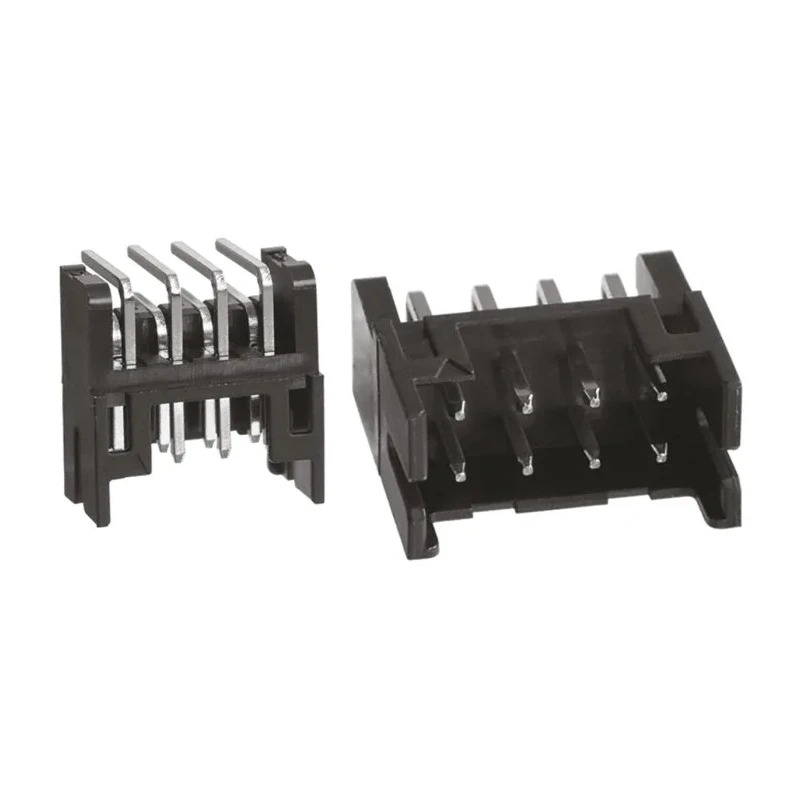

Hirose DF11 Series Right Angle Through Hole PCB Header, 8 Contacts, 2 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF11 Series Right Angle Through Hole PCB Header, 8 Contacts, 2 mm Pitch, 2 Row, Shrouded

Name: Hirose DF11 Series Right Angle Through Hole PCB Header, 8 Contacts, 2 mm Pitch, 2 Row, Shrouded
Brand: Hirose
SKU: 126664
Price: 0.56 USD
Availability: InStock



Category PCB Connectors Brand Hirose Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	Hirose
Orientation	Right Angle
Current	2A
Model	DF11
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	DF11
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

This PCB header features a compact 2.00 mm pitch with a double-row contact configuration.
The right angle, through hole mount type allows secure and reliable PCB connections.
Constructed with polyamide housing and brass contacts plated with tin for durability.
Designed with guide ribs and a locking mechanism to prevent mismating and ensure secure mating.
Supports a current rating of 2A and a voltage rating of 250V for reliable signal transmission.
Operating temperature range from -30°C to 85°C suits diverse industrial environments.
Compatible with both wire-to-board and board-to-board connector systems.

Product Description

Hirose DF11-8DP-2DS(24) is a right angle through hole PCB header connector from the DF11 series, featuring 8 contacts with a 2 mm pitch arranged in 2 rows with a shrouded housing.

This connector is engineered for space-saving in PCB applications, offering a compact double-row design within a 5 mm depth, allowing two rows of contacts to occupy the space of a single row connector.

The robust polyamide housing includes guide ribs to prevent incorrect insertion and twisting during mating, complemented by a locking mechanism that guarantees a secure connection to the connector housing.

The brass contacts are plated with tin to ensure reliable conductivity and resistance to corrosion. The through hole mount design enhances mechanical stability on the PCB.

Rated for a current of 2A and voltage up to 250V, this connector operates within temperatures from -30°C to 85°C, making it suitable for various electronic and industrial applications.

It supports both wire-to-board and board-to-board connector system compatibility, making it ideal for use in digital cameras, LCD displays, car navigation systems, access control units, measurement devices, and other electronic portable equipment requiring multiple signals in a space-limited environment.

This PCB header features a compact 2.00 mm pitch with a double-row contact configuration. The right angle, through hole mount type allows secure and reliable PCB connections. Constructed with polyamide housing and brass contacts plated with tin for durability.

Designed with guide ribs and a locking mechanism to prevent mismating and ensure secure mating. Supports a current rating of 2A and a voltage rating of 250V for reliable signal transmission. Operating temperature range from -30°C to 85°C suits diverse industrial environments.
