TDK 1-Element Bi-Directional TVS Diode 1 kW, 2-Pin SOD-523 B72500D0050A060

Free Delivery in India | Lowest Global Shipping Charges

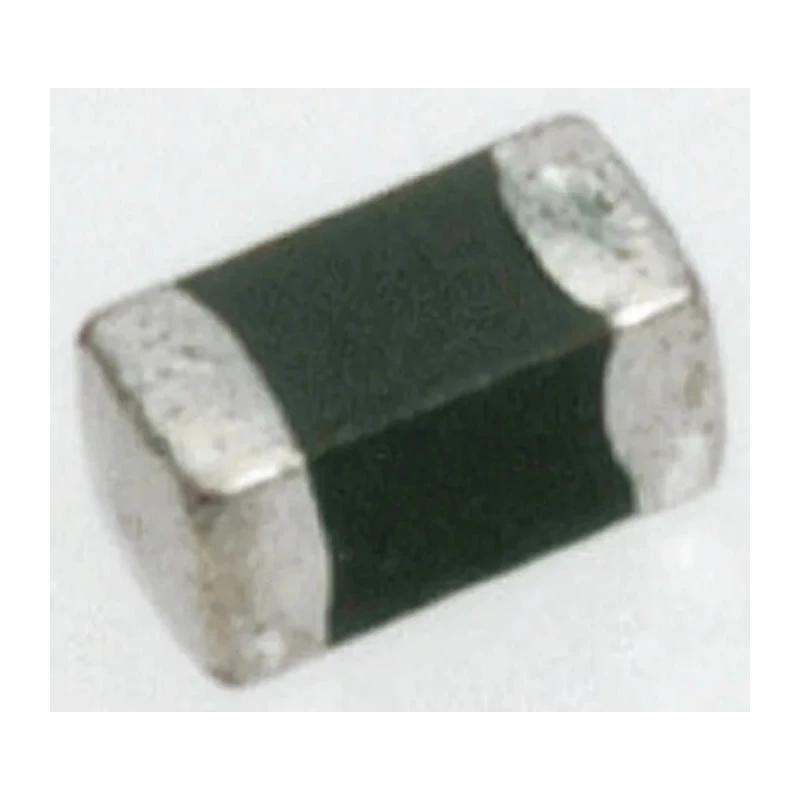

TDK 1-Element Bi-Directional TVS Diode 1 kW, 2-Pin SOD-523 B72500D0050A060



Category TVS Diode Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	0.9mm
Length	1.75mm
Model	B72500D0050A060
Width	0.9mm
Mount Type	Surface
Series	B7
Maximum Operating Temperature	85°C
Package Type	SOD-523
Minimum Operating Temperature	-40°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	19V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	6.4V
Maximum Reverse Stand-off Voltage Vwm	5.6V
Peak Pulse Power Dissipation Pppm	1kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	30A
Maximum Reverse Leakage Current	1μA

Key Features

Bi-directional diode configuration protects circuits from transient voltage spikes.
Surface mount device suitable for automated PCB assembly.
Peak pulse power dissipation rating of 1 kilowatt ensures robust transient suppression.
Clamping voltage of 19 volts protects sensitive components effectively.
Minimum breakdown voltage of 6.4 volts with maximum reverse stand-off voltage of 5.6 volts.
Operates reliably in temperatures ranging from -40°C to 85°C.
Compact dimensions of 1.75 mm length, 0.9 mm width, and 0.9 mm height.
Designed to meet IEC 61000-4-2 Level 4 ESD protection standards.

Product Description

TDK B72500D0050A060 is a high-performance 1-Element Bi-Directional Transient Voltage Suppression (TVS) Diode designed for protecting sensitive electronic equipment from voltage transient surges. It features a single diode configuration in a compact surface-mount SOD-523 package, rated for peak pulse power dissipation of 1 kW, making it highly effective for protecting circuits against ESD and other transient events.

This TVS diode supports bi-directional voltage suppression, making it ideal for use in applications where voltage transients can occur in either polarity. It offers a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5.6 V, with a clamping voltage of 19 V, offering reliable protection for a range of voltage-sensitive components.

The device operates over a wide temperature range from -40°C to 85°C, ensuring stable and robust performance in demanding environments. Its physical dimensions (1.75 mm length, 0.9 mm width, and 0.9 mm height) and 2-pin configuration make it suitable for automated PCB assembly through surface mounting.

TDK B7 series TVS diodes are known for high ESD robustness, capable of enduring at least 3000 ESD pulses according to IEC 61000-4-2 Level 4 standards. Lead-free nickel barrier terminations contribute to environmental sustainability without compromising performance. This product is used in industrial electronics, telecommunications, consumer electronics, and automotive applications requiring reliable voltage transient protection.

Bi-directional diode configuration for transient voltage suppression. Rated peak pulse power dissipation of 1 kW for heavy transient conditions. Compact SOD-523 surface-mount package for space-saving PCB design. High reliability over temperature range from -40°C to 85°C.

Compliance with IEC 61000-4-2 Level 4 ESD protection standards. Lead-free terminations for RoHS compliance and environmental safety. Explore our extensive range of semiconductor TVS Diodes on EnvMart for your industrial, telecommunications, and electronics manufacturing needs.
