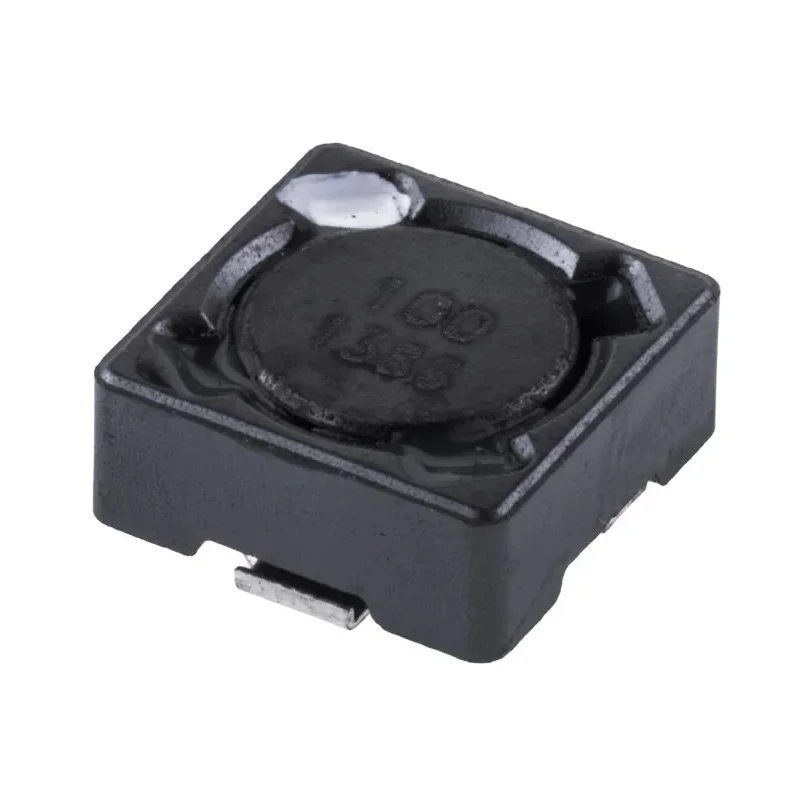

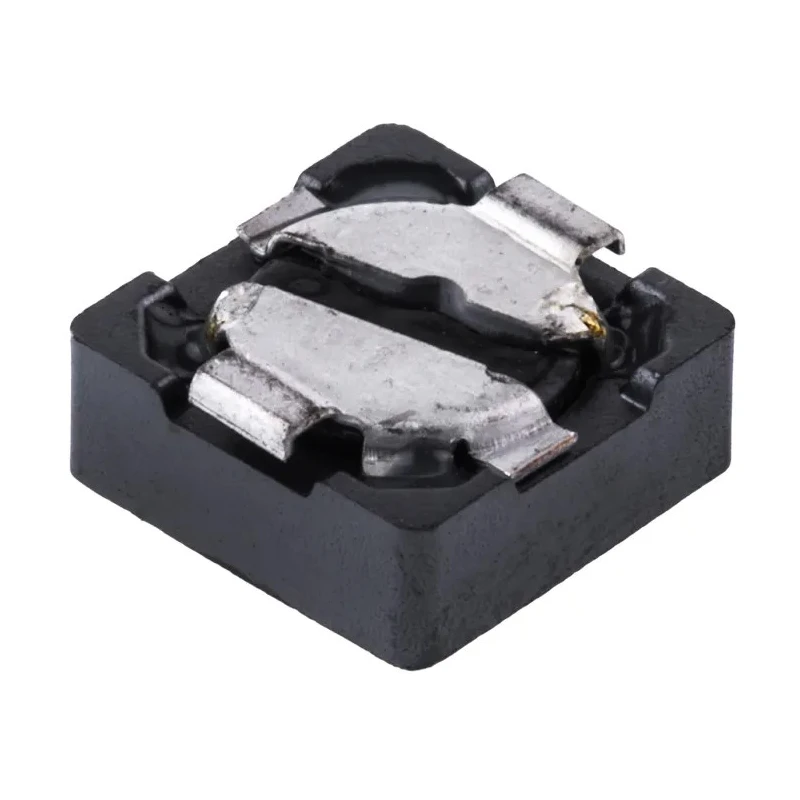

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 1.7 A Idc B82472G4103M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4103M000 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 1.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 80mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded ferrite core reduces electromagnetic interference effectively.
- Wirewound construction ensures stable and reliable inductance performance.

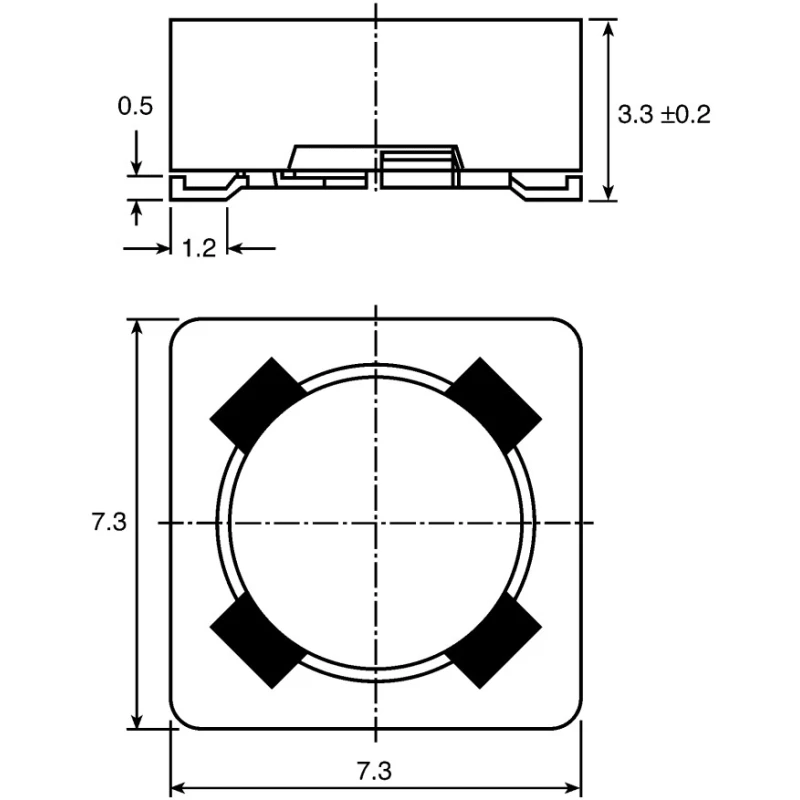

- Compact surface mount design with dimensions 7.3 mm length, 3.3 mm height, and 7.3 mm depth.
- Operates within temperature range of -55°C to 125°C, suitable for various industrial applications.
- Features solder termination style for secure PCB installation.
- Compliant with RoHS standards and lead-free tinned terminals.
- Maximum DC resistance is 80 mΩ, optimizing power efficiency.
- Packaging provided in tape and reel format, facilitating automated assembly.
Product Description
TDK B82472G4103M000 is a shielded wirewound surface mount inductor featuring a ferrite core, designed for industrial and electronic component applications. This inductor provides a nominal inductance of 10 μH with ±20% tolerance, supporting a maximum DC current rating of 1.7 A. It utilizes a magnetically shielded ferrite core combined with enamel copper wire winding, ensuring effective suppression of electromagnetic interference and stable inductive performance.
The compact dimensions of 7.3 mm length, 3.3 mm height, and 7.3 mm depth enable easy integration in densely populated circuit boards. Operating within a broad temperature range from -55°C to 125°C, this component is suitable for automotive electronics, dc-dc converters, filtering supply voltages, and other industrial electronics applications.
The inductor’s solder termination style promotes strong and reliable PCB attachment. Additionally, it complies with RoHS regulations and features lead-free tinned terminals for environmentally friendly usage. With a maximum DC resistance of 80 mΩ, this element ensures efficient current flow with minimum losses.
Packaged in tape and reel format, this surface mount inductor supports efficient automated assembly processes in manufacturing environments. Magnetically shielded ferrite core reduces electromagnetic emissions effectively.
Wirewound construction provides consistent inductance and reliability. Wide operating temperature from -55°C to 125°C suits harsh environments. Compact size facilitates high-density PCB assembly. Solder termination ensures secure mounting and excellent electrical contact.
RoHS compliant and lead-free, supporting green manufacturing requirements. Low DC resistance of 80 mΩ enhances efficiency and reduces heat generation. Tape and reel packaging aids automated pick-and-place manufacturing.
Ideal for industrial, automotive, and power electronics sectors, the B82472G4103M000 model is a versatile Surface Mount Inductor offering reliable performance and environmental compliance. Explore additional TDK electronic components and inductors on EnvMart to meet your specialized application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 10 μH with a tolerance of ±20%.
This inductor supports a maximum DC current rating of 1.7 A.
The dimensions of this unit are 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth.
The maximum DC resistance is 80 mΩ, which helps optimize power efficiency.
It operates within a temperature range of -55°C to 125°C, making it suitable for various industrial applications.
The inductor features a solder termination style for secure PCB installation.
Yes, it complies with RoHS standards and features lead-free tinned terminals.
The core material used in this inductor is ferrite, which aids in reducing electromagnetic interference.
It is packaged in tape and reel format, facilitating automated assembly processes.
This model has a wirewound construction, ensuring stable and reliable inductance performance.
It is suitable for automotive electronics, dc-dc converters, and filtering supply voltages, among other industrial electronics applications.
This inductor has a pin count of 2, allowing for easy integration into circuit designs.
