TDK Wirewound Surface Mount Inductor 33 μH ±20/±10% 1.8 A IDC Ferrite Core B82464A4333K000

The TDK B82464A4333K000 Wirewound Surface Mount Inductor provides highly reliable inductance of 33 μH with a ferrite core designed for efficient power supply filtering and energy storage applications in electronic circuits. This high-quality inductor supports a maximum DC current of 1.8 A, facilitating robust current handling capacity for automotive, industrial, and consumer electronics uses.

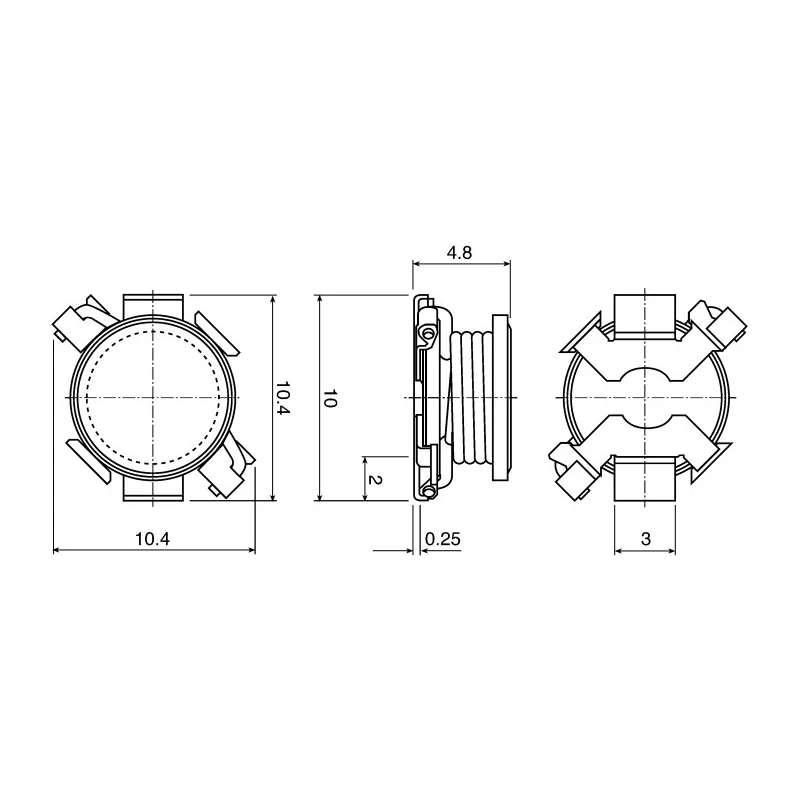

Measuring 10.4 mm in both length and depth, with a height of 4.8 mm, this surface mount device boasts a compact 10 x 10 mm SMT size, enabling integration into high-density PCB layouts. The wirewound construction combined with ferrite core material ensures low core losses and high inductance accuracy.

The inductor exhibits a stable inductance tolerance of ±20% and ±10%, allowing flexibility in design requirements. Its wide operating temperature range from -55°C to 150°C ensures dependable function under harsh thermal conditions, making it suitable for automotive AEC-Q200 standard compliant systems.

Additional technical features include a maximum DC resistance of 100 mΩ to minimize conduction losses and a maximum self-resonant frequency of 13 MHz, enabling its use in high-frequency filtering applications. The winding is welded to the terminal, providing strong mechanical and electrical connections for enhanced reliability during soldering and operation.

This RoHS-compliant inductor is ideal for use in power supply filtering, noise suppression, and EMI reduction within industrial, automotive, and electronic equipment manufacturing sectors. The B82464A4333K000 series combines stringent quality standards with application versatility, meeting demands in laboratory testing, commercial electronics assembly, and production environments.

The inductor features a maximum DC current of 1.8 A for reliable performance. Constructed with a ferrite core and wirewound design to optimize inductance and current handling. Compact dimensions with length and depth of 10.4 mm, and height of 4.8 mm.

Inductance tolerance is ±20% and ±10%, ensuring stable performance within specified limits. Wide operating temperature range from -55°C to 150°C for versatile applications. Complies with RoHS standards and automotive AEC-Q200 qualification.

Maximum DC resistance of 100 mΩ minimizes power loss. Termination style uses winding welded to terminal for robust soldering. Maximum self-resonant frequency is 13 MHz, suitable for high-frequency circuits. Browse the Electronics & Electricals category at EnvMart for more high-quality inductors and passive components from leading manufacturers like TDK.
