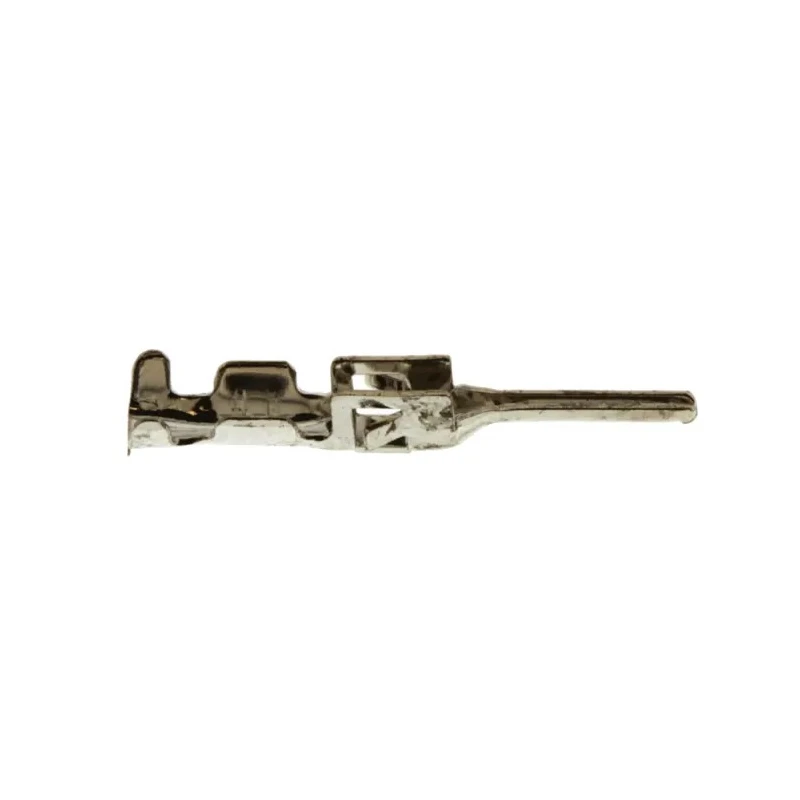

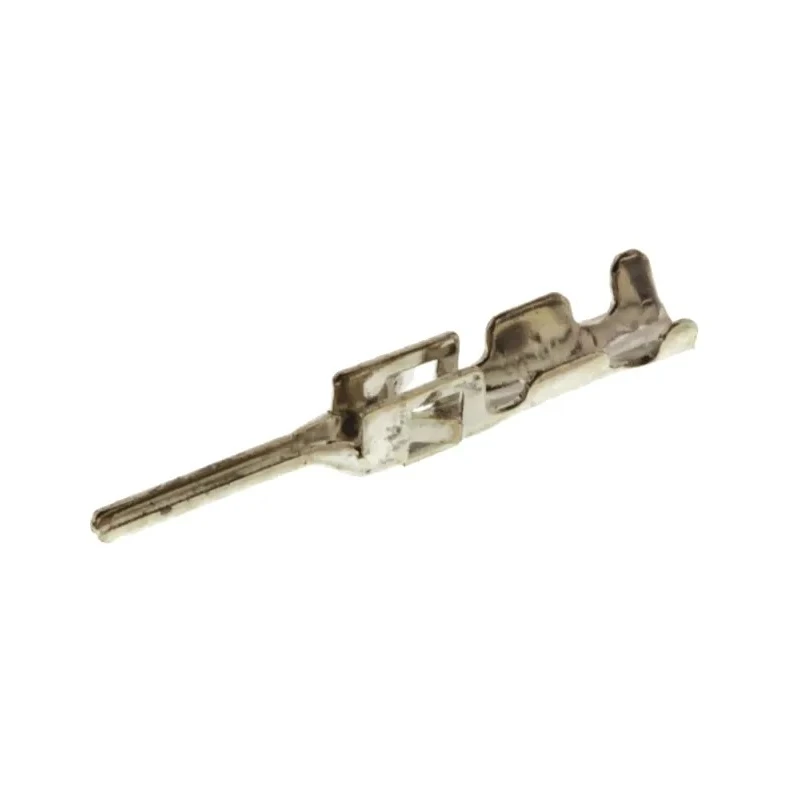

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal 5A Current 24-20 AWG 1-794612-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Contact Plating | Bright Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with Micro MATE-N-LOK connector housings.
- Constructed with phosphor bronze contact material for durability.
- Features bright tin plating for corrosion resistance.
- Supports wire sizes from 0.2 mm² (24 AWG) to 0.5 mm² (20 AWG).
- Designed with a locking lance mechanism for secure retention in connector housing.
- Maximum operating temperature is 105°C, with minimum operational capability down to -40°C.
- Termination type is crimp for efficient wire attachment.
- Maximum contact resistance of 20 milliohms ensures minimal signal loss.
Product Description
TE Connectivity 1-794612-0 Micro MATE-N-LOK Series male crimp terminal is engineered for high-quality electrical connections within the Micro MATE-N-LOK connector system. This crimp contact supports wire sizes from 24 AWG minimum to 20 AWG maximum and handles currents up to 5 amperes, making it ideal for various industrial and consumer electronic applications.
Constructed from phosphor bronze, the contact material offers excellent mechanical strength and conductivity. The bright tin plating provides superior corrosion resistance, ensuring longevity and performance in demanding environments. The dual beam contact design guarantees reliable electrical connection, while the locking lance mechanism secures the terminal firmly in the connector housing to prevent accidental disconnection.
Operating temperature ranges from -40°C to 105°C, ensuring stable operation under diverse environmental conditions. The crimp termination type facilitates quick, dependable cable attachment with minimal signal loss, supported by a maximum contact resistance of 20 milliohms.
This Crimp Terminal fits within the Micro MATE-N-LOK 3mm connector system, a compact and versatile wire-to-wire and wire-to-board interconnection solution widely used in electronics, automation, lighting, and consumer devices. The system is noted for its low-profile connectors with a 3mm pitch centerline and 4.7mm mating height, suitable for applications requiring space-saving yet reliable connectors.
Compatible with Micro MATE-N-LOK connector housings. Phosphor bronze contact material ensures durability and conductivity. Bright tin plating protects against oxidation and corrosion. Wire size range from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²) with insulation up to 1.52 mm diameter.
Locking lance mechanism secures contact retention in housing. Maximum current rating of 5 amps. Operation temperature range from -40 to 105 degrees Celsius. Dual beam contact design ensures electrical reliability. Low contact resistance of 20 milliohms maximizes performance.
Ideal for electronic, industrial, and consumer applications. Explore EnvMart for more electronic components and connectors from TE Connectivity and other leading brands to support your projects with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 5 amperes.
It supports wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²).
The operating temperature range is from -40°C to 105°C.
The contacts are constructed from phosphor bronze, providing excellent mechanical strength and conductivity.
It features a locking lance mechanism that secures the terminal firmly in the connector housing to prevent accidental disconnection.
This model uses a crimp termination type for efficient wire attachment.
The contacts are plated with bright tin to provide superior corrosion resistance.
Yes, it is compatible with Micro MATE-N-LOK connector housings.
The maximum contact resistance is 20 milliohms, ensuring minimal signal loss.
This crimp terminal is male gender.
The country of origin for this crimp terminal is India.
This terminal is suitable for various industrial and consumer electronic applications.
